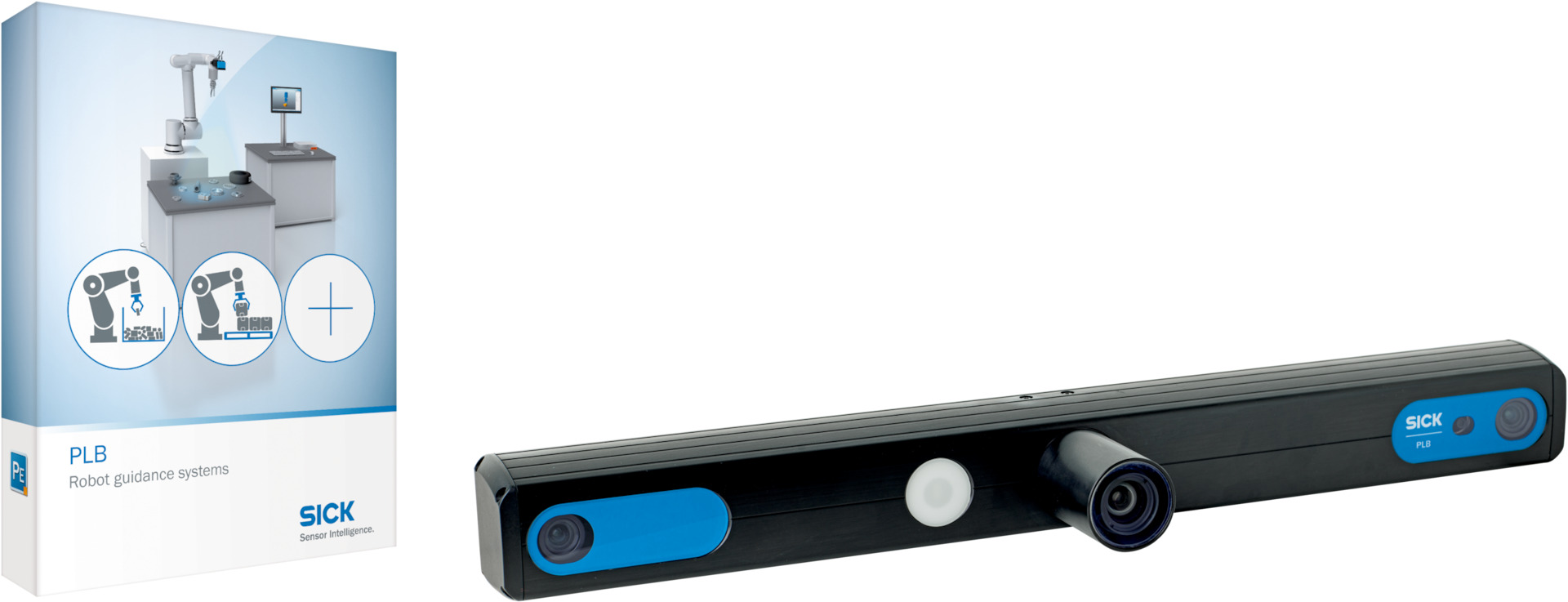

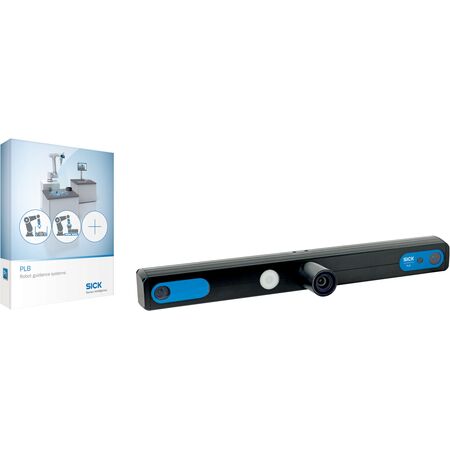

3D Snapshot Camera PLB-51A0601 | 5 MP 3D Sensor | LED Blue Light Source | IP65/IP67 Rated | by SICK
The 3D Snapshot Camera PLB-51A0601 features advanced 3D snapshot technology with high-resolution 5 MP 3D and 2 MP 2D color sensors, making it ideal for robot guidance and position determination. With a medium field of view and fast part localization time, this camera is factory calibrated for both simple and complex part shapes, ensuring precision in industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: PLB-521
- Field of view: Medium
- Classification: Spare
- Camera type: 3D snapshot
- Example volume of view: 950 mm x 1000 mm x 600 mm
- Image resolution: 0.5 mm to 0.8 mm depending on distance
- Light source: LED, blue, 465 nm
- LED class: Risk group 1
- 3D CAD format: IGES, STEP
- Connection type: PoE++
- Supply voltage: 24 V DC or PoE PD class 8 (90W)
- Current consumption: 10 A
- Enclosure rating: IP65 / IP67
- Part localization time: 0.1 s to 10 s typical
- Part size: approx. > 20 mm x 20 mm x 20 mm
- 2D colour sensor resolution: 2 MP (1920 px x 1200 px)
- 3D sensor resolution: 5 MP (2472 px x 2064 px)
- Ethernet: 2 ports, 1 Gbit/s camera, 10/100 Mbit/s robot
- Protocol: TCP/IP
- Electrical connection: M12 male connector, 8-pin, x-coded
- Operating temperature: 0 °C to +40 °C, non-condensing
- Shock load: 60 g / 1.9 ms, 25 g / 6 ms
- Vibration load: 30-500 Hz / 5 g
- Dimensions (H x L x W): 100mm x 506mm x 58mm
- Weight: 1.66 kg
Key Features
- 3D snapshot technology with image analysis
- Medium field of view
- LED blue light source at 465 nm, Risk group 1
- High resolution: 2 MP 2D colour sensor and 5 MP 3D sensor
- Fast part localization time from 0.1 s to 10 s
- Suitable for simple and complex part shapes
- Factory calibrated
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Robot guidance
- Position determination
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP65/IP67 rated enclosure ensures long product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK PLB-51A0601 3D Snapshot Camera is available for immediate purchase, ideal for industrial robot guidance and position determination applications.
