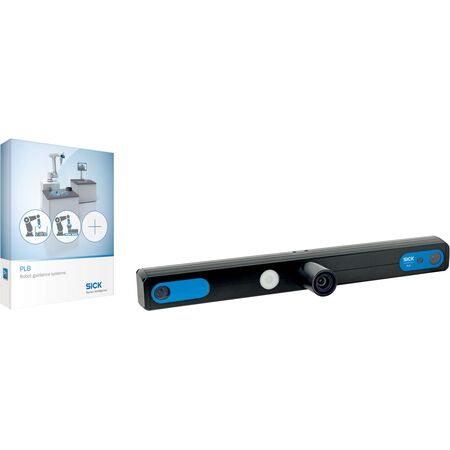

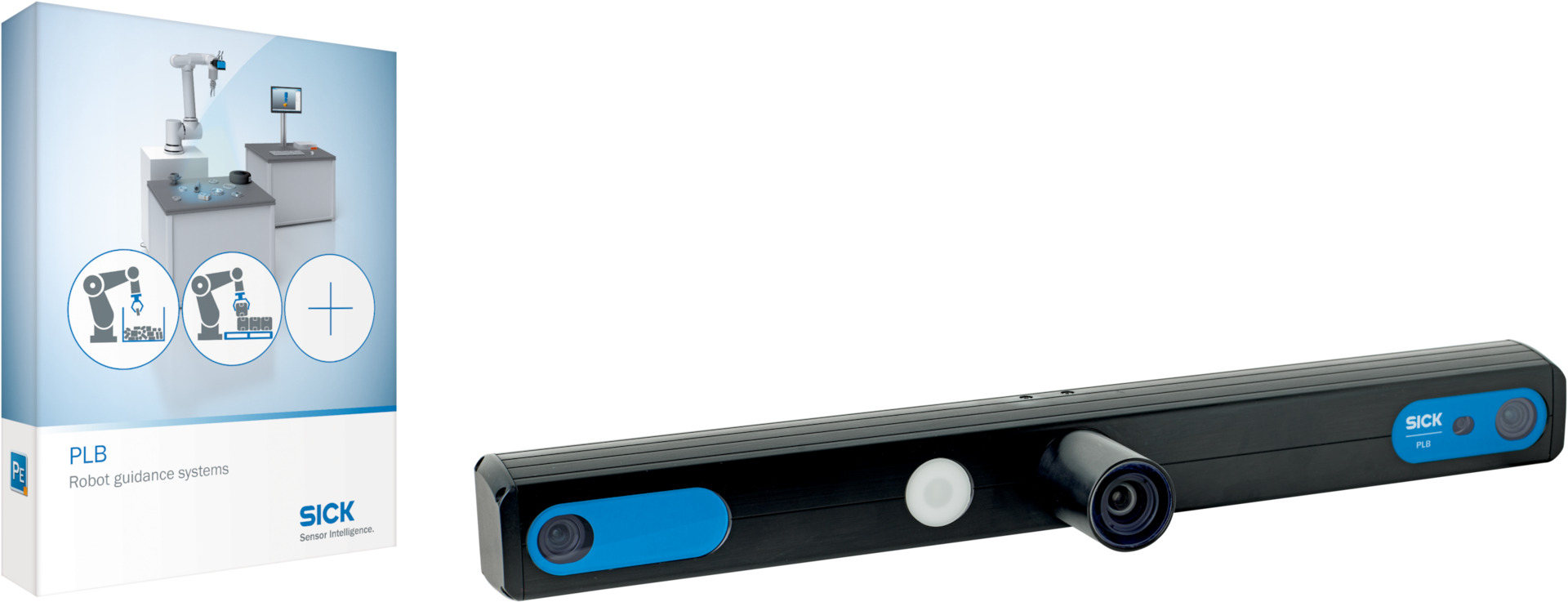

3D Snapshot Camera PLB-51A0602 | 5 MP 3D Sensor | IP65/IP67 Rated | by SICK
The 3D Snapshot Camera PLB-51A0602 features advanced 3D snapshot technology with a high-resolution 5 MP sensor, making it ideal for robot guidance and position determination. With a small field of view and fast part localization time, this camera is perfect for both simple and complex part shapes, ensuring precise image analysis in industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: PLB-521
- Field of view: Small (650 mm x 700 mm x 400 mm)
- Image resolution: 0.3 mm to 0.5 mm depending on distance
- Light source: LED, blue, 465 nm
- LED class: Risk group 1
- Connection type: PoE++
- Supply voltage: 24 V DC or PoE PD class 8 (90W)
- Current consumption: 10 A
- Enclosure rating: IP65/IP67
- Part localization time: 0.1 s to 10 s typical
- Part size: Approx. > 10 mm x 10 mm x 10 mm
- 2D colour sensor resolution: 2 MP (1920 px x 1200 px)
- 3D sensor resolution: 5 MP (2472 px x 2064 px)
- Ethernet: 2 ports, 1 Gbit/s (camera), 10/100 Mbit/s (robot)
- Protocol: TCP/IP
- Electrical connection: M12 male connector, 8-pin, x-coded
- Operating temperature: 0 °C to +40 °C, non-condensing
- Shock load: 60 g / 1.9 ms, 25 g / 6 ms
- Vibration load: 30-500 Hz / 5 g
- Dimensions (H x L x W): 100mm x 506mm x 58mm
- Weight: 1.66 kg
Key Features
- 3D snapshot technology with image analysis
- Small field of view
- LED blue light source at 465 nm, Risk group 1
- High resolution 2D colour sensor (2 MP) and 3D sensor (5 MP)
- Fast part localization time from 0.1 s to 10 s
- Suitable for simple and complex part shapes
- Factory calibrated
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper integration and compliance with electrical and safety standards.
Applications
- Robot guidance
- Position determination
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP65/IP67 rated enclosure ensures long product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK PLB-51A0602 3D Snapshot Camera is available for immediate purchase, ideal for industrial robot guidance and position determination applications.
