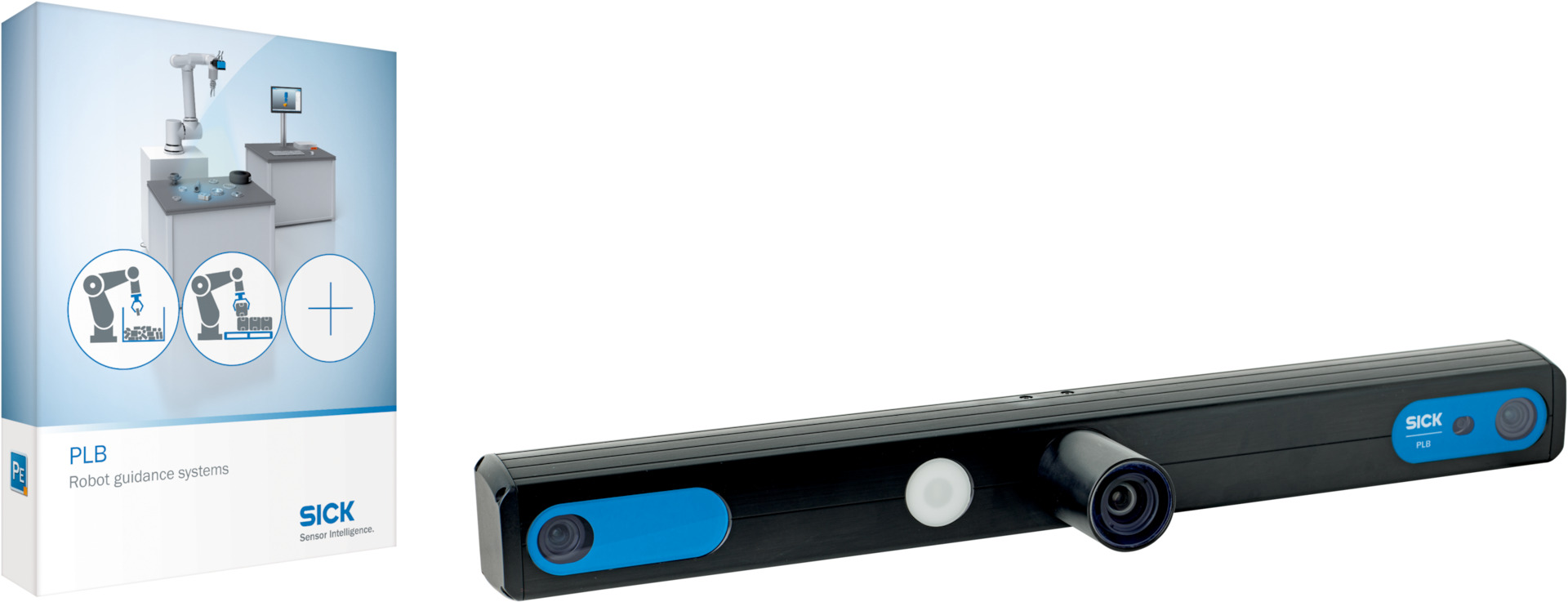

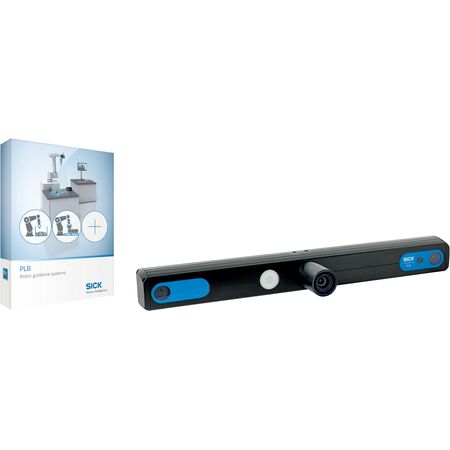

3D Snapshot Camera PLB-51A0700 | Large Field of View | 5 MP 3D Sensor | IP65/IP67 Rated | by SICK
The 3D Snapshot Camera PLB-51A0700 is designed for precise robot guidance and position determination, featuring a large field of view and high-resolution 5 MP 3D sensor. With a fast part localization time and robust IP65/IP67 enclosure, this camera is perfect for industrial applications, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: PLB-521
- Field of view: Large (900 mm x 800 mm x 800 mm)
- Image resolution: 0.5 mm to 2.1 mm depending on distance
- Light source: LED, blue, 465 nm
- LED class: Risk group 1
- 3D CAD format: IGES, STEP
- Technology: 3D snapshot, image analysis
- Connection type: PoE++
- Supply voltage: 24 V DC or PoE PD class 8 (90W)
- Current consumption: 10 A
- Enclosure rating: IP65/IP67
- Part localization time: 0.1 s to 10 s typical
- Part size: Approx. > 30 mm x 30 mm x 30 mm
- Part characteristics: Simple and complex part shapes
- 2D colour sensor resolution: 2 MP (1920 px x 1200 px)
- 3D sensor resolution: 5 MP (2472 px x 2064 px)
- Ethernet: 2 ports, camera to PC and PC to robot
- Data transmission rate: 1 Gbit/s (camera), 10/100 Mbit/s (robot)
- Protocol: TCP/IP
- Electrical connection: M12 male connector, 8-pin, x-coded
- Ambient temperature operation: 0 °C to +40 °C, non-condensing
- Shock load: 60 g / 1.9 ms, 25 g / 6 ms
- Vibration load: 30-500 Hz / 5 g
- Dimensions (H x L x W): 100mm x 506mm x 58mm
- Weight: 1.66 kg
Key Features
- Large field of view
- 3D snapshot camera type
- High resolution 2D colour sensor (2 MP)
- High resolution 3D sensor (5 MP)
- Fast part localization time (0.1 s to 10 s typical)
- IP65/IP67 rated enclosure for robust protection
- LED blue light source (465 nm), Risk group 1
- Factory calibrated
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Robot guidance
- Position determination
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP65/IP67 enclosure extends product lifespan and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK PLB-51A0700 3D Snapshot Camera is available for immediate purchase, ideal for industrial robot guidance and position determination applications.
