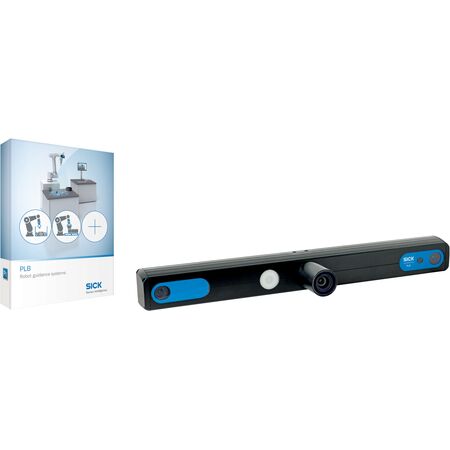

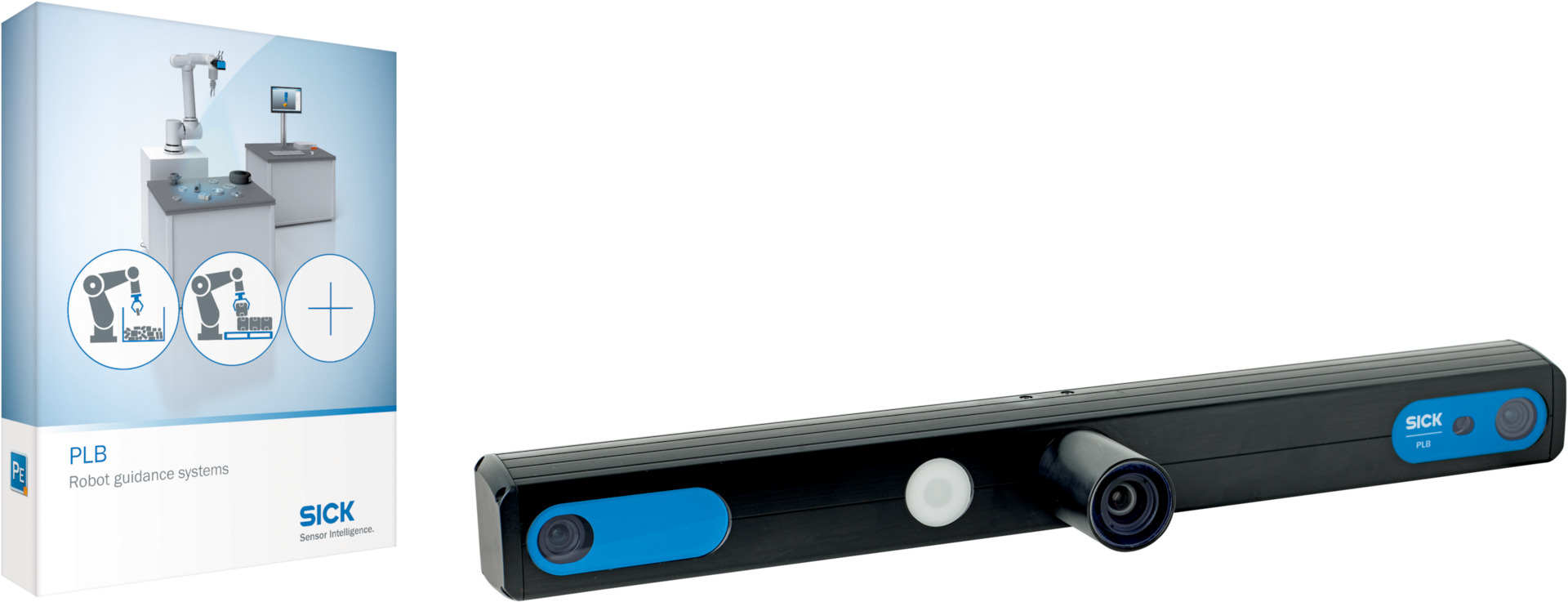

3D Snapshot Camera PLB-51A0701 | Medium Field of View | 0.5 mm to 0.8 mm Resolution | LED Blue Light Source | by SICK
The 3D Snapshot Camera PLB-51A0701 is designed for precise robot guidance and position determination. Featuring advanced 3D snapshot technology, it offers a medium field of view and high resolution ranging from 0.5 mm to 0.8 mm, making it ideal for both simple and complex part shapes. With fast part localization times and Ethernet connectivity, this camera is perfect for industrial applications requiring accuracy and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: PLB-521
- Field of view: Medium
- Classification: Secondary camera
- Camera type: 3D snapshot
- Example volume of view: 950 mm x 1000 mm x 600 mm
- Image resolution: 0.5 mm to 0.8 mm depending on distance
- Light source: LED, blue, 465 nm
- LED class: Risk group 1
- 3D CAD format: IGES, STEP
- Technology: 3D snapshot, image analysis
- Connection type: PoE++
- Supply voltage: 24 V DC or PoE PD class 8 (90W)
- Current consumption: 10 A
- Enclosure rating: IP65/IP67
- Part localization time: 0.1 s to 10 s typical
- Part size: approx. > 20 mm x 20 mm x 20 mm
- 2D colour sensor resolution: 2 MP (1920 px x 1200 px)
- 3D sensor resolution: 5 MP (2472 px x 2064 px)
- Ethernet: 2 ports, camera to PC and PC to robot
- Data transmission rate: 1 Gbit/s (camera), 10/100 Mbit/s (robot)
- Protocol: TCP/IP
- Electrical connection: M12 male connector, 8-pin, x-coded
- Operating ambient temperature: 0 °C to +40 °C, non-condensing
- Shock load: 60 g / 1.9 ms, 25 g / 6 ms
- Vibration load: 30-500 Hz / 5 g
- Dimensions (H x L x W): 100mm x 506mm x 58mm
- Weight: 1.66 kg
Key Features
- 3D snapshot camera technology
- Medium field of view
- High resolution: 0.5 mm to 0.8 mm depending on distance
- LED blue light source at 465 nm, Risk group 1
- Fast part localization time from 0.1 s to 10 s
- Supports simple and complex part shapes
- Ethernet connectivity with 1 Gbit/s data transmission rate
- Factory calibrated
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper integration and compliance with safety standards.
Applications
- Robot guidance
- Position determination
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP65/IP67 rated enclosure ensures long product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK PLB-51A0701 3D Snapshot Camera is available for immediate purchase, ideal for industrial robot guidance and position determination applications.
