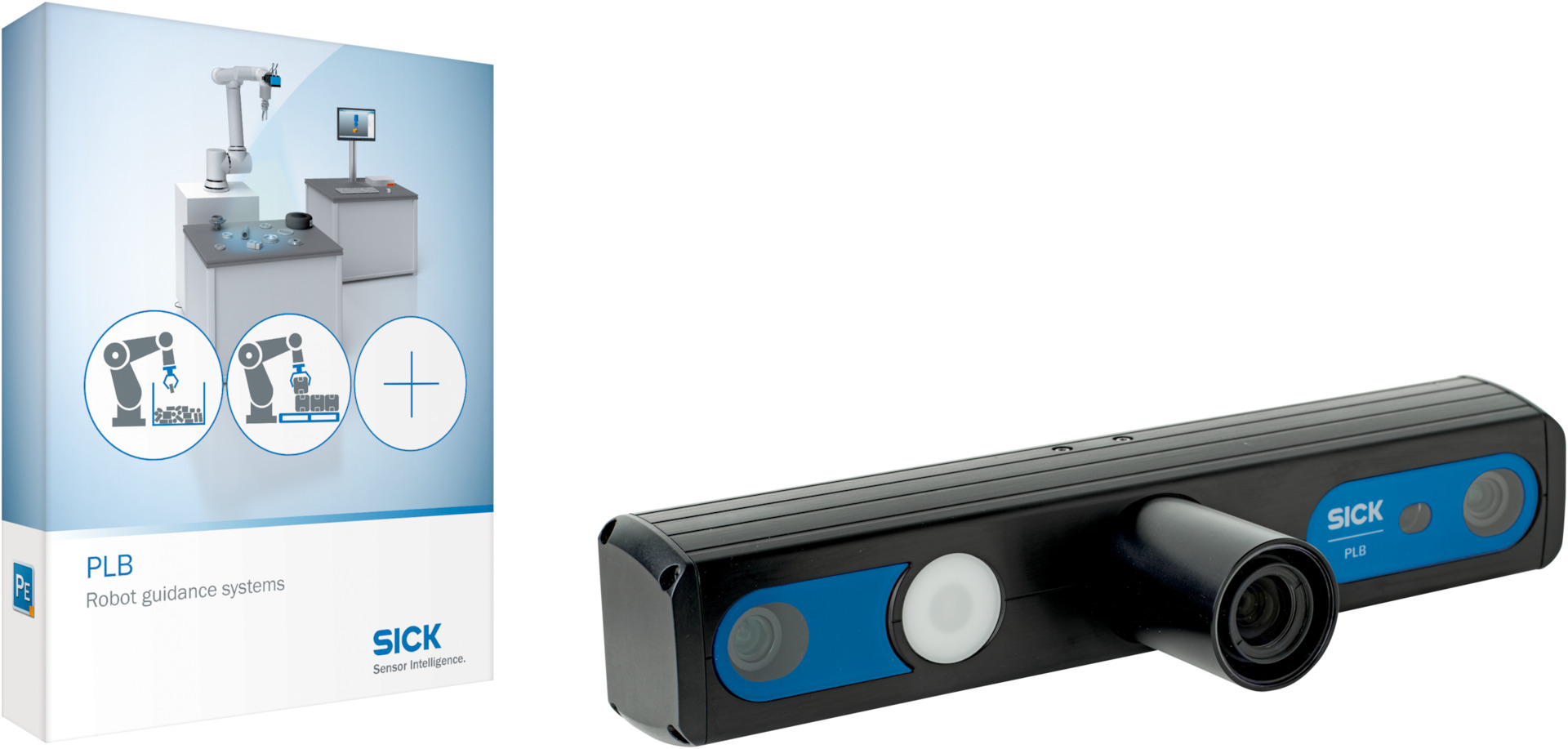

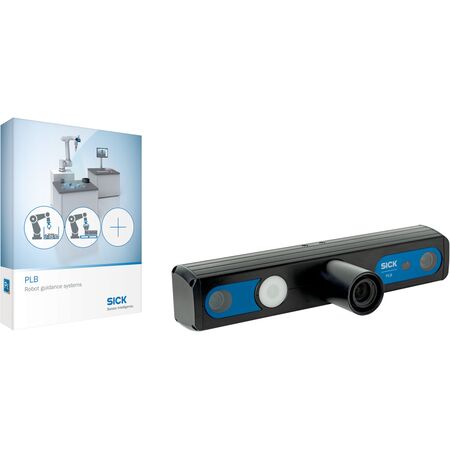

3D Snapshot Camera PLB-51B0100 | Large Field of View | 2 MP & 5 MP Resolution | IP65/IP67 Rated | by SICK
The 3D Snapshot Camera PLB-51B0100 is designed for precise robot guidance and position determination, featuring a large field of view and advanced 3D snapshot technology. With high-resolution 2D (2 MP) and 3D (5 MP) sensors, it ensures fast part localization in various applications. Built for industrial environments, its robust IP65/IP67 enclosure provides excellent protection against dust and water, making it ideal for both simple and complex part shapes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: PLB-522
- Field of view: Large
- Classification: Pro
- Camera type: 3D snapshot
- Example volume of view: 700 mm x 600 mm x 600 mm
- Image resolution: 0.3 mm to 0.6 mm depending on distance
- Light source: LED, blue, 465 nm
- LED class: Risk group 1
- Localization principle: CAD-model, geometrical shape and edge localization
- Technology: 3D snapshot, image analysis
- Connection type: PoE++
- Supply voltage: 24 V DC or PoE PD class 8 (90W)
- Current consumption: 10 A
- Enclosure rating: IP65/IP67
- Part localization time: 0.1 s to 10 s typical
- Part size: approx. > 20 mm x 20 mm x 20 mm
- 2D colour sensor resolution: 2 MP (1920 px x 1200 px)
- 3D sensor resolution: 5 MP (2472 px x 2064 px)
- Ethernet: 2 ports, camera to PC and PC to robot
- Data transmission rate: 1 Gbit/s (camera), 10/100 Mbit/s (robot)
- Protocol: TCP/IP
- Electrical connection: M12 male connector, 8-pin, x-coded
- Ambient temperature operation: 0 °C to +40 °C, non-condensing
- Shock load: 60 g / 1.9 ms, 25 g / 6 ms
- Vibration load: 30-500 Hz / 5 g
- Dimensions (H x L x W): 100mm x 506mm x 58mm
- Weight: 1.16 kg
Key Features
- Large field of view
- 3D snapshot camera technology
- High resolution 2D colour sensor (2 MP) and 3D sensor (5 MP)
- Fast part localization time from 0.1 s to 10 s
- Suitable for simple and complex part shapes
- LED blue light source at 465 nm, Risk group 1
- Enclosure rating IP65/IP67 for robust protection
- Factory calibrated
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper integration with robotic systems and compliance with electrical standards.
Applications
- Robot guidance
- Position determination
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP65/IP67 rated enclosure extends product lifespan
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK PLB-51B0100 3D Snapshot Camera is available for immediate purchase, ideal for industrial robot guidance and position determination applications.
