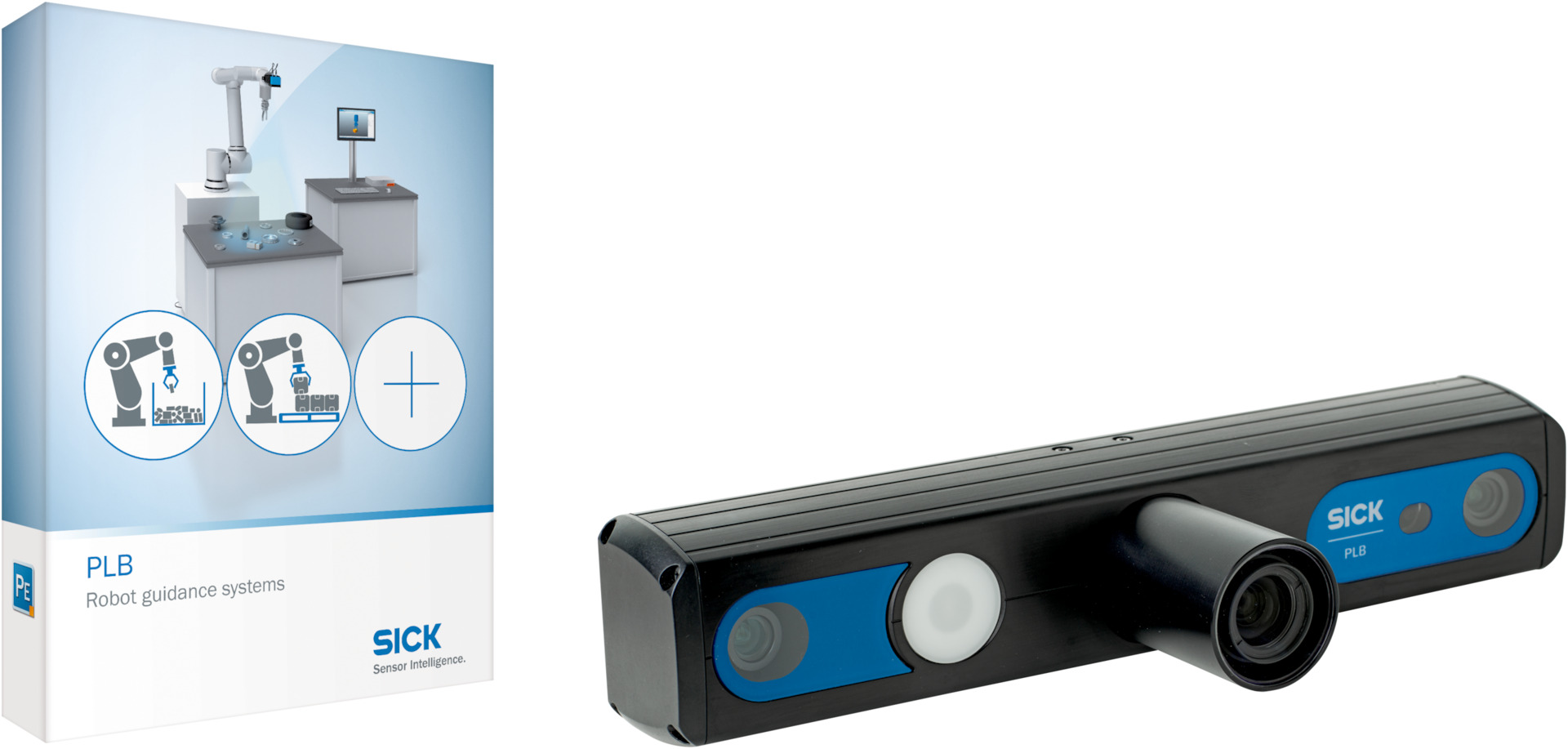

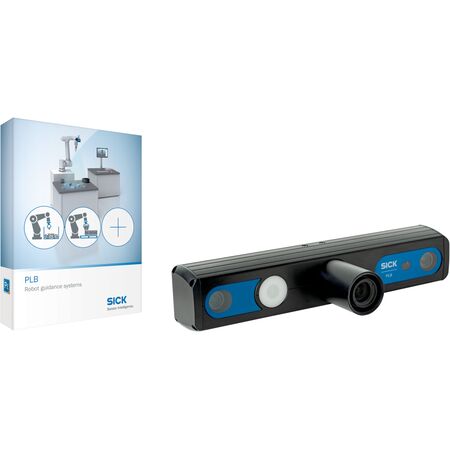

3D Snapshot Camera PLB-51B0102 | High Resolution 0.2mm to 0.3mm | IP65/IP67 Rated | by SICK
The 3D Snapshot Camera PLB-51B0102 is designed for precise robot guidance and position determination, featuring advanced 3D snapshot technology and high image resolution of 0.2mm to 0.3mm. With a robust IP65/IP67 enclosure and blue LED light source, this camera ensures reliable performance in industrial environments, making it ideal for automation and robotics applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: PLB-522
- Field of view: Small (200 mm x 450 mm x 100 mm)
- Image resolution: 0.2 mm to 0.3 mm depending on distance
- Light source: LED, blue, 465 nm, Risk group 1
- Localization principle: CAD-model, geometrical shape and edge localization
- Technology: 3D snapshot, image analysis
- Connection type: PoE++
- Supply voltage: 24 V DC or PoE PD class 8 (90W)
- Current consumption: 10 A
- Enclosure rating: IP65/IP67
- Part localization time: 0.1 s to 10 s typical
- Part size: approximately > 10 mm x 10 mm x 10 mm
- 2D colour sensor resolution: 2 MP (1920 px x 1200 px)
- 3D sensor resolution: 5 MP (2472 px x 2064 px)
- Ethernet: 2 ports, camera to PC and PC to robot
- Data transmission rate: 1 Gbit/s (camera), 10/100 Mbit/s (robot)
- Protocol: TCP/IP
- Electrical connection: M12 male connector, 8-pin, x-coded
- Operating ambient temperature: 0 °C to +40 °C, non-condensing
- Shock load: 60 g / 1.9 ms, 25 g / 6 ms
- Vibration load: 30-500 Hz / 5 g
- Dimensions (H x L x W): 100mm x 506mm x 58mm
- Weight: 1.16 kg
Key Features
- 3D snapshot camera technology with image analysis
- Small field of view: 200 mm x 450 mm x 100 mm
- High image resolution: 0.2 mm to 0.3 mm depending on distance
- Blue LED light source at 465 nm, Risk group 1
- Localization based on CAD-model, geometrical shape and edge localization
- Ethernet connectivity with 1 Gbit/s data transmission rate
- IP65/IP67 rated enclosure for robust protection
- Factory calibrated for immediate use
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Robot guidance
- Position determination
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP65/IP67 enclosure extends product lifespan and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK PLB-51B0102 3D Snapshot Camera is available for immediate purchase, ideal for industrial robot guidance and precise position determination applications.
