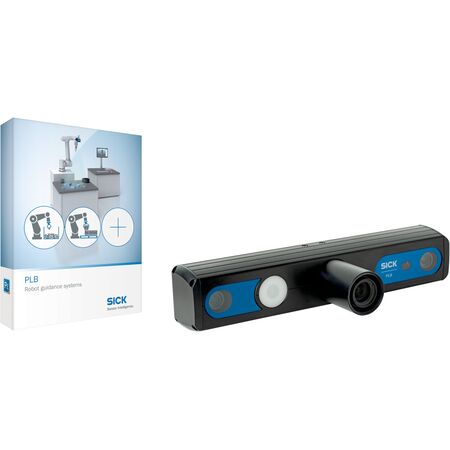

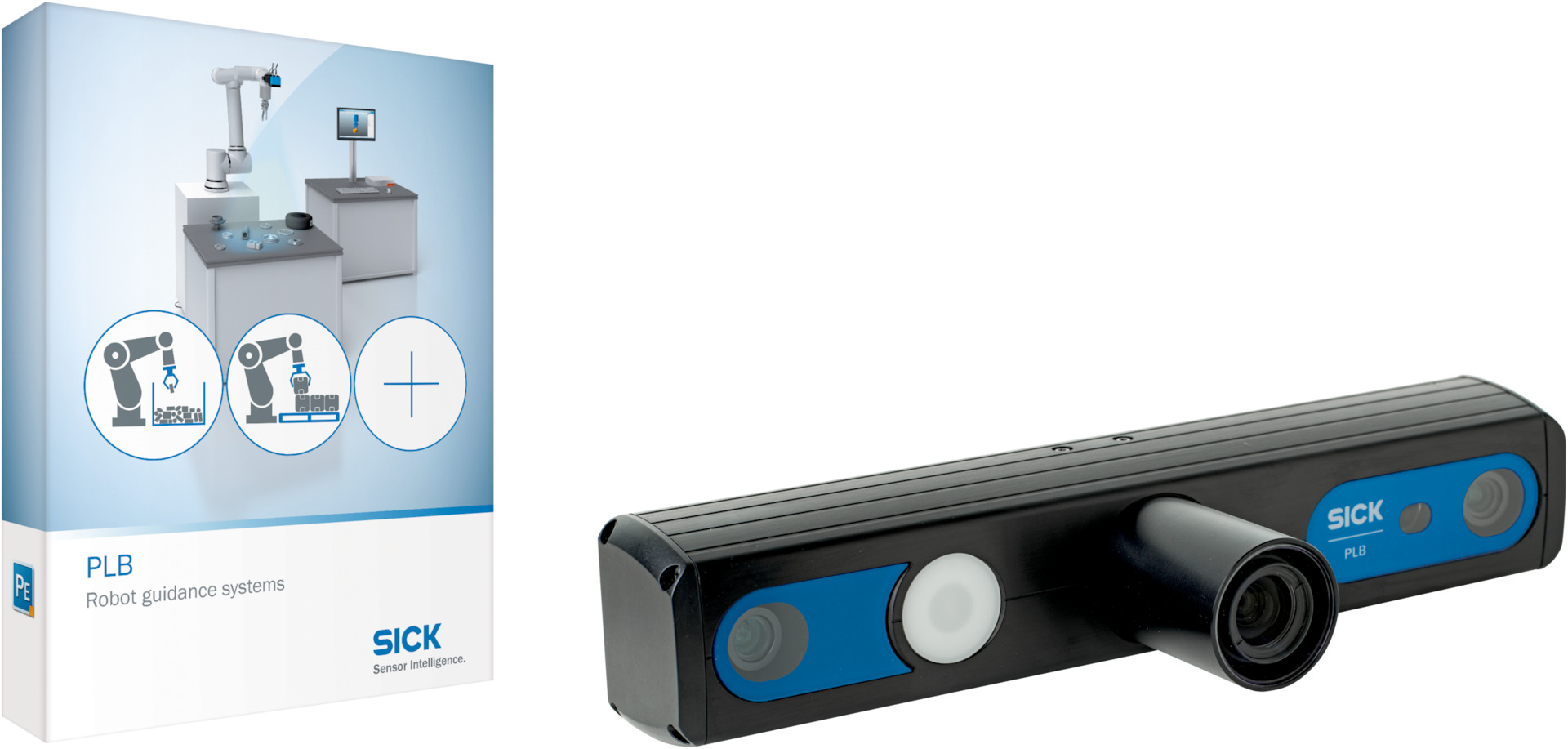

3D Snapshot Camera PLB-51B0600 | Large Field of View | 2 MP & 5 MP Resolution | IP65/IP67 Rated | by SICK
The 3D Snapshot Camera PLB-51B0600 is designed for precision in robotic guidance and position determination, featuring a large field of view and high-resolution 2D (2 MP) and 3D (5 MP) sensors. With a fast part localization time and an energy-efficient LED light source, this camera is perfect for both simple and complex part shapes, ensuring reliable performance in industrial automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: PLB-522
- Field of view: Large (700 mm x 600 mm x 600 mm)
- Image resolution: 0.3 mm to 0.6 mm depending on distance
- Light source: LED, blue, 465 nm, Risk group 1
- Connection type: PoE++
- Supply voltage: 24 V DC or PoE PD class 8 (90W)
- Current consumption: 10 A
- Part localization time: 0.1 s to 10 s typical
- Part size: Approx. > 20 mm x 20 mm x 20 mm
- 2D colour sensor resolution: 2 MP (1920 px x 1200 px)
- 3D sensor resolution: 5 MP (2472 px x 2064 px)
- Ethernet: 2 ports, 1 Gbit/s (camera), 10/100 Mbit/s (robot)
- Protocol: TCP/IP
- Electrical connection: M12 male connector, 8-pin, x-coded
- Operating temperature: 0 °C to +40 °C, non-condensing
- Shock load: 60 g / 1.9 ms, 25 g / 6 ms
- Vibration load: 30-500 Hz / 5 g
- Dimensions (H x L x W): 100mm x 506mm x 58mm
- Weight: 1.16 kg
Key Features
- Large field of view
- 3D snapshot camera technology
- High resolution 2D colour sensor (2 MP) and 3D sensor (5 MP)
- Fast part localization time (0.1 s to 10 s typical)
- Suitable for simple and complex part shapes
- LED blue light source (465 nm), Risk group 1
- Factory calibrated
- IP65/IP67 rated enclosure for robust protection
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper integration with robotic systems and network configuration.
Applications
- Robot guidance
- Position determination
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP65/IP67 enclosure extends product lifespan and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK PLB-51B0600 3D Snapshot Camera is available for immediate purchase, ideal for industrial automation and robotic guidance applications.
