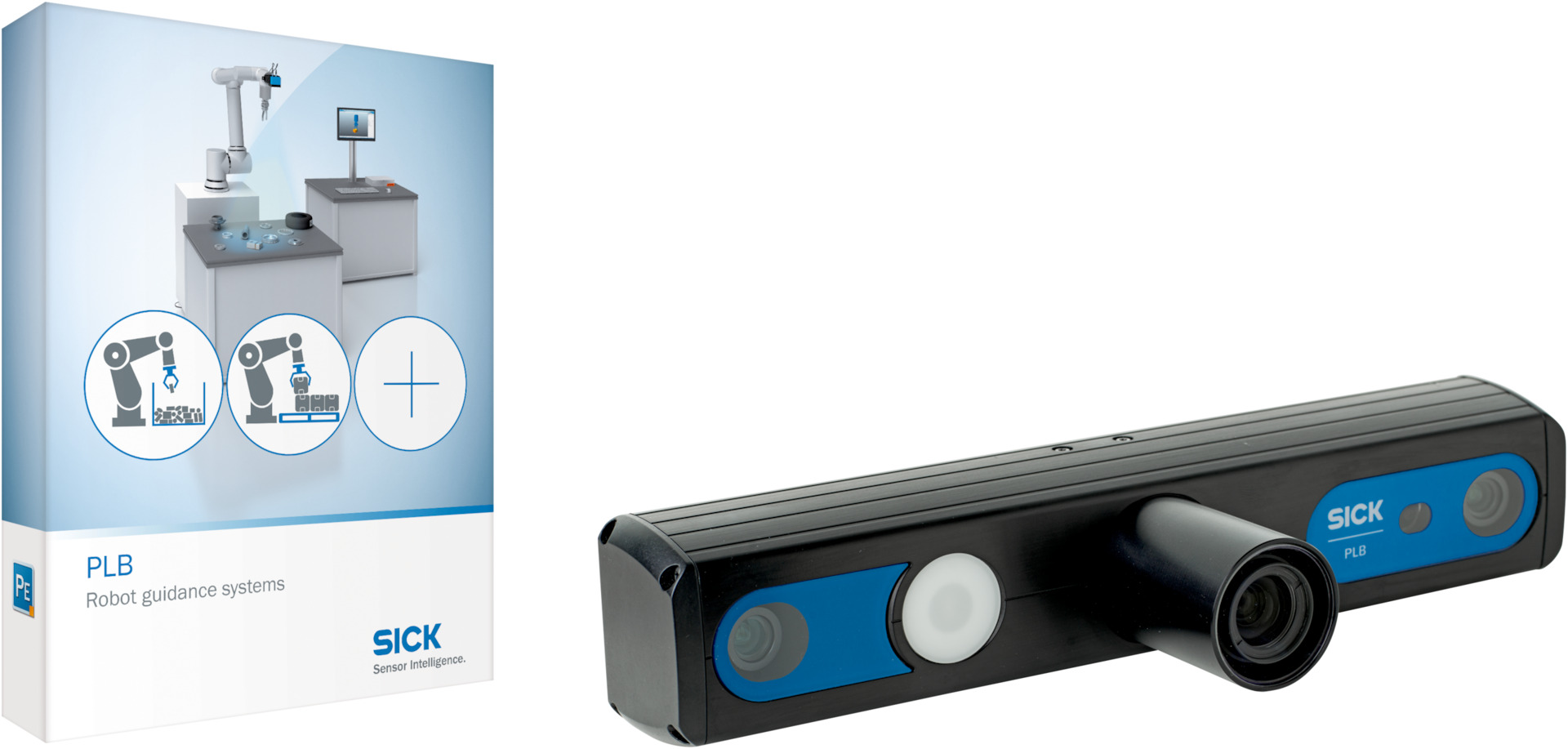

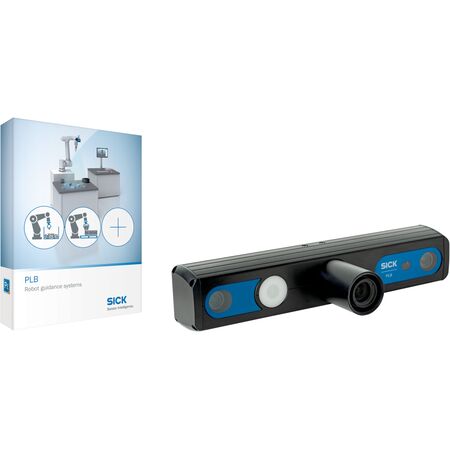

3D Snapshot Camera PLB-51B0602 | High Image Resolution | IP65/IP67 Rated | by SICK
The 3D Snapshot Camera PLB-51B0602 is designed for precise robot guidance and position determination tasks. Featuring advanced 3D snapshot technology with high image resolution ranging from 0.2 mm to 0.3 mm, this camera ensures accurate part localization in various industrial applications. With an IP65/IP67 rated enclosure, it operates reliably in demanding environments, making it an ideal choice for automation and robotics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: PLB-522
- Field of view: Small
- Classification: Spare
- Tasks: Position determination
- Camera type: 3D snapshot
- Example volume of view (L x W x H): 200 mm x 450 mm x 100 mm
- Image resolution: 0.2 mm to 0.3 mm depending on distance
- Light source: LED, blue, 465 nm
- LED class: Risk group 1
- 3D CAD format: IGES, STEP
- Technology: 3D snapshot, image analysis
- Connection type: PoE++
- Supply voltage: 24 V DC or PoE PD class 8 (90W)
- Current consumption: 10 A
- Enclosure rating: IP65/IP67
- Part localization time: 0.1 s to 10 s typical
- Part size: approx. > 10 mm x 10 mm x 10 mm
- 2D colour sensor resolution: 2 MP (1920 px x 1200 px)
- 3D sensor resolution: 5 MP (2472 px x 2064 px)
- Ethernet: 2 ports, camera to PC and PC to robot
- Data transmission rate: 1 Gbit/s (camera), 10/100 Mbit/s (robot)
- Protocol: TCP/IP (camera)
- Electrical connection: M12 male connector, 8-pin, x-coded
- Ambient temperature operation: 0 °C to +40 °C, non-condensing
- Shock load: 60 g / 1.9 ms, 25 g / 6 ms
- Vibration load: 30-500 Hz / 5 g
- Dimensions (H x L x W): 100mm x 506mm x 58mm
- Weight: 1.16 kg
Key Features
- 3D snapshot camera technology with image analysis
- Small field of view with example volume of 200 mm x 450 mm x 100 mm
- High image resolution of 0.2 mm to 0.3 mm depending on distance
- Blue LED light source at 465 nm, LED class Risk group 1
- Fast part localization time from 0.1 s to 10 s
- Supports simple and complex part shapes
- 2 MP 2D colour sensor resolution and 5 MP 3D sensor resolution
- Ethernet connectivity with 1 Gbit/s data transmission rate
- IP65/IP67 rated enclosure for robust operation
- Factory calibrated and supplied with C57 camera PLB Application Software
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper integration with robotic systems and network configuration.
Applications
- Robot guidance
- Position determination tasks
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP65/IP67 enclosure extends product lifespan reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK PLB-51B0602 3D Snapshot Camera is available for immediate purchase, ideal for industrial robot guidance and position determination applications.
