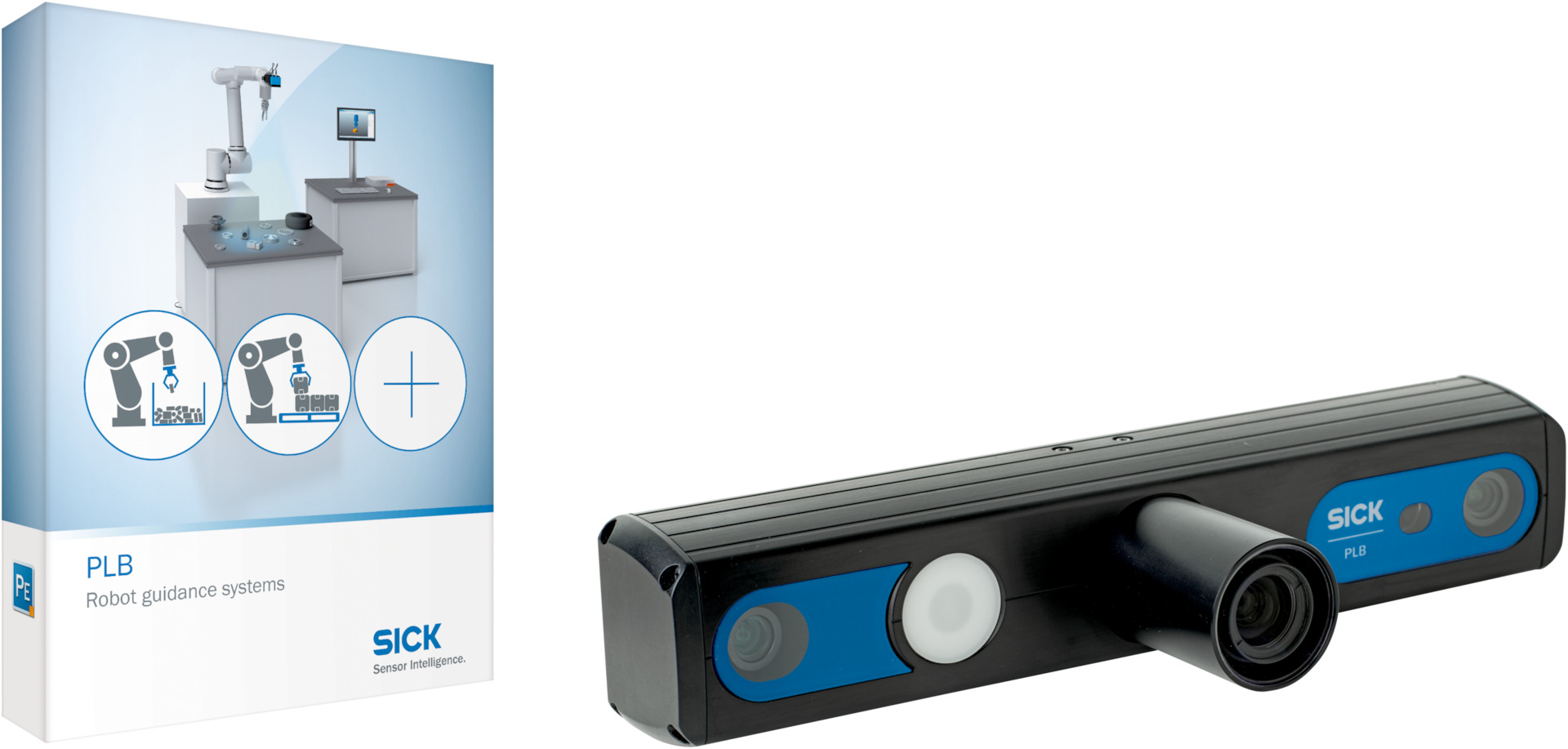

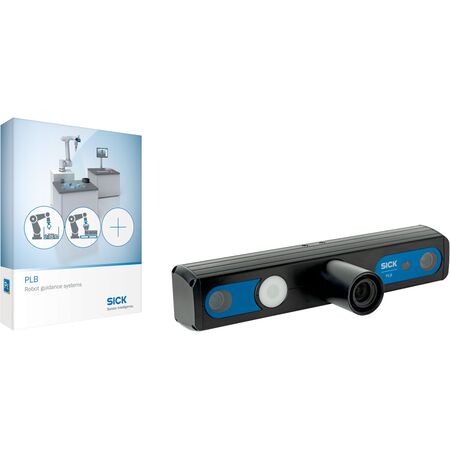

3D Snapshot Camera PLB-51B0700 | Large Field of View | 2 MP & 5 MP Resolution | IP65/IP67 Rated | by SICK
The 3D Snapshot Camera PLB-51B0700 is designed for precise robot guidance and position determination, featuring a large field of view and high-resolution sensors (2 MP for 2D and 5 MP for 3D). With fast part localization times and an IP65/IP67 enclosure, this camera is built for robust industrial applications, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: PLB-522
- Field of view: Large
- Classification: Secondary camera
- Tasks: Position determination
- Camera type: 3D snapshot
- Example volume of view: 700 mm x 600 mm x 600 mm
- Image resolution: 0.3 mm to 0.6 mm depending on distance
- Light source: LED, blue, 465 nm
- LED class: Risk group 1
- 3D CAD format: IGES, STEP
- Technology: 3D snapshot, image analysis
- Connection type: PoE++
- Supply voltage: 24 V DC or PoE PD class 8 (90W)
- Current consumption: 10 A
- Enclosure rating: IP65/IP67
- Part localization time: 0.1 s to 10 s typical
- Part size: approx. > 20 mm x 20 mm x 20 mm
- 2D colour sensor resolution: 2 MP (1920 px x 1200 px)
- 3D sensor resolution: 5 MP (2472 px x 2064 px)
- Ethernet: 2 ports, 1 Gbit/s (camera), 10/100 Mbit/s (robot)
- Protocol: TCP/IP
- Electrical connection: M12 male connector, 8-pin, x-coded
- Ambient temperature operation: 0 °C to +40 °C, non-condensing
- Shock load: 60 g / 1.9 ms, 25 g / 6 ms
- Vibration load: 30-500 Hz / 5 g
- Dimensions (H x L x W): 100mm x 506mm x 58mm
- Weight: 1.16 kg
Key Features
- Large field of view
- 3D snapshot camera technology
- High resolution 2D colour sensor (2 MP) and 3D sensor (5 MP)
- Fast part localization time from 0.1 s to 10 s
- LED blue light source (465 nm) with Risk group 1 classification
- PoE++ connection type with 24 V DC or PoE PD class 8 (90W) supply
- Enclosure rated IP65/IP67 for robust industrial use
- Factory calibrated for immediate use
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper integration with robotic systems and compliance with safety standards.
Applications
- Robot guidance
- Position determination
- Part localization for simple and complex shapes
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP65/IP67 enclosure extends product lifespan reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK PLB-51B0700 3D Snapshot Camera is available for immediate purchase, ideal for industrial robot guidance and position determination applications.
