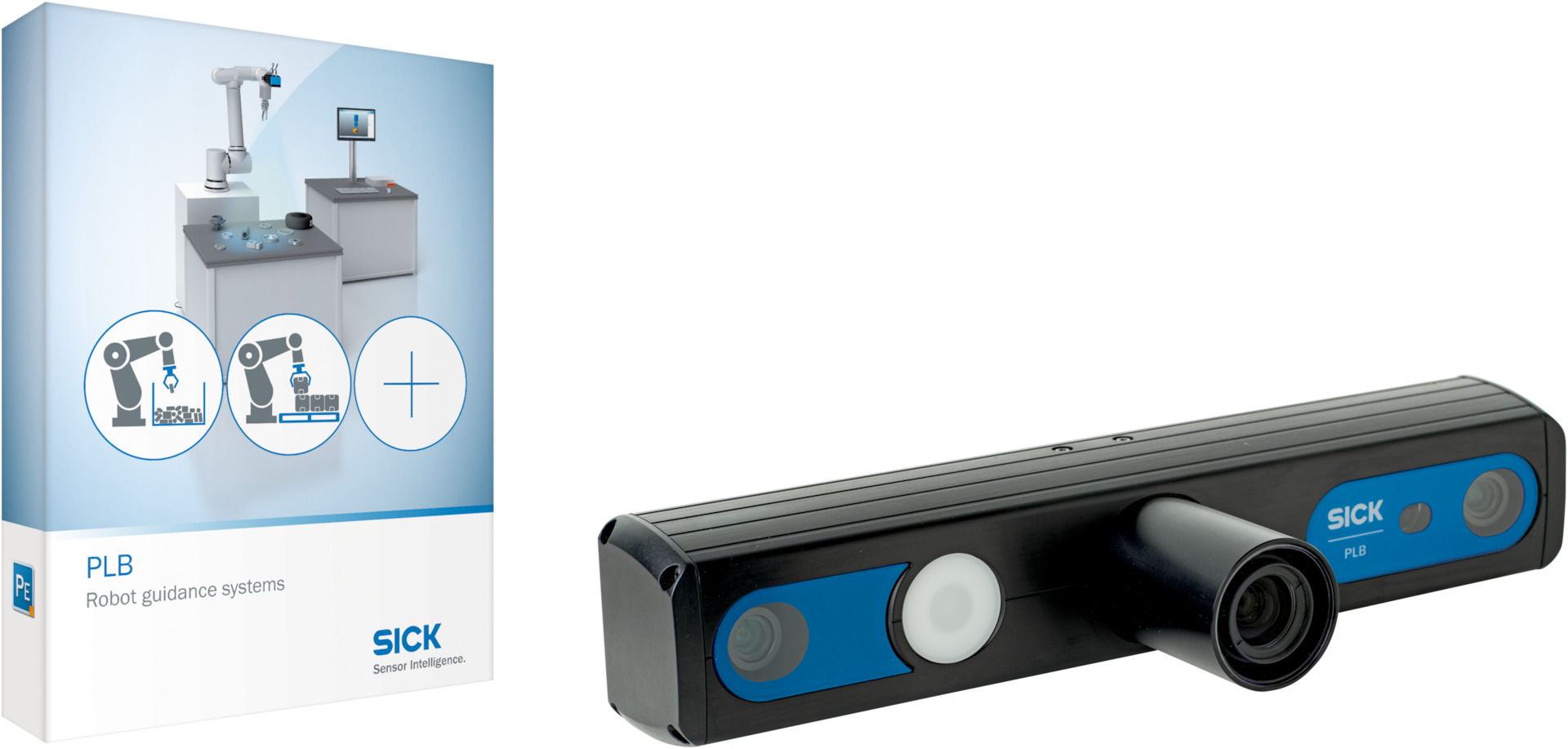

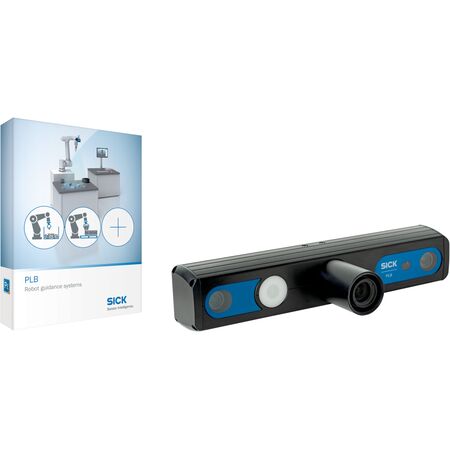

3D Snapshot Camera PLB-51B0702 | 2 MP 2D & 5 MP 3D Resolution | IP65/IP67 Rated | by SICK
The 3D Snapshot Camera PLB-51B0702 is engineered for precision in industrial automation, featuring advanced 3D snapshot technology with a 5 MP sensor and a 2 MP color sensor. With a fast part localization time of 0.1 to 10 seconds and a robust IP65/IP67 enclosure, it's perfect for robot guidance and part inspection in harsh environments. This camera is factory calibrated for immediate use, ensuring reliable performance right out of the box.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: PLB-522
- Field of view: Small (200 mm x 450 mm x 100 mm)
- Camera type: 3D snapshot
- Image resolution: 0.2 mm to 0.3 mm depending on distance
- Light source: LED, blue, 465 nm, Risk group 1
- Connection type: PoE++
- Supply voltage: 24 V DC or PoE PD class 8 (90W)
- Current consumption: 10 A
- Enclosure rating: IP65/IP67
- Part localization time: 0.1 s to 10 s typical
- Part size: approximately > 10 mm x 10 mm x 10 mm
- 2D colour sensor resolution: 2 MP (1920 px x 1200 px)
- 3D sensor resolution: 5 MP (2472 px x 2064 px)
- Data transmission rate: 1 Gbit/s (camera), 10/100 Mbit/s (robot)
- Protocol: TCP/IP
- Electrical connection: M12 male connector, 8-pin, x-coded
- Operating ambient temperature: 0 °C to +40 °C, non-condensing
- Shock load: 60 g / 1.9 ms, 25 g / 6 ms
- Vibration load: 30-500 Hz / 5 g
- Dimensions (H x L x W): 100mm x 506mm x 58mm
- Weight: 1.16 kg
Key Features
- 3D snapshot camera technology with image analysis
- Small field of view suitable for precise applications
- High resolution: 2 MP 2D colour sensor and 5 MP 3D sensor
- Fast part localization time from 0.1 s to 10 s
- LED blue light source (465 nm) with Risk group 1 classification
- Robust IP65/IP67 rated enclosure for harsh environments
- PoE++ connection with 24 V DC or PoE PD class 8 (90W) power supply
- Ethernet interface with 1 Gbit/s data transmission rate
- Factory calibrated for immediate use
Professional Installation Requirements
- Installation by qualified personnel with experience in industrial camera systems and electrical connections is recommended to ensure proper setup and compliance with safety standards.
Applications
- Robot guidance
- Position determination
- Industrial automation
- Part localization and inspection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP65/IP67 enclosure extends product lifespan reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK PLB-51B0702 3D Snapshot Secondary Camera is available for immediate purchase, ideal for industrial robot guidance and position determination applications.
