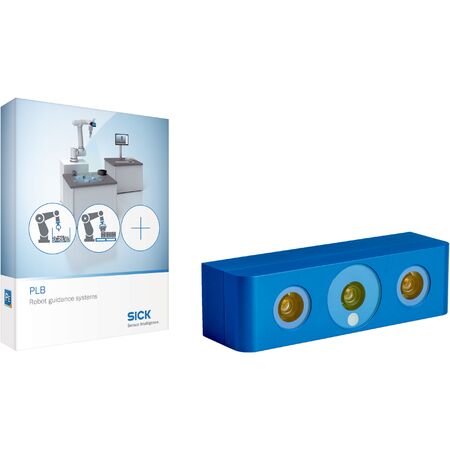

3D Snapshot Camera PLB-5250100 | Large Field of View | Edge Localization | IP65/IP67 Rated | by SICK
The 3D Snapshot Camera PLB-5250100 is designed for precise robot guidance and position determination tasks. With a large field of view and advanced edge localization technology, this camera ensures accurate part detection in various industrial applications. Its IP65/IP67 rated enclosure and low power consumption make it ideal for demanding environments, while the blue LED light source minimizes environmental impact.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: PLB-515
- Field of view: Large
- Classification: Core
- Tasks: Position determination
- Camera type: 3D snapshot
- Example volume of view (L x W x H): 600 mm x 500 mm x 500 mm
- Image resolution: 0.38 mm to 1.36 mm depending on distance
- Light source: LED, blue, 465 nm
- LED class: Risk group 0 (Exempt, IEC62471: 2006)
- Localization principle: Edge localization
- Technology: 3D snapshot, image analysis
- Connection type: M9 male connector, 7-pin
- Supply voltage: 12 V to 24 V or PoE Class 3
- Current consumption: 2 A
- Enclosure rating: IP65 / IP67
- Part localization time: 3 s to 10 s typical
- Part size: Approximately greater than 50 mm x 50 mm x 50 mm
- Part characteristics: Simple and complex part shapes
- Ethernet data transmission rate: 1 Gbit/s (camera), 10/100 Mbit/s (robot)
- Protocol: TCP/IP (camera)
- Electrical connection: RJ45
- Ambient temperature operation: 0 °C to +40 °C, non-condensing
- Shock load: 80 g/1.9 ms, 25 g/6 ms
- Vibration load: 30-500 Hz / 10 g
- Dimensions (H x L x W): 52mm x 192mm x 50mm
- Weight: 0.65 kg
Key Features
- Large field of view
- 3D snapshot camera type
- Edge localization principle
- LED blue light source at 465 nm
- Risk group 0 LED class (Exempt, IEC62471: 2006)
- IP65 / IP67 rated enclosure
- Factory calibrated
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial camera systems and electrical connections to ensure proper setup and safety.
Applications
- Robot guidance
- Position determination tasks
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with 12 V to 24 V supply and PoE Class 3 support
- LED light source with low environmental impact and risk group 0 classification
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK PLB-5250100 3D Snapshot Camera is available for immediate purchase, ideal for industrial robot guidance and position determination applications.
