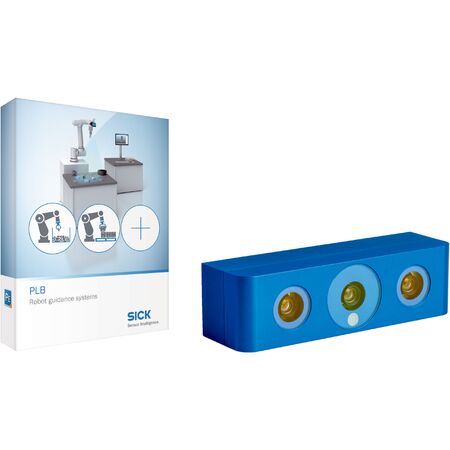

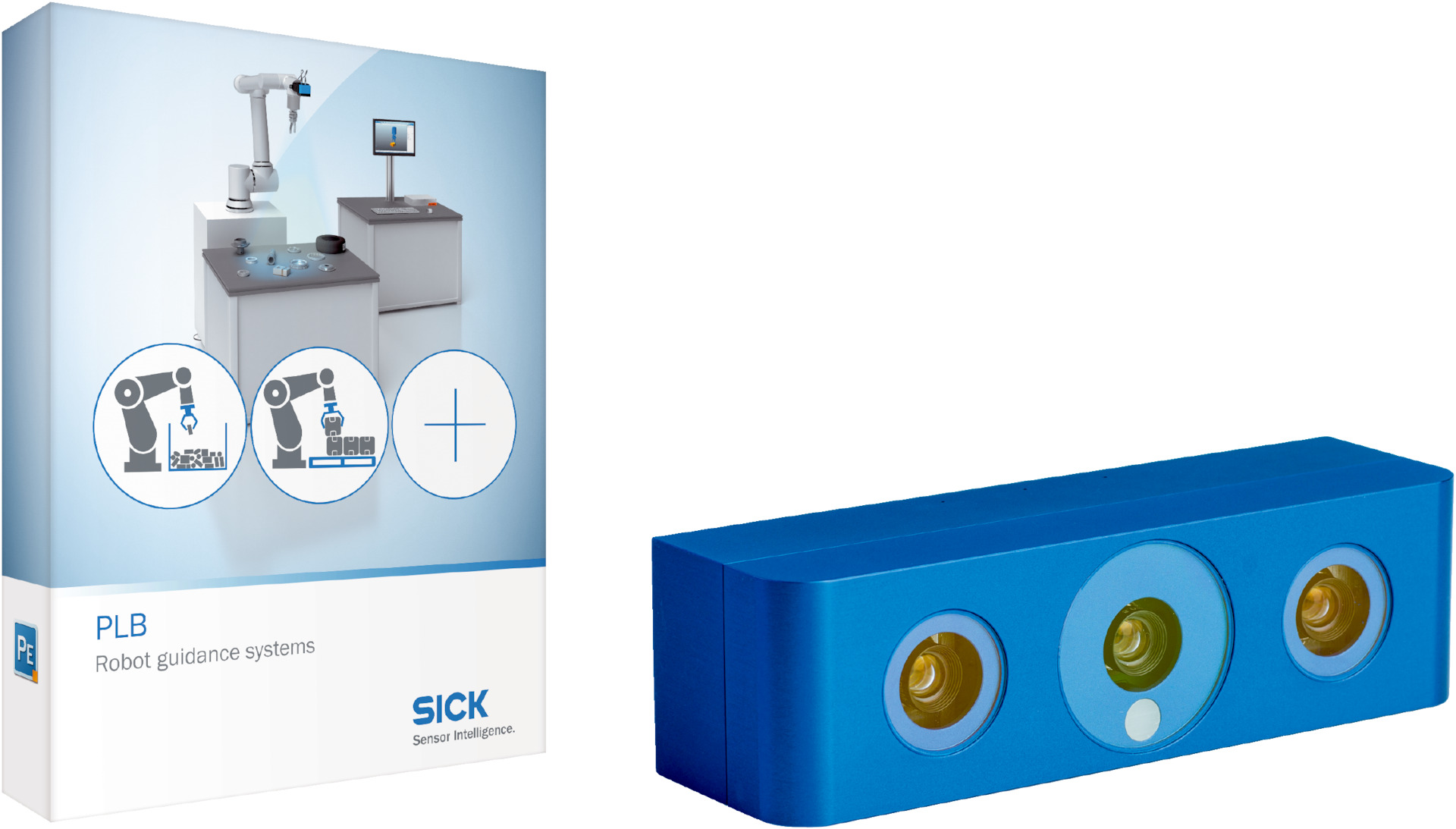

3D Snapshot Camera PLB-5250101 | High Image Resolution | IP65/IP67 Rated | by SICK
The 3D Snapshot Camera PLB-5250101 utilizes advanced image analysis technology for precise robot guidance and position determination. With a high image resolution ranging from 0.26 mm to 1.1 mm and a medium field of view, it’s perfect for industrial applications. The camera features a robust IP65/IP67 rated enclosure, ensuring durability in various environments, while the blue LED light source enhances visibility for accurate localization.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: PLB-515
- Field of view: Medium
- Classification: Core
- Camera type: 3D snapshot
- Image resolution: 0.26 mm to 1.1 mm depending on distance
- Light source: LED, blue, 465 nm
- LED class: Risk group 0 (Exempt, IEC62471: 2006)
- Localization principle: Edge localization
- Technology: 3D snapshot, image analysis
- Connection type: M9 male connector, 7-pin
- Supply voltage: 12 V to 24 V or PoE Class 3
- Current consumption: 2 A
- Enclosure rating: IP65 / IP67
- Part localization time: 3 s to 10 s typical
- Part size: Approx. > 30 mm x 30 mm x 30 mm
- Data transmission rate: 1 Gbit/s (camera), 10/100 Mbit/s (robot)
- Protocol: TCP/IP (camera)
- Electrical connection: RJ45
- Operating ambient temperature: 0 °C to +40 °C, non-condensing
- Shock load: 80 g/1.9 ms, 25 g/6 ms
- Vibration load: 30-500 Hz / 10 g
- Dimensions (H x L x W): 52mm x 192mm x 50mm
- Weight: 0.65 kg
Key Features
- 3D snapshot camera technology with image analysis
- Medium field of view with example volume of 400 mm x 300 mm x 400 mm
- High image resolution from 0.26 mm to 1.1 mm depending on distance
- Blue LED light source at 465 nm, Risk group 0 (Exempt, IEC62471: 2006)
- Edge localization principle for precise positioning
- IP65 / IP67 rated enclosure for robust protection
- Fast part localization time between 3 s to 10 s
- Supports simple and complex part shapes
- Ethernet interface with 1 Gbit/s data transmission rate (camera) and TCP/IP protocol
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper integration and compliance with safety standards.
Applications
- Robot guidance
- Position determination tasks
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Factory calibrated to reduce setup time and waste
- Low power consumption with 12 V to 24 V supply or PoE Class 3 support
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK PLB-5250101 3D Snapshot Camera is available for immediate purchase, ideal for industrial robot guidance and position determination applications.
