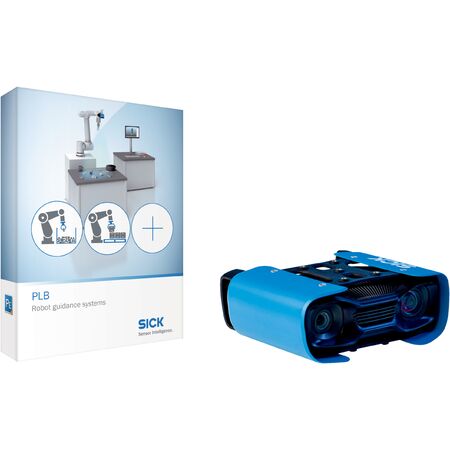

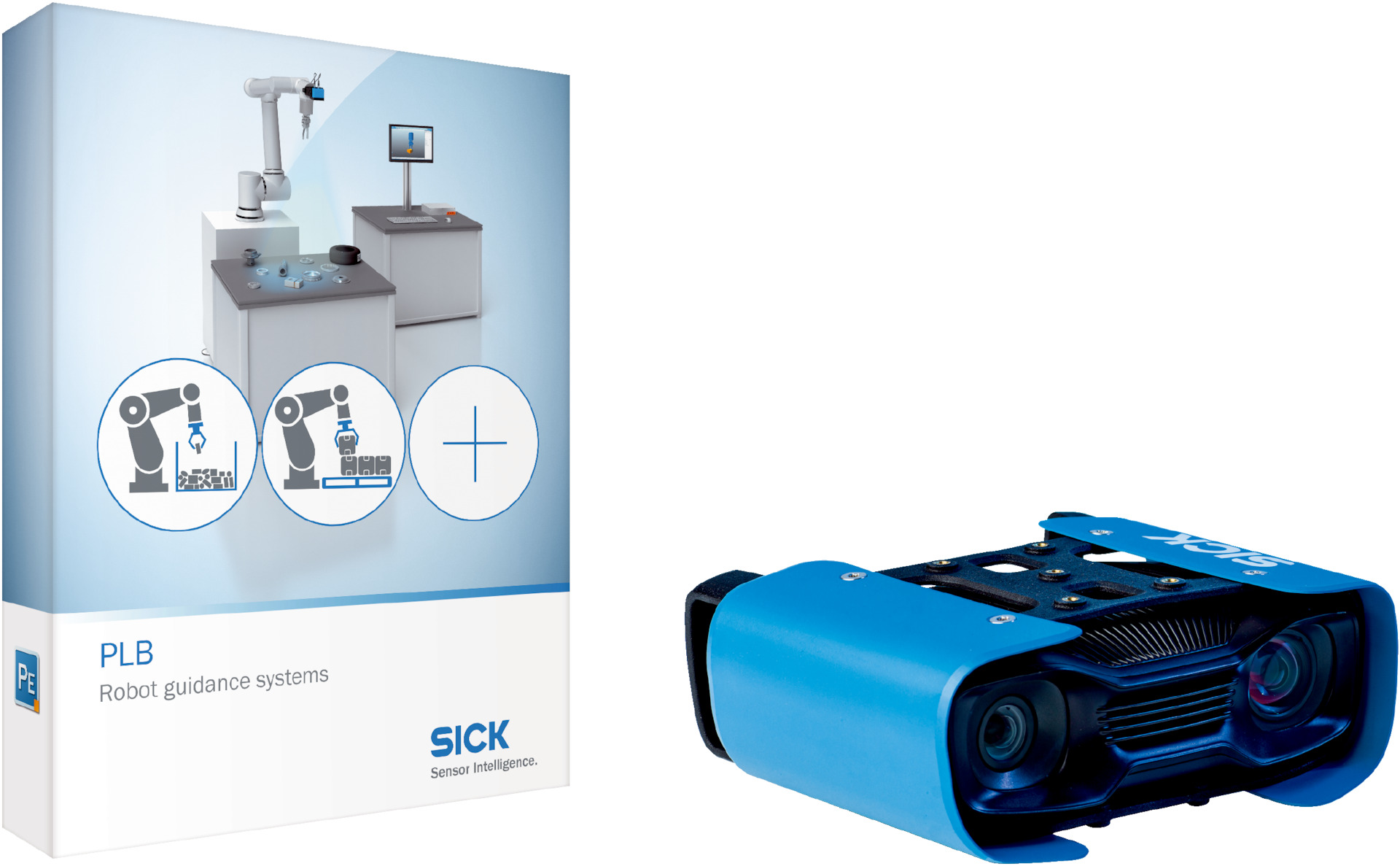

3D Snapshot Camera PLB-5290101 | Medium Field of View | Edge Localization | IP65 Enclosure | by SICK
The 3D Snapshot Camera PLB-5290101 utilizes advanced image analysis and edge localization technology, making it perfect for robot guidance and position determination. With a medium field of view and an IP65 enclosure, this camera is designed for durability and reliability in industrial environments, ensuring optimal performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: PLB-536
- Field of view: Medium (790 mm x 650 mm x 500 mm)
- Image resolution: 0.2 mm to 0.5 mm depending on distance
- Light source: LED white, red or blue
- LED class: Risk group 2
- Localization principle: Edge localization
- Technology: 3D snapshot, image analysis
- Connection type: Plug connector, M12, 5-pin
- Supply voltage: 24 V DC, ± 20%
- Current consumption: 5 A
- Enclosure rating: IP65
- Part localization time: 3 s to 10 s typical
- Part size: Approximately > 50 mm x 50 mm x 50 mm
- Part characteristics: Simple and complex part shapes
- Ethernet data transmission rate: 10 Gbit/s (camera), 10/100 Mbit/s (robot)
- Protocol: TCP/IP (camera)
- Electrical connection: RJ45
- Operating ambient temperature: 0 °C to +40 °C, non-condensing
- Shock load: 15 g / 11 ms
- Vibration load: 10-150 Hz / 5 g
- Dimensions (H x L x W): 56mm x 169mm x 124mm
- Weight: 0.945 kg
Key Features
- 3D snapshot camera technology with image analysis
- Medium field of view (790 mm x 650 mm x 500 mm)
- Edge localization principle
- LED light source available in white, red, or blue
- Risk group 2 LED class
- Plug connector M12, 5-pin connection
- Ethernet interface with 10 Gbit/s data transmission rate (camera)
- Factory calibrated for immediate use
- Enclosure rating IP65 for protection against dust and water
Professional Installation Requirements
- Installation by qualified personnel with experience in industrial camera systems and Ethernet networking is recommended to ensure proper setup and integration.
Applications
- Robot guidance
- Position determination
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Factory calibration reduces setup time and resource use
- Durable IP65 enclosure extends product lifespan and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK PLB-5290101 3D Snapshot Camera is available for immediate purchase, ideal for industrial robot guidance and position determination applications.
