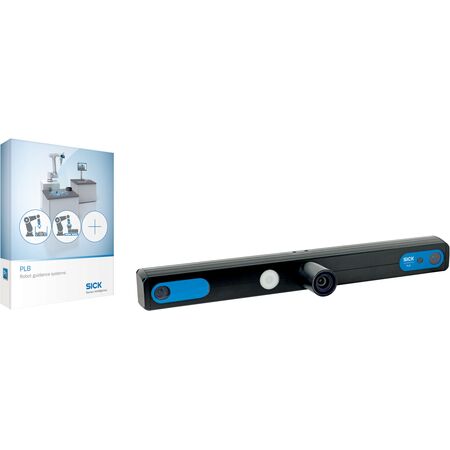

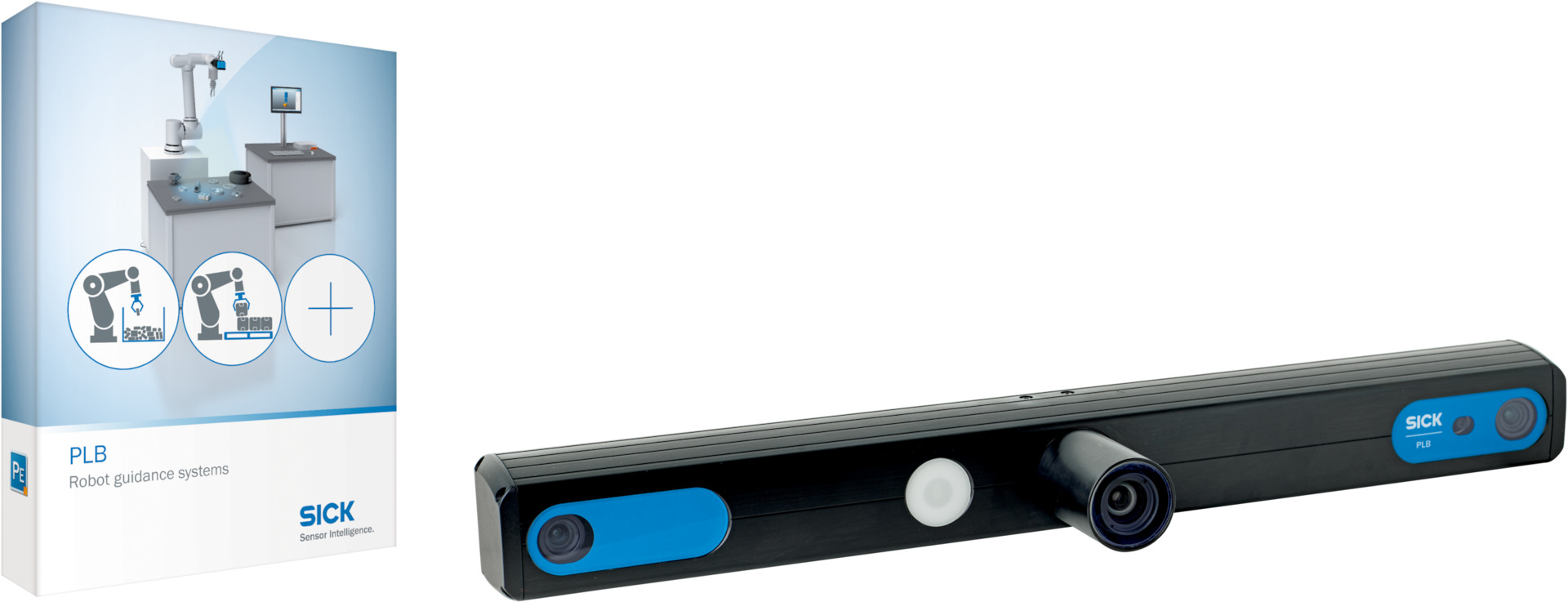

3D Snapshot Camera PLB-52A0101 | Medium Field of View | Edge Localization | 2D & 3D High Resolution | by SICK
The 3D Snapshot Camera PLB-52A0101 is designed for precise robot guidance and position determination. With a medium field of view and advanced edge localization principle, it features a 2 MP 2D color sensor and a 5 MP 3D sensor for high-resolution imaging. Ideal for both simple and complex part shapes, this camera ensures fast localization times from 0.1 to 10 seconds, making it perfect for industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: PLB-521
- Field of view: Medium
- Classification: Core
- Camera type: 3D snapshot
- Example volume of view: 950 mm x 1000 mm x 600 mm
- Image resolution: 0.5 mm to 0.8 mm depending on distance
- Light source: LED, blue, 465 nm, Risk group 1
- Localization principle: Edge localization
- Technology: 3D snapshot, image analysis
- Connection type: PoE++
- Supply voltage: 24 V DC or PoE PD class 8 (90W)
- Current consumption: 10 A
- Enclosure rating: IP65 / IP67
- Part localization time: 0.1 s to 10 s typical
- Part size: approximately > 20 mm x 20 mm x 20 mm
- 2D colour sensor resolution: 2 MP (1920 px x 1200 px)
- 3D sensor resolution: 5 MP (2472 px x 2064 px)
- Ethernet: 2 ports, camera to PC and PC to robot
- Data transmission rate: 1 Gbit/s (camera), 10/100 Mbit/s (robot)
- Protocol: TCP/IP
- Electrical connection: M12 male connector, 8-pin, x-coded
- Operating ambient temperature: 0 °C to +40 °C, non-condensing
- Shock load: 60 g / 1.9 ms, 25 g / 6 ms
- Vibration load: 30-500 Hz / 5 g
- Dimensions (H x L x W): 100mm x 506mm x 58mm
- Weight: 1.66 kg
Key Features
- Medium field of view
- 3D snapshot camera type
- Edge localization principle
- LED blue light source at 465 nm, Risk group 1
- High resolution: 2 MP 2D colour sensor, 5 MP 3D sensor
- Fast part localization time from 0.1 s to 10 s
- Suitable for simple and complex part shapes
- Factory calibrated
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper setup and compliance with electrical and safety standards.
Applications
- Robot guidance
- Position determination
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP65/IP67 enclosure ensures long product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK PLB-52A0101 3D Snapshot Camera is available for immediate purchase, ideal for industrial robot guidance and position determination applications.
