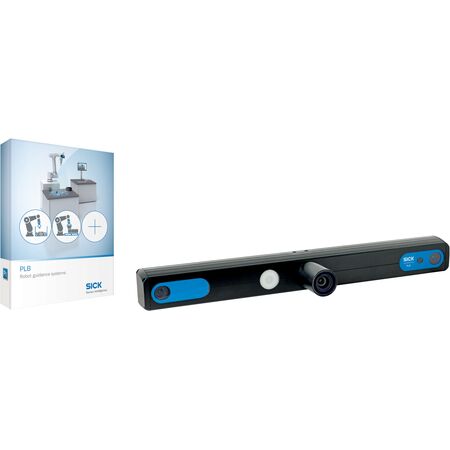

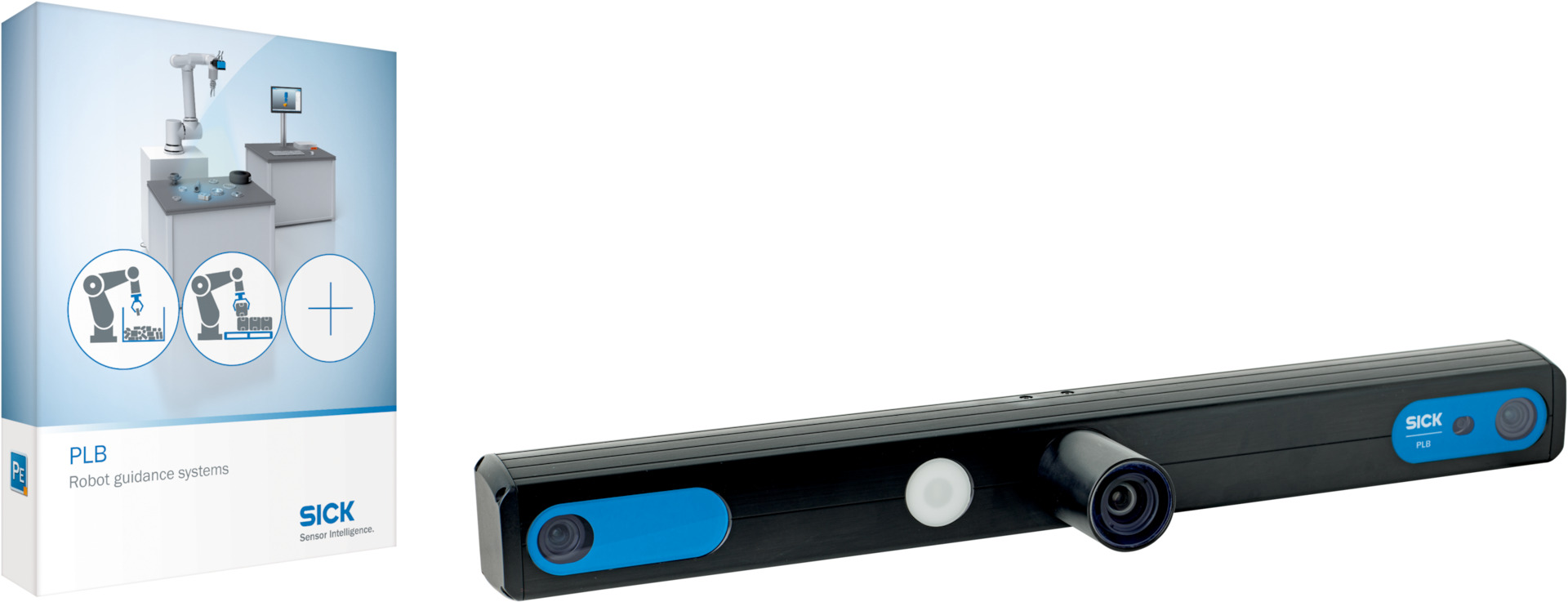

3D Snapshot Camera PLB-52A0102 | 5 MP 3D Sensor | IP65/IP67 Rated | by SICK
The 3D Snapshot Camera PLB-52A0102 features advanced 3D snapshot technology with image analysis, making it ideal for robot guidance and precise position determination tasks. With a high-resolution 5 MP 3D sensor and a durable IP65/IP67 enclosure, this camera ensures reliable performance in industrial environments. Its fast part localization time and energy-efficient LED light source enhance operational efficiency, making it a perfect choice for automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: PLB-521
- Field of view: Small (650 mm x 700 mm x 400 mm)
- Classification: Core
- Camera type: 3D snapshot
- Image resolution: 0.3 mm to 0.5 mm depending on distance
- Light source: LED, blue, 465 nm, Risk group 1
- Localization principle: Edge localization
- Technology: 3D snapshot with image analysis
- Connection type: PoE++
- Supply voltage: 24 V DC or PoE PD class 8 (90W)
- Current consumption: 10 A
- Enclosure rating: IP65/IP67
- Part localization time: 0.1 s to 10 s typical
- Part size: Approx. > 10 mm x 10 mm x 10 mm
- 2D colour sensor resolution: 2 MP (1920 px x 1200 px)
- 3D sensor resolution: 5 MP (2472 px x 2064 px)
- Ethernet: 2 ports, 1 Gbit/s camera, 10/100 Mbit/s robot
- Protocol: TCP/IP
- Electrical connection: M12 male connector, 8-pin, x-coded
- Operating temperature: 0 °C to +40 °C, non-condensing
- Shock load: 60 g / 1.9 ms, 25 g / 6 ms
- Vibration load: 30-500 Hz / 5 g
- Dimensions (H x L x W): 100mm x 506mm x 58mm
- Weight: 1.66 kg
Key Features
- 3D snapshot camera technology with image analysis
- Small field of view suitable for precise localization
- Edge localization principle
- LED blue light source at 465 nm, Risk group 1
- High resolution: 2 MP 2D colour sensor and 5 MP 3D sensor
- Fast part localization time from 0.1 s to 10 s
- Supports simple and complex part shapes
- Factory calibrated for immediate use
- IP65/IP67 rated enclosure for robust protection
Professional Installation Requirements
- Installation by qualified professionals is recommended to ensure proper integration and compliance with electrical standards.
Applications
- Robot guidance
- Position determination tasks
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP65/IP67 enclosure extends product lifespan reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK PLB-52A0102 3D Snapshot Camera is available for immediate purchase, ideal for industrial robot guidance and position determination applications.
