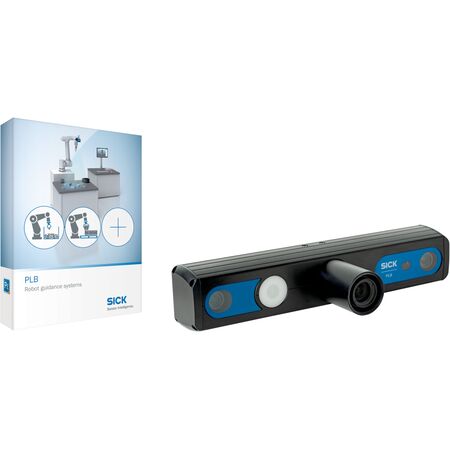

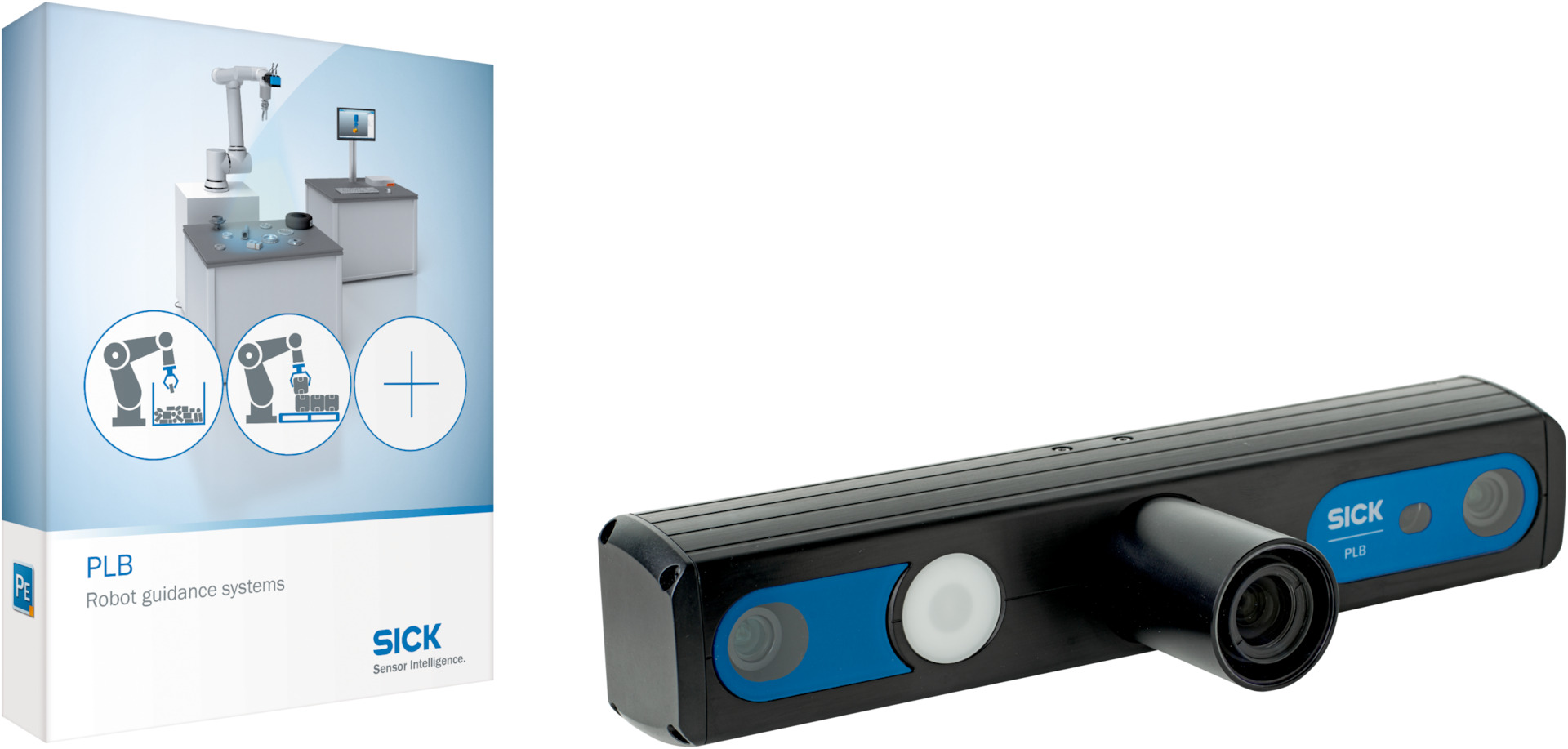

3D Snapshot Camera PLB-52B0100 | Large Field of View | 2 MP & 5 MP Resolution | Edge Localization | by SICK
The 3D Snapshot Camera PLB-52B0100 is designed for precision in robot guidance and position determination, featuring a large field of view and advanced 3D snapshot technology. With high-resolution 2 MP and 5 MP sensors, it ensures fast part localization from 0.1 to 10 seconds, making it ideal for both simple and complex part shapes in industrial automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: PLB-522
- Field of view: Large (700 mm x 600 mm x 600 mm)
- Classification: Core
- Camera type: 3D snapshot
- Image resolution: 0.3 mm to 0.6 mm depending on distance
- Light source: LED, blue, 465 nm
- LED class: Risk group 1
- Localization principle: Edge localization
- Technology: 3D snapshot, image analysis
- Connection type: PoE++
- Supply voltage: 24 V DC or PoE PD class 8 (90W)
- Current consumption: 10 A
- Enclosure rating: IP65/IP67
- Part localization time: 0.1 s to 10 s typical
- Part size: Approx. > 20 mm x 20 mm x 20 mm
- 2D colour sensor resolution: 2 MP (1920 px x 1200 px)
- 3D sensor resolution: 5 MP (2472 px x 2064 px)
- Ethernet: 2 ports, 1 Gbit/s (camera), 10/100 Mbit/s (robot)
- Protocol: TCP/IP
- Electrical connection: M12 male connector, 8-pin, x-coded
- Operating temperature: 0 °C to +40 °C, non-condensing
- Shock load: 60 g / 1.9 ms, 25 g / 6 ms
- Vibration load: 30-500 Hz / 5 g
- Dimensions (H x L x W): 100mm x 506mm x 58mm
- Weight: 1.16 kg
Key Features
- Large field of view
- 3D snapshot camera technology
- Edge localization principle
- LED blue light source at 465 nm, Risk group 1
- High resolution: 2 MP 2D sensor and 5 MP 3D sensor
- Fast part localization time from 0.1 s to 10 s
- Suitable for simple and complex part shapes
- Factory calibrated
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Robot guidance
- Position determination
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP65/IP67 rated enclosure ensures long product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK PLB-52B0100 3D Snapshot Camera is available for immediate purchase, ideal for industrial automation and robotic guidance applications.
