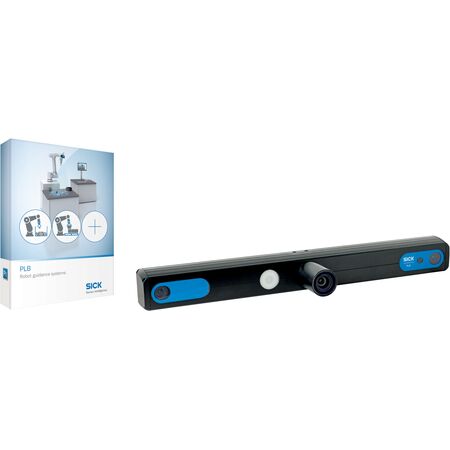

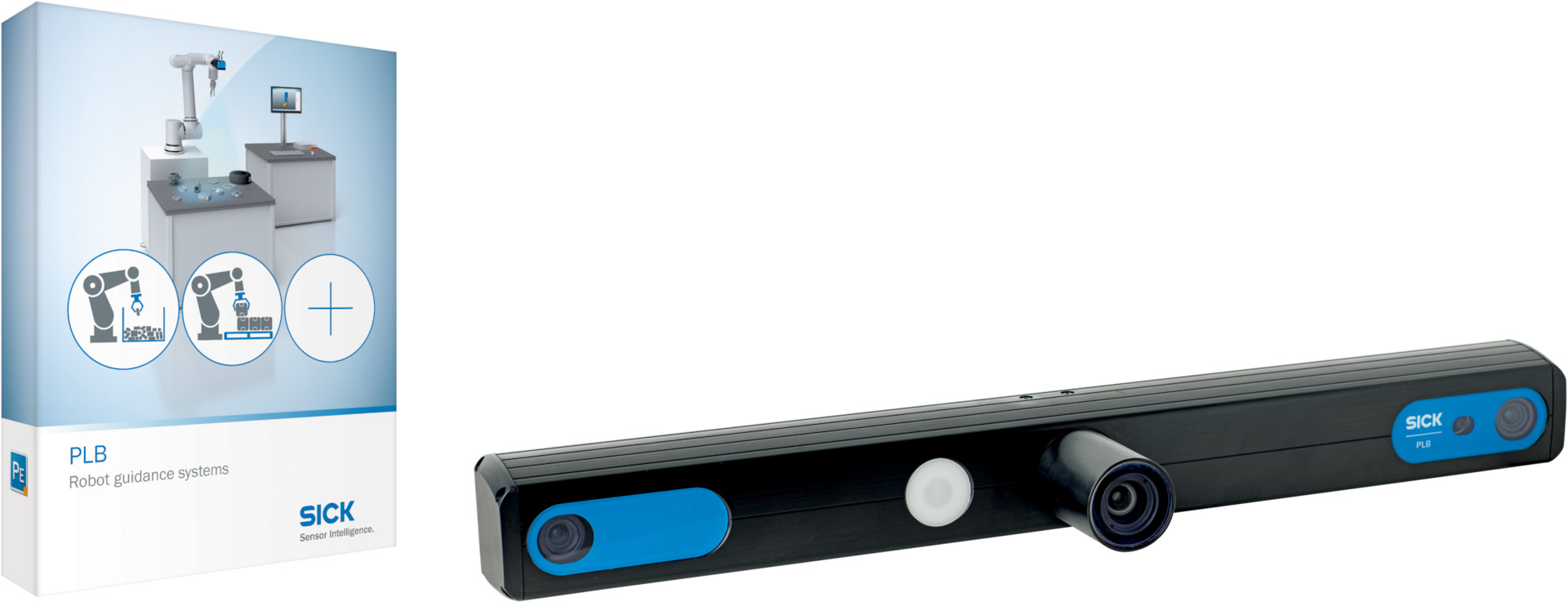

3D Snapshot Camera PLB-53A0101 | Medium Field of View | 5 MP Resolution | IP65/IP67 Rated | by SICK
The 3D Snapshot Camera PLB-53A0101 utilizes advanced 3D snapshot technology for precise robot guidance and position determination. With a medium field of view and high image resolution ranging from 0.5 mm to 0.8 mm, it excels in complex part localization tasks. Designed for industrial applications, this camera features a robust IP65/IP67 enclosure and energy-efficient blue LED light source, ensuring durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: PLB-521
- Field of view: Medium
- Classification: Prime
- Tasks: Position determination
- Camera type: 3D snapshot
- Example volume of view (L x W x H): 950 mm x 1000 mm x 600 mm
- Image resolution: 0.5 mm to 0.8 mm depending on distance
- Light source: LED, blue, 465 nm
- LED class: Risk group 1
- 3D CAD format: IGES, STEP
- Localization principle: Geometrical shape and edge localization
- Technology: 3D snapshot, image analysis
- Connection type: PoE++
- Supply voltage: 24 V DC or PoE PD class 8 (90W)
- Current consumption: 10 A
- Enclosure rating: IP65/IP67
- Part localization time: 0.1 s to 10 s typical
- Part size: approximately > 20 mm x 20 mm x 20 mm
- 2D colour sensor resolution: 2 MP (1920 px x 1200 px)
- 3D sensor resolution: 5 MP (2472 px x 2064 px)
- Ethernet: 2 ports, camera to PC and PC to robot
- Data transmission rate: 1 Gbit/s (camera), 10/100 Mbit/s (robot)
- Protocol: TCP/IP (camera)
- Electrical connection: M12 male connector, 8-pin, x-coded
- Ambient temperature operation: 0 °C to +40 °C, non-condensing
- Shock load: 60 g / 1.9 ms, 25 g / 6 ms
- Vibration load: 30-500 Hz / 5 g
- Dimensions (H x L x W): 100mm x 506mm x 58mm
- Weight: 1.66 kg
Key Features
- 3D snapshot camera technology with image analysis
- Medium field of view with example volume of 950 mm x 1000 mm x 600 mm
- High image resolution from 0.5 mm to 0.8 mm depending on distance
- Blue LED light source at 465 nm, LED class Risk group 1
- Part localization time typically between 0.1 s and 10 s
- Supports simple and complex part shapes
- 2D colour sensor resolution of 2 MP (1920 px x 1200 px)
- 3D sensor resolution of 5 MP (2472 px x 2064 px)
- Ethernet connectivity with 1 Gbit/s data transmission rate
- IP65/IP67 rated enclosure for robust protection
- Factory calibrated and supplied with C57 camera PLB Application Software
Professional Installation Requirements
- Professional installation by a qualified technician or engineer is recommended to ensure proper integration and compliance with electrical standards.
Applications
- Robot guidance
- Position determination
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP65/IP67 enclosure extends product lifespan and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK PLB-53A0101 3D Snapshot Camera is available for immediate purchase, ideal for industrial robot guidance and position determination applications.
