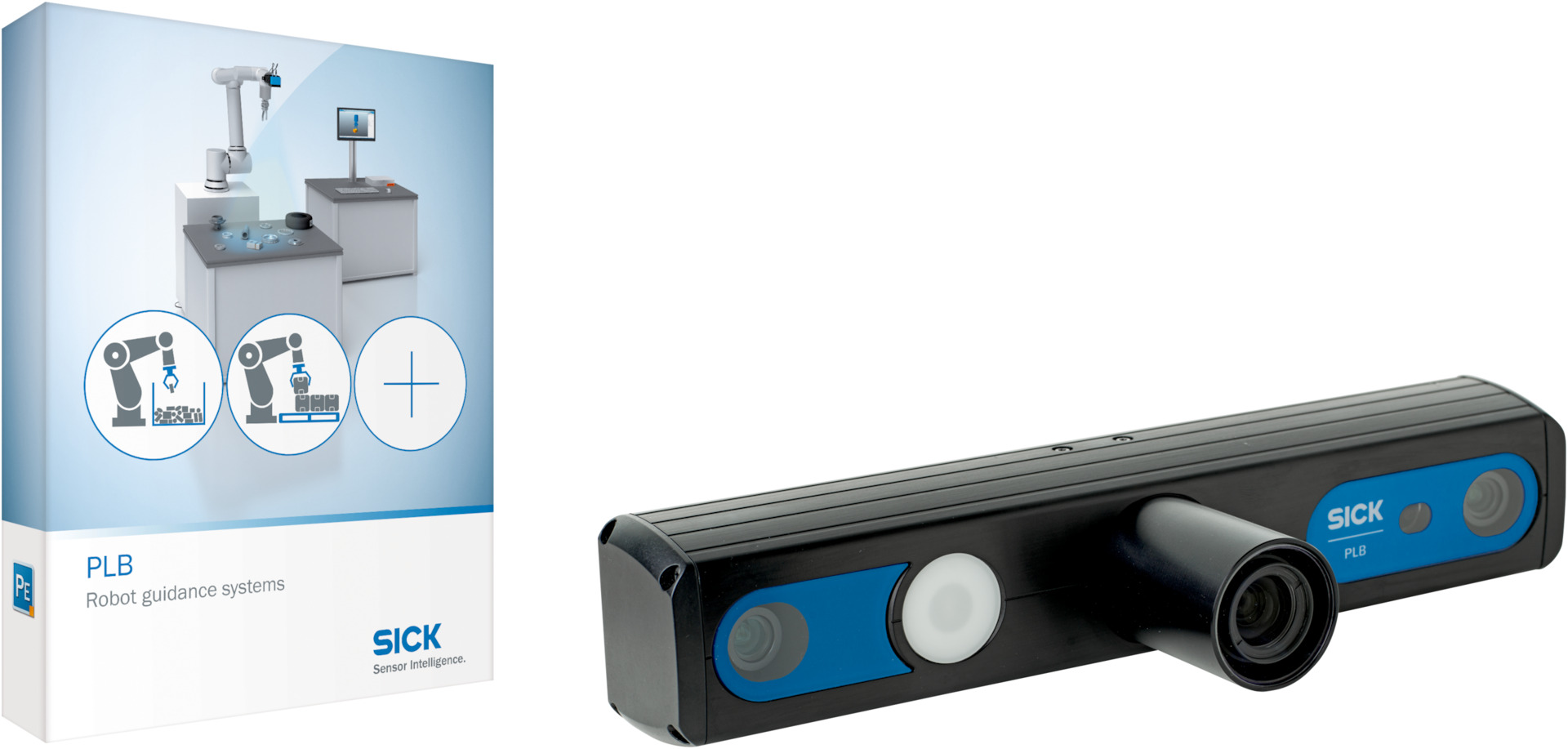

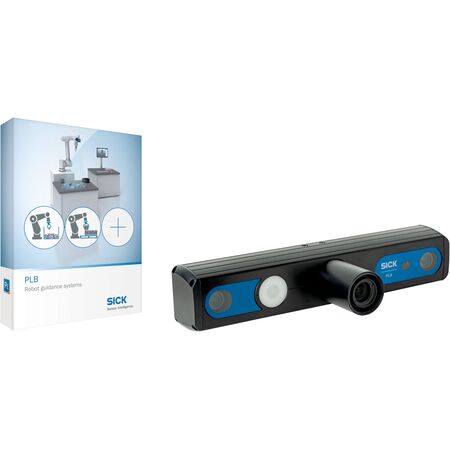

3D Snapshot Camera PLB-53B0101 | High Resolution 0.3-0.4mm | IP65/IP67 Enclosure | by SICK
The 3D Snapshot Camera PLB-53B0101 utilizes advanced 3D snapshot technology with image analysis, providing high resolution from 0.3 mm to 0.4 mm depending on distance. Ideal for robot guidance and position determination, this camera features a medium field of view and a robust IP65/IP67 enclosure, ensuring durability in industrial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: PLB-522
- Field of view: Medium (600 mm x 550 mm x 400 mm)
- Classification: Prime
- Camera type: 3D snapshot
- Image resolution: 0.3 mm to 0.4 mm depending on distance
- Light source: LED, blue, 465 nm, Risk group 1
- Localization principle: Geometrical shape and edge localization
- Technology: 3D snapshot, image analysis
- Connection type: PoE++
- Supply voltage: 24 V DC or PoE PD class 8 (90W)
- Current consumption: 10 A
- Enclosure rating: IP65/IP67
- Part localization time: 0.1 s to 10 s typical
- Part size: approximately > 10 mm x 10 mm x 10 mm
- 2D colour sensor resolution: 2 MP (1920 px x 1200 px)
- 3D sensor resolution: 5 MP (2472 px x 2064 px)
- Ethernet: 2 ports, 1 Gbit/s (camera), 10/100 Mbit/s (robot)
- Protocol: TCP/IP
- Electrical connection: M12 male connector, 8-pin, x-coded
- Operating ambient temperature: 0 °C to +40 °C, non-condensing
- Shock load: 60 g / 1.9 ms, 25 g / 6 ms
- Vibration load: 30-500 Hz / 5 g
- Dimensions (H x L x W): 100mm x 506mm x 58mm
- Weight: 1.16 kg
Key Features
- 3D snapshot camera technology with image analysis
- Medium field of view (600 mm x 550 mm x 400 mm)
- High resolution: 0.3 mm to 0.4 mm depending on distance
- Blue LED light source (465 nm), Risk group 1
- Fast part localization time from 0.1 s to 10 s
- Supports simple and complex part shapes
- 2D colour sensor resolution: 2 MP (1920 px x 1200 px)
- 3D sensor resolution: 5 MP (2472 px x 2064 px)
- Ethernet connectivity with 1 Gbit/s data transmission rate
- Robust IP65/IP67 rated enclosure
- Factory calibrated
Professional Installation Requirements
- Professional installation by a qualified technician is recommended to ensure proper integration and compliance with safety standards.
Applications
- Robot guidance
- Position determination
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP65/IP67 enclosure extends product lifespan and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK PLB-53B0101 3D Snapshot Camera is available for immediate purchase, ideal for industrial robot guidance and position determination applications.
