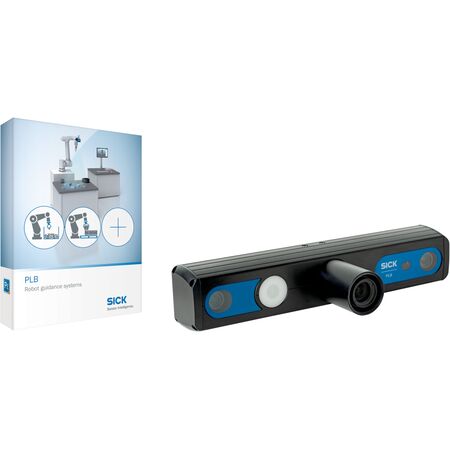

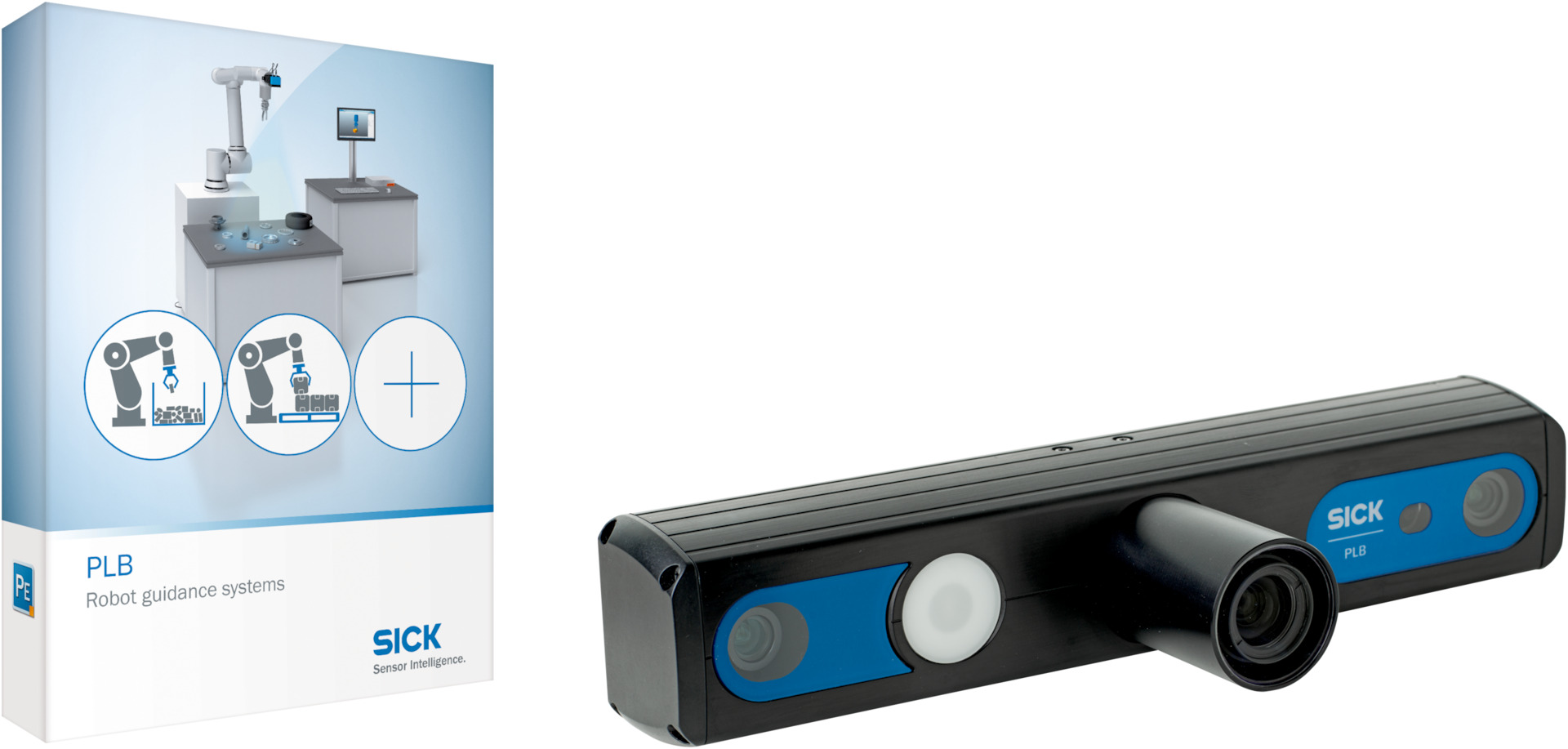

3D Snapshot Camera PLB-53B0102 | High Resolution 5 MP | IP65/IP67 Enclosure | by SICK
The 3D Snapshot Camera PLB-53B0102 is designed for precision in robot guidance and position determination tasks. Featuring advanced 3D snapshot technology with image analysis, it offers high image resolution from 0.2 mm to 0.3 mm, ensuring accurate localization of parts. With an IP65/IP67 rated enclosure, this camera is built to withstand harsh environments, making it ideal for industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: PLB-522
- Field of view: Small
- Classification: Prime
- Camera type: 3D snapshot
- Image resolution: 0.2 mm to 0.3 mm depending on distance
- Light source: LED, blue, 465 nm, Risk group 1
- Localization principle: Geometrical shape and edge localization
- Technology: 3D snapshot, image analysis
- Connection type: PoE++
- Supply voltage: 24 V DC or PoE PD class 8 (90W)
- Current consumption: 10 A
- Enclosure rating: IP65/IP67
- Part localization time: 0.1 s to 10 s typical
- Part size: Approx. > 10 mm x 10 mm x 10 mm
- 2D colour sensor resolution: 2 MP (1920 px x 1200 px)
- 3D sensor resolution: 5 MP (2472 px x 2064 px)
- Ethernet: 2 ports, 1 Gbit/s (camera), 10/100 Mbit/s (robot)
- Protocol: TCP/IP
- Electrical connection: M12 male connector, 8-pin, x-coded
- Ambient temperature operation: 0 °C to +40 °C, non-condensing
- Shock load: 60 g / 1.9 ms, 25 g / 6 ms
- Vibration load: 30-500 Hz / 5 g
- Dimensions (H x L x W): 100mm x 506mm x 58mm
- Weight: 1.16 kg
Key Features
- 3D snapshot camera technology with image analysis
- Small field of view with example volume of 200 mm x 450 mm x 100 mm
- High image resolution of 0.2 mm to 0.3 mm depending on distance
- Blue LED light source at 465 nm, Risk group 1
- Localization based on geometrical shape and edge localization
- IP65/IP67 rated enclosure for robust protection
- Fast part localization time from 0.1 s to 10 s
- Supports simple and complex part shapes
- 2D colour sensor resolution of 2 MP (1920 px x 1200 px)
- 3D sensor resolution of 5 MP (2472 px x 2064 px)
- Ethernet connectivity with 1 Gbit/s data transmission rate
- Factory calibrated for immediate use
Professional Installation Requirements
- Professional installation by a qualified technician or engineer is recommended to ensure proper integration and compliance with electrical standards.
Applications
- Robot guidance
- Position determination tasks
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP65/IP67 enclosure extends product lifespan reducing waste
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The SICK PLB-53B0102 3D Snapshot Camera is available for immediate purchase, ideal for industrial robot guidance and position determination applications.
