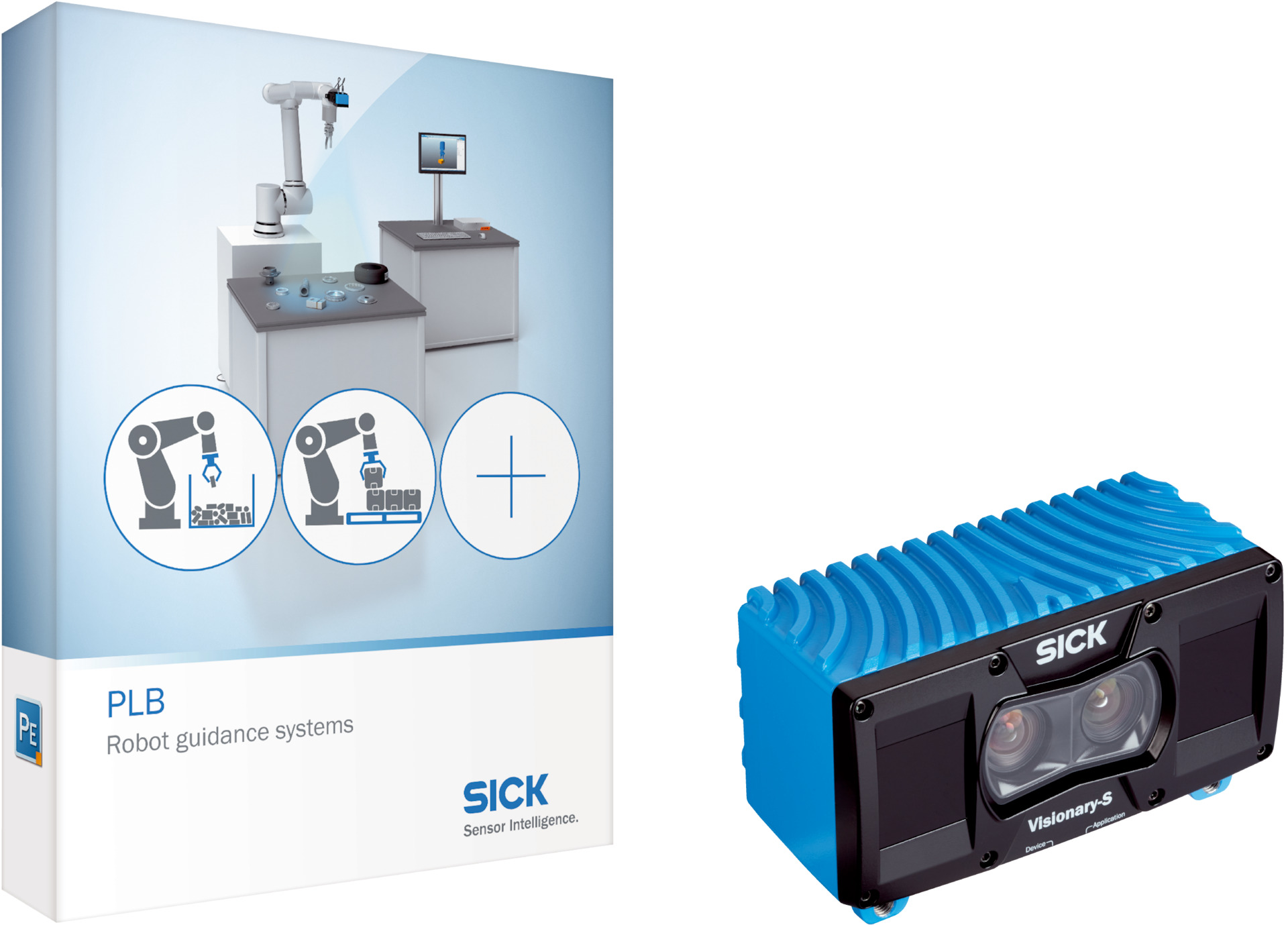

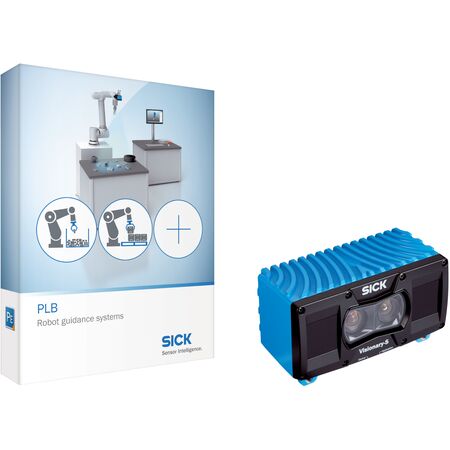

3D Snapshot Camera SICK PLB-5320100 | Large Field of View | Infrared Light Source | IP67 Rated | by SICK
The SICK PLB-5320100 3D Snapshot Camera features a large field of view and an infrared light source at 808 nm, making it ideal for robot guidance and position determination applications. With fast part localization times of 1 to 3 seconds and IP67 rated protection, this camera is built for reliable performance in industrial environments, ensuring accurate and efficient operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: PLB-510
- Field of view: Large
- Classification: Prime
- Tasks: Position determination
- Camera type: 3D snapshot
- Example volume of view: 1000 mm x 900 mm x 1000 mm
- Image resolution: 3 mm to 5 mm depending on distance
- Light source: Infrared, 808 nm
- Laser class: 1
- Localization principle: Geometrical shape and edge localization
- Technology: 3D snapshot, image analysis
- Connection type: Male connector M12, 17-pin
- Supply voltage: 24 V DC, ± 15%
- Current consumption: 3 A
- Enclosure rating: IP67
- Part localization time: 1 s to 3 s typical
- Part size: Approximately > 100 mm x 100 mm x 100 mm
- Part characteristics: Simple part shapes
- Ethernet data transmission rate: 1 Gbit/s (camera), 10/100 Mbit/s (robot)
- Protocol: TCP/IP (camera)
- Electrical connection: M12 male connector, 8-pin, x-coded
- Ambient temperature operation: 0 °C to +40 °C, non-condensing
- Shock load: EN 60068-2-27:2009
- Vibration load: EN 60068-2-6, EN 60068-2-64
- Dimensions (H x L x W): 78mm x 162mm x 93mm
- Weight: 1.7 kg
Key Features
- Large field of view
- 3D snapshot camera type
- Infrared light source at 808 nm
- Laser class 1 for safety
- Geometrical shape and edge localization technology
- IP67 rated enclosure for protection
- Fast part localization time of 1 to 3 seconds
- Supports simple part shapes larger than 100 mm x 100 mm x 100 mm
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper integration and compliance with safety standards.
Applications
- Robot guidance
- Position determination
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Non-contact measurement reduces wear and tear on parts
- Energy-efficient infrared light source
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK PLB-5320100 3D Snapshot Camera is available for immediate purchase, ideal for industrial robot guidance and position determination applications.
