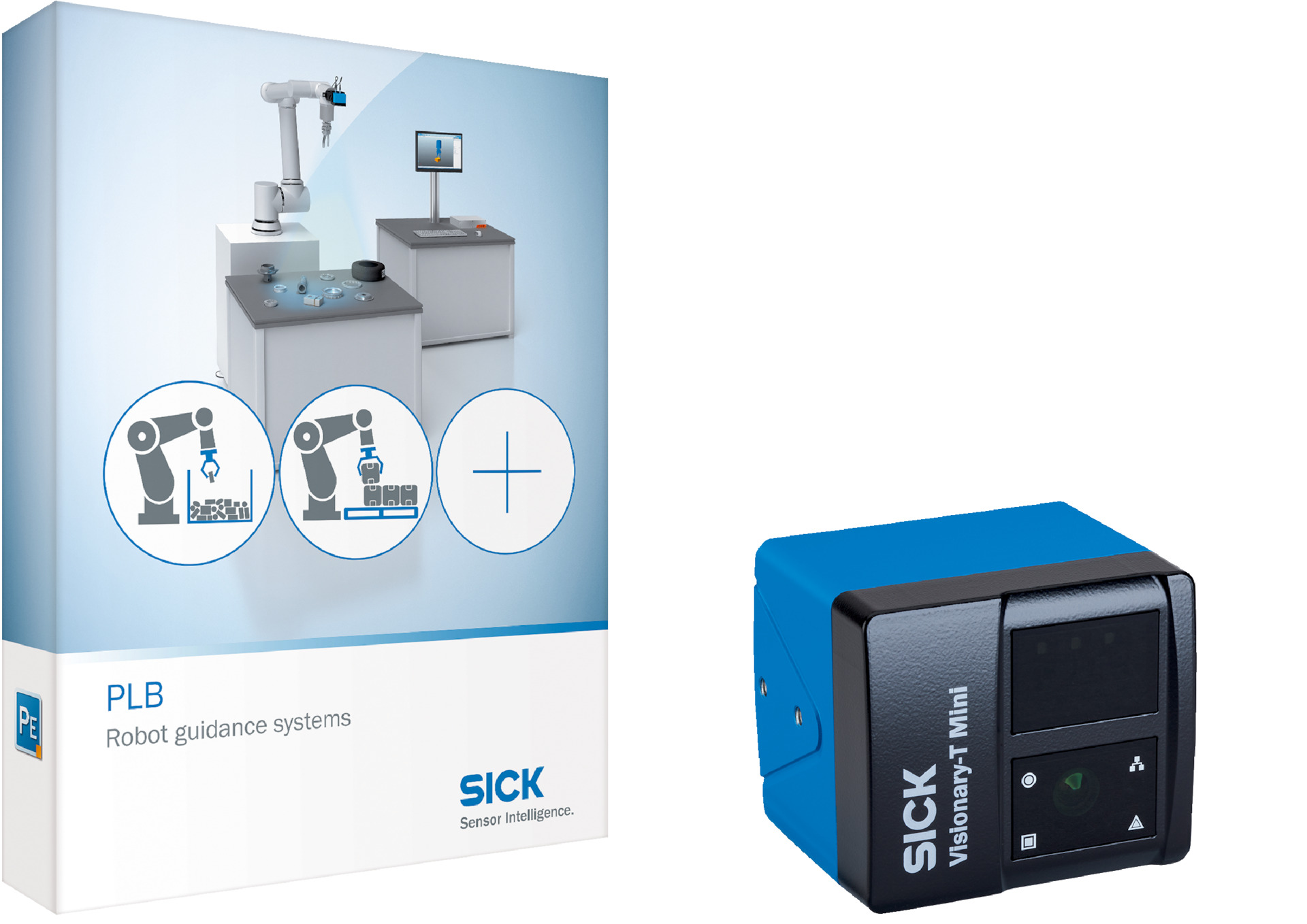

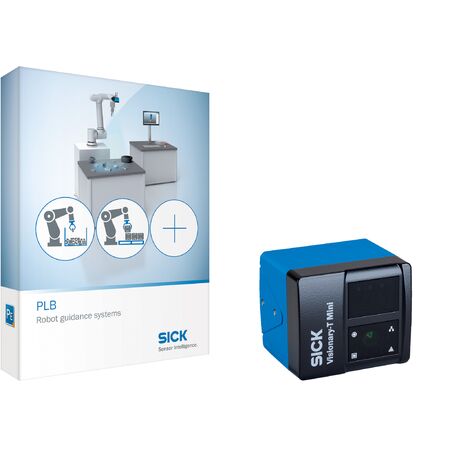

3D Snapshot Camera SICK PLB-5380100 | Large Field of View | Infrared Light Source | IP65/IP67 Rated | by SICK
The SICK PLB-5380100 3D Snapshot Camera features a large field of view and operates with an infrared light source at 855 nm, making it ideal for robot guidance and position determination. With a fast localization time of 1 to 3 seconds and an IP65/IP67 rated enclosure, this camera is built for robust industrial applications, ensuring reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: PLB-540
- Field of view: Large
- Classification: Prime
- Tasks: Position determination
- Camera type: 3D snapshot
- Example volume of view: 1000 mm x 900 mm x 1000 mm
- Image resolution: 3 mm to 5 mm depending on distance
- Light source: Infrared, 855 nm
- Laser class: 1
- Localization principle: Geometrical shape and edge localization
- Technology: 3D snapshot, image analysis
- Connection type: Male connector M12, 8-pin
- Supply voltage: 24 V DC, ± 15%
- Current consumption: 3 A
- Enclosure rating: IP65 / IP67
- Part localization time: 1 s to 3 s typical
- Part size: Approximately > 100 mm x 100 mm x 100 mm
- Data transmission rate: 1 Gbit/s (camera), 10/100 Mbit/s (robot)
- Protocol: TCP/IP (camera)
- Electrical connection: M12 male connector, 8-pin, x-coded
- Ambient temperature operation: 0 °C to +40 °C, non-condensing
- Shock load: 30 g / 11 ms
- Vibration load: 10-500 Hz / 5 g
- Dimensions (H x L x W): 77mm x 80mm x 70mm
- Weight: 0.52 kg
Key Features
- Large field of view
- 3D snapshot camera type
- Infrared light source at 855 nm
- Laser class 1 for safety
- Geometrical shape and edge localization principle
- Image resolution between 3 mm and 5 mm depending on distance
- IP65 / IP67 rated enclosure for robust protection
- Fast part localization time of 1 to 3 seconds
- Supports simple part shapes larger than 100 mm x 100 mm x 100 mm
Professional Installation Requirements
- Installation by qualified personnel with experience in industrial vision systems and electrical connections is recommended to ensure proper setup and safety.
Applications
- Robot guidance
- Position determination
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient 24 V DC operation reduces power consumption
- Durable IP65/IP67 enclosure extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK PLB-5380100 Visionary-T Mini 3D Snapshot Camera is available for immediate purchase, ideal for industrial robot guidance and position determination applications.
