3D Snapshot Sensor | 0.28m to 37m Range | IP67/IP69K Rated | 1024px Resolution | by SICK

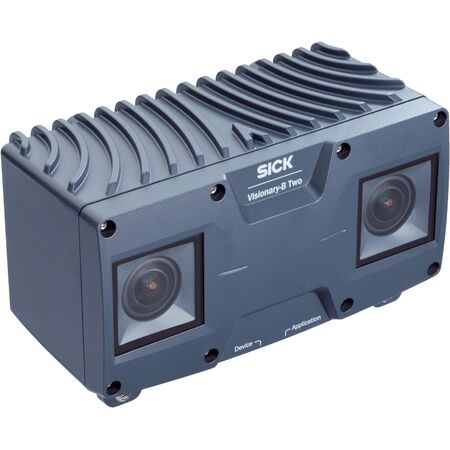

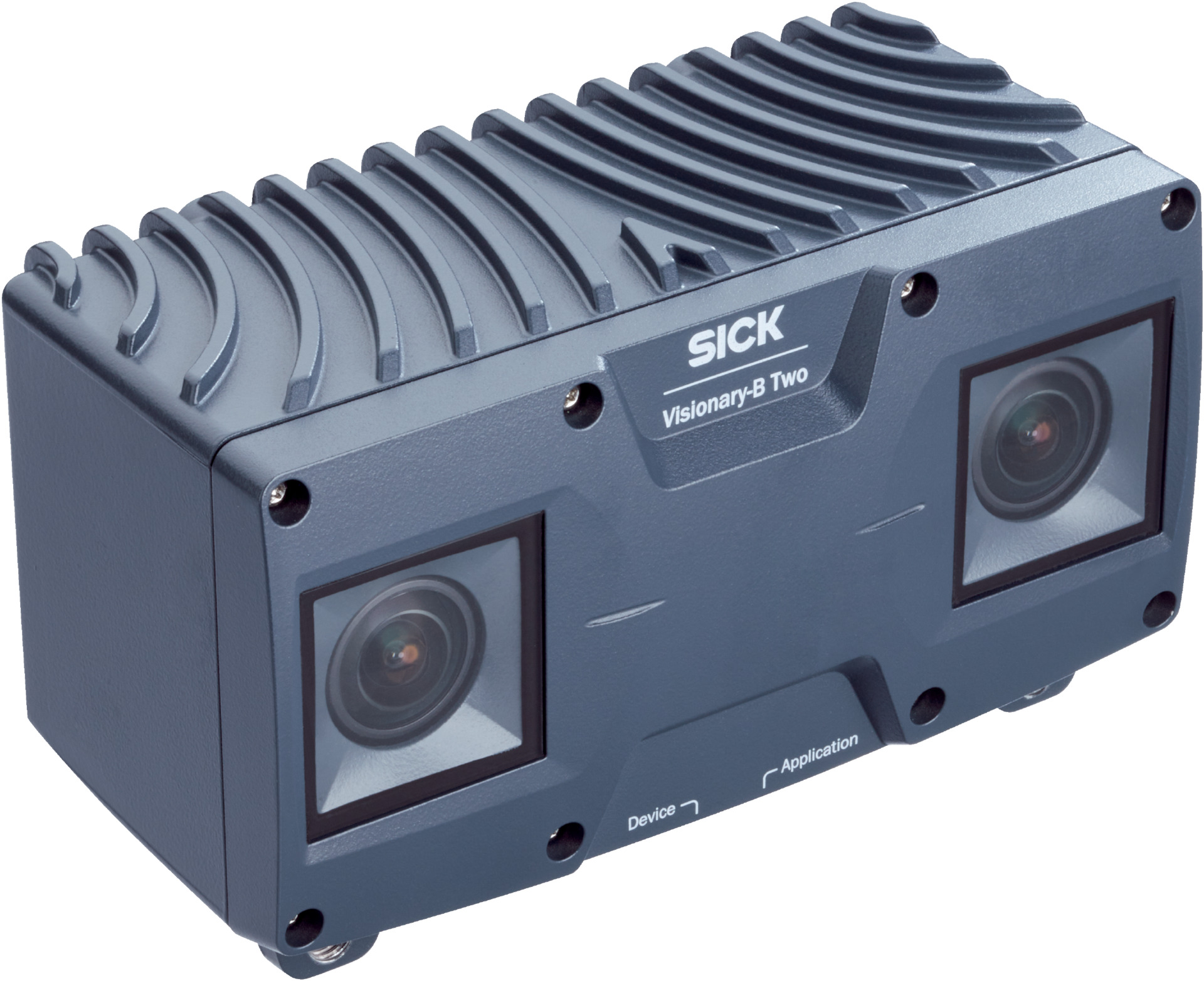

The 3D Snapshot Sensor utilizes advanced 3D snapshot stereoscopy technology, offering a wide working range from 0.28m to 37m and a configurable field of view of 130° x 105° or 90° x 60°. Ideal for industrial automation and object detection, this sensor features a high resolution of 1024 px x 576 px and operates in harsh environments with an IP67/IP69K rating, ensuring durability and reliability in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 3D snapshot stereoscopy
- Working range: 0.28 m to 16 m (standard), 0.65 m to 37 m (extended)
- Field of view: 130° x 105° or 90° x 60° (configurable)
- Exposure mode: Automatic or manual, single or multiple (HDR)
- Sensor resolution: 1024 px x 576 px
- Processor: 1.2 GHz, 4 × ARM Cortex A72
- Scan/frame rate: up to 30 fps
- Measurement accuracy varies with distance, approx. 2 mm to 2800 mm
- Repeatability varies with distance, approx. 0.5 mm to 260 mm
- Power supply: 10 V DC to 57 V DC
- Power consumption: ≤ 13 W
- Peak current: 1.6 A
- Output voltage: 9 V to 57 V
- Output current: ≤ 100 mA
- Connection types: M12 17-pin power/I/O, M12 8-pin Gigabit Ethernet
- Enclosure rating: IP67, IP69, IPX9K
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +85 °C
- EMC compliance: EN ISO 14982, EN ISO 13766-1, EN 12895+A1
- Vibration resistance: 5 g, 10 Hz to 500 Hz
- Shock resistance: 100 g, 6 ms
- Communication: Gigabit Ethernet, TCP/IP, UDP/IP, GigE Vision
- Software: SICK AppStudio, SICK AppManager, SOPASair
- API: Python, C++, GenIStream, GenICam GenTL
- Dimensions (H x L x W): 79.3mm x 162mm x 96.6mm
- Weight: 1.5 kg
Key Features
- 3D snapshot stereoscopy technology
- Programmable, streaming, and configurable
- Pre-calibrated with global-shutter shutter technology
- Wide working range from 0.28 m to 37 m
- Configurable field of view: 130° x 105° or 90° x 60°
- Automatic or manual exposure mode with HDR support
- High sensor resolution of 1024 px x 576 px
- Processor: 1.2 GHz, 4 × ARM Cortex A72
- Scan/frame rate up to 30 fps
- IP67, IP69, IPX9K rated enclosure for harsh environments
- Operating temperature range from -40 °C to +60 °C
- Supports Gigabit Ethernet with GigE Vision standard
- Multiple digital inputs and outputs with voltage ranges
- Includes inertial measurement unit (IMU) and intrinsic camera parameters
Professional Installation Requirements
- Installation by qualified professionals is recommended to ensure proper configuration, calibration, and integration with existing systems.
Applications
- Detecting standard objects
- Measuring dimension, contour, and volume
- Protecting objects such as vehicles
- Identifying and classifying objects
- Determining 3D position
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP67/IP69 rated housing reduces need for frequent replacements
- Energy-efficient operation with power consumption ≤ 13 W
- Supports precise measurements reducing material waste in industrial applications
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK V3S146-1AAAAAA 3D snapshot stereoscopy sensor is available for immediate purchase. Ideal for industrial automation, vehicle protection, object detection, and 3D measurement applications.
