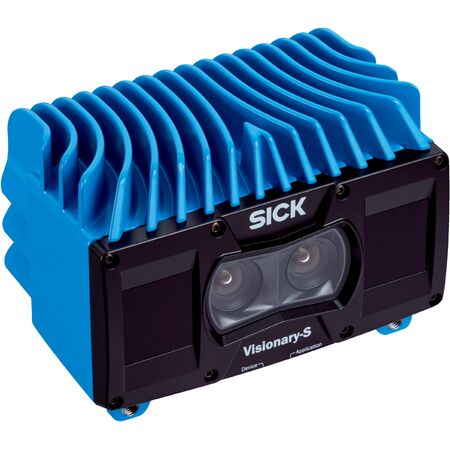

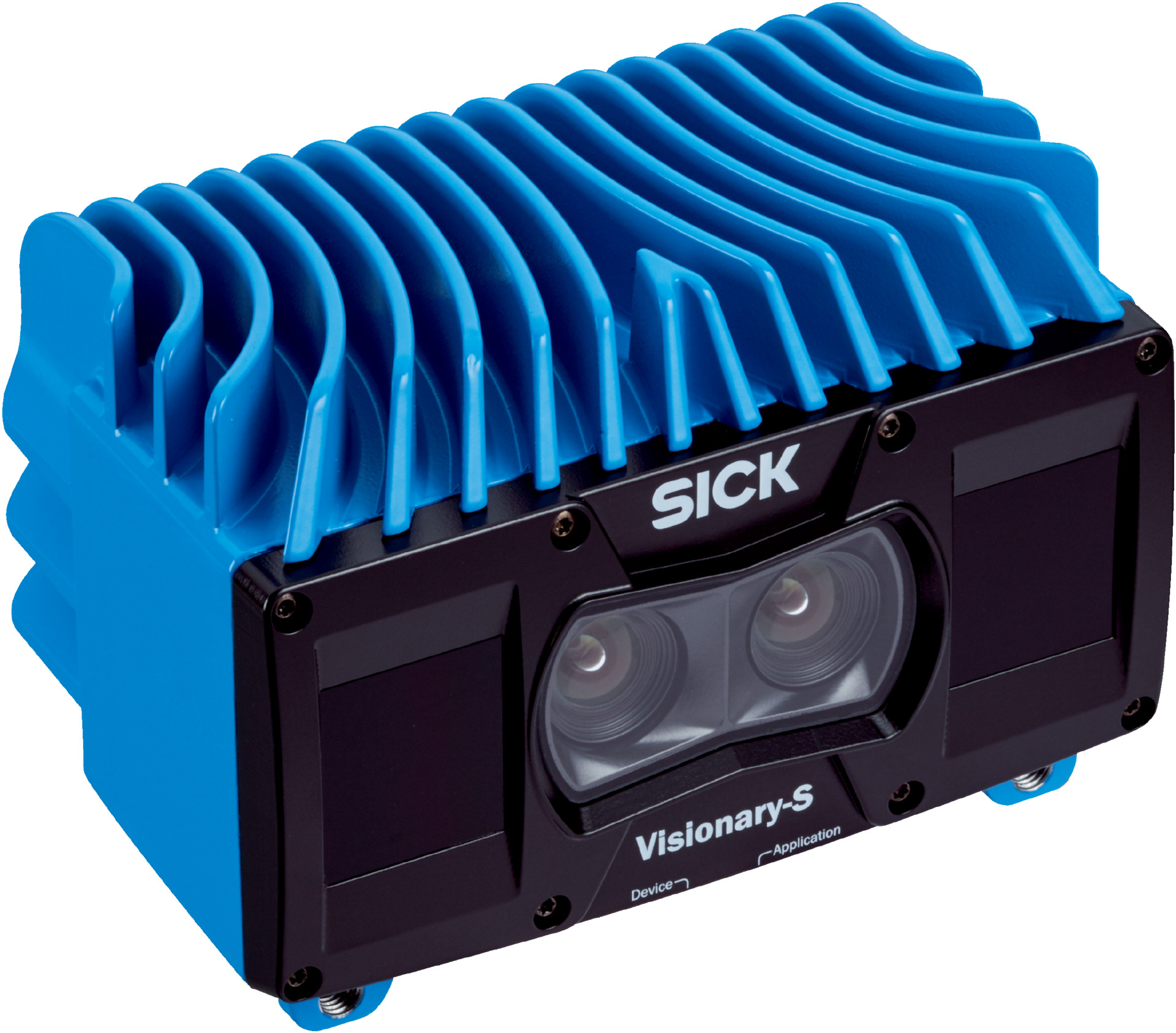

3D Snapshot Sensor | 0.5m to 6.5m Range | 30 fps Scan Rate | IP67 Rated | by SICK
The 3D Snapshot Sensor utilizes advanced 3D snapshot stereoscopy technology, offering a working range of 0.5m to 6.5m and a high scan rate of 30 fps. Perfect for industrial automation and robotics, this sensor provides precise measurements and object classification, ensuring reliable performance in various applications. With an IP67 rating, it is built to withstand harsh environments while delivering exceptional data accuracy.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 3D snapshot stereoscopy
- Working range: 0.5 m to 6.5 m (up to 65 m optional)
- Field of view: 60° x 50°
- Angular resolution: 0.094° x 0.098°
- Illumination: Integrated infrared laser, 808 nm, laser class 1
- Sensor resolution: 640 px x 512 px
- Scan/frame rate: 30 fps, up to 9,850,000 3D data points/s
- Repeatability: ≤ 0.25 mm at 0.5 m scanning range
- Power supply: 24 V DC ± 15%
- Power consumption: 19 W without digital I/Os
- Peak current: 3 A
- Connection types: M12 17-pin power/I/O, M12 8-pin Gigabit Ethernet
- Data transmission rate: 700 Mbit/s via Gigabit Ethernet (TCP/IP)
- Enclosure rating: IP67
- Protection class: III
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Weight: 2.2 kg with cooling fins
- Dimensions (H x L x W): 104mm x 162mm x 116mm
- Weight: 2.2 kg
Key Features
- 3D snapshot stereoscopy technology
- Streaming and configurable with pre-calibrated setup
- Working range from 0.5 m to 6.5 m (up to 65 m optional)
- Field of view 60° x 50° with angular resolution of 0.094° x 0.098°
- Integrated infrared laser illumination (808 nm), laser class 1
- High sensor resolution of 640 px x 512 px
- Scan/frame rate of 30 fps with up to 9,850,000 3D data points per second
- Repeatability ≤ 0.25 mm at 0.5 m scanning range
- Complete data stream combining distance and RGB values
- Gigabit Ethernet communication with 700 Mbit/s data transmission rate
- Robust IP67 rated enclosure with shock and vibration resistance
- Operating temperature range 0 °C to +50 °C with cooling fins
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper configuration, calibration, and integration with existing systems.
Applications
- Detecting standard objects
- Measuring dimension, contour, and volume
- Classifying and identifying objects
- Localizing, navigating, and guiding
- 3D position determination
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Integrated infrared laser reduces energy consumption compared to traditional lighting
- Robust design minimizes need for frequent replacements, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK V3S102-1AAAAAA 3D snapshot stereoscopy sensor is available for immediate purchase. Ideal for industrial automation, robotics, and quality control applications.
