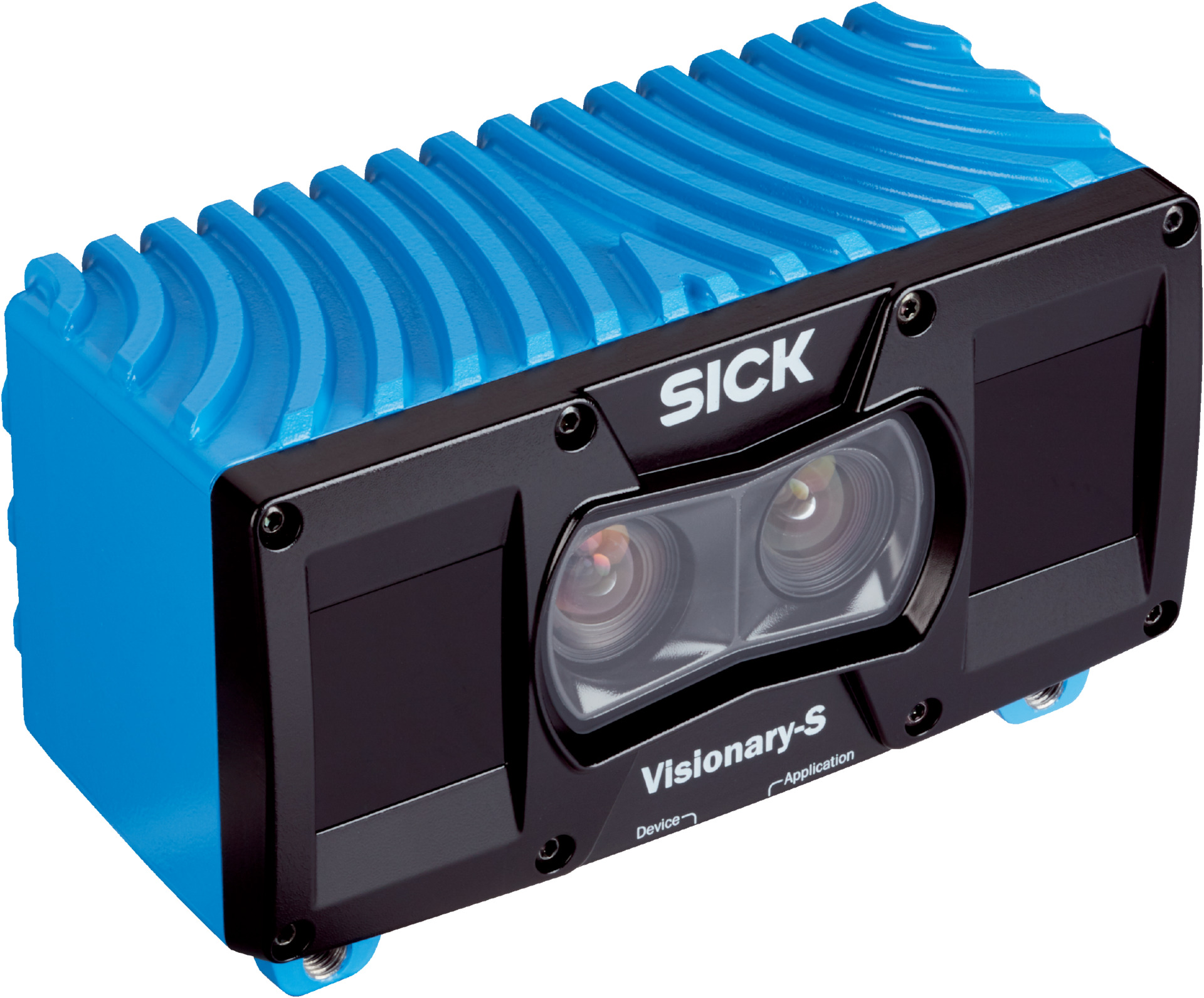

3D Snapshot Sensor | 0.5m to 65m Range | IP67 Rated | 30 fps | by SICK
The 3D Snapshot Sensor is designed for precision in industrial automation, offering a working range of 0.5m to 65m and a field of view of 60° x 50°. With integrated infrared laser illumination and a high sensor resolution of 640 px x 512 px, it excels in detecting, measuring, and classifying objects. Ideal for robotics and quality control applications, this sensor ensures reliable performance with a robust IP67 enclosure.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 3D snapshot stereoscopy
- Working range: 0.5 m to 65 m
- Field of view: 60° x 50°
- Angular resolution: 0.094° x 0.098°
- Illumination: Integrated infrared laser, 808 nm, laser class 1
- Sensor resolution: 640 px x 512 px
- Processor: 1.2 GHz, 4 × ARM Cortex A72
- Scan/frame rate: 30 fps, up to 9,850,000 3D data points/s
- Repeatability: ≤ 0.25 mm at 0.5 m
- Power supply: 24 V DC ± 15%
- Power consumption: 19 W without digital I/Os
- Peak current: 3 A
- Enclosure rating: IP67
- Protection class: III
- Connection types: M12 17-pin power/I/O, M12 8-pin Gigabit Ethernet
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Dimensions (H x L x W): 78mm x 162mm x 93mm
- Weight: 1.7 kg
Key Features
- 3D snapshot stereoscopy technology
- Programmable and configurable
- Pre-calibrated for immediate use
- Working range from 0.5 m to 65 m
- Field of view 60° x 50° with angular resolution of 0.094° x 0.098°
- Integrated infrared laser illumination (808 nm), laser class 1
- Data processing capabilities with integrated applications
- High sensor resolution of 640 px x 512 px
- Processor: 1.2 GHz, 4 × ARM Cortex A72
- Scan/frame rate of 30 fps with up to 9,850,000 3D data points per second
- Repeatability ≤ 0.25 mm at 0.5 m scanning range
- Robust IP67 rated enclosure
- Multiple interfaces including Gigabit Ethernet and digital I/Os
- Operating temperature range 0 °C to +40 °C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper configuration, calibration, and integration with existing systems.
Applications
- Detecting standard objects
- Measuring dimension, contour, and volume
- Classifying and identifying objects
- Localizing, navigating, and guiding
- 3D position determination
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Integrated infrared laser reduces energy consumption compared to traditional lighting
- Pre-calibrated device minimizes setup time and waste
- Durable IP67 housing extends product lifespan reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

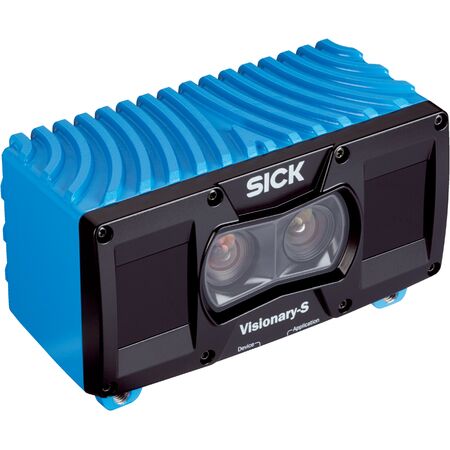

The SICK V3S142-1AABAAB 3D snapshot stereoscopy sensor is available for immediate purchase, ideal for industrial automation, robotics, and quality control applications.
