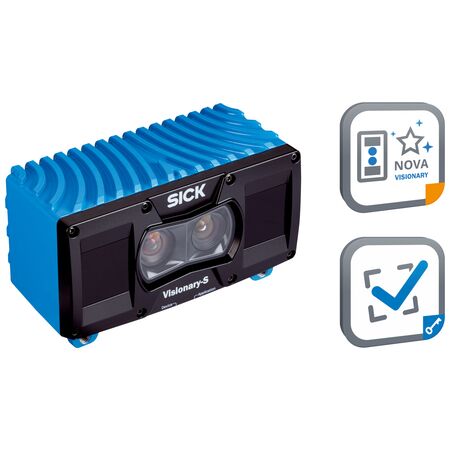

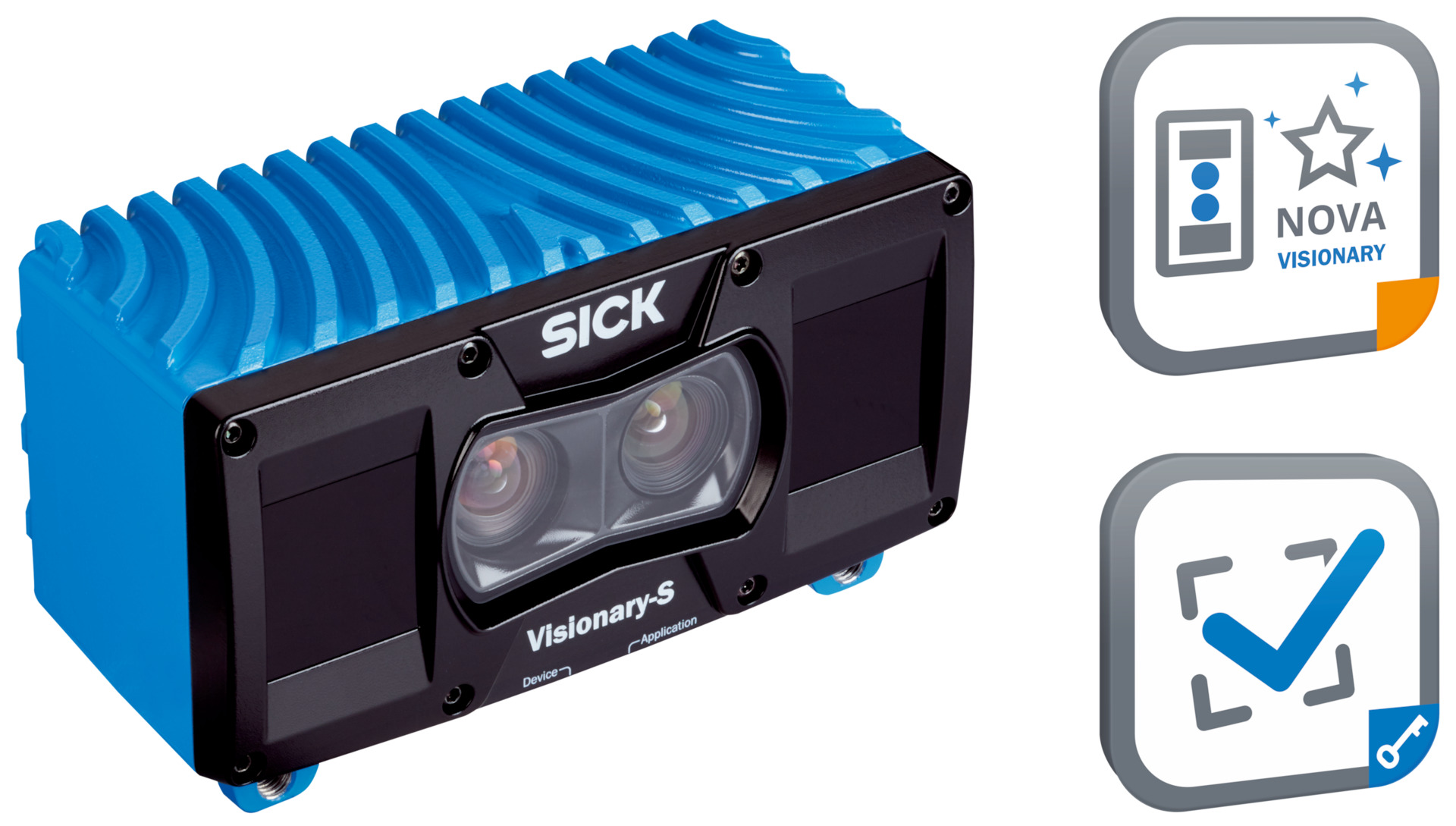

3D Snapshot Sensor NOVA QI | Integrated Infrared Laser | 0.5m to 65m Range | IP67 Rated | by SICK
The 3D Snapshot Sensor NOVA QI utilizes advanced 3D stereoscopy technology, featuring an integrated infrared laser for illumination and a working range of 0.5m to 65m. Ideal for quality inspection in manufacturing, this sensor offers high resolution and fast scanning capabilities, making it perfect for precise dimension and volume measurements.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 3D snapshot stereoscopy
- Programmable and configurable with pre-installed SensorApp
- Working range: 0.5 m to 65 m
- Field of view: 60° x 50°
- Angular resolution: 0.094° x 0.098°
- Illumination: Integrated infrared laser, 808 nm, laser class 1
- Processor: 1.2 GHz, 4× ARM Cortex A72
- Sensor resolution: 640 px x 512 px
- Scan/frame rate: 30 fps, up to 9,850,000 3D data points per second
- Repeatability: ≤ 0.25 mm at 0.5 m scanning range
- Power supply: 24 V DC ± 15%
- Power consumption: 19 W without digital I/Os
- Peak current: 3 A
- Enclosure rating: IP67
- Connection types: M12 17-pin power/I/O, M12 8-pin Gigabit Ethernet
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Dimensions (H x L x W): 78mm x 162mm x 93mm
- Weight: 1.7 kg
Key Features
- 3D snapshot stereoscopy technology
- Pre-calibrated and programmable
- Integrated infrared laser illumination (808 nm), laser class 1
- Working range from 0.5 m to 65 m
- Field of view 60° x 50° with angular resolution of 0.094° x 0.098°
- Integrated SICK Nova Visionary-S SensorApp with Quality Inspection license
- High sensor resolution of 640 px x 512 px
- Processor: 1.2 GHz, 4× ARM Cortex A72
- Scan/frame rate: 30 fps, up to 9,850,000 3D data points per second
- Repeatability ≤ 0.25 mm at 0.5 m scanning range
- IP67 rated enclosure for robust protection
- Multiple interfaces including Gigabit Ethernet and digital I/Os
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper configuration, calibration, and integration with existing systems.
Applications
- Quality inspection in manufacturing
- 3D position determination
- Dimension, contour, and volume measurement
- Level measurement
- Presence checks and quality inspections using 3D machine vision
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Integrated infrared laser reduces need for external lighting, lowering energy consumption
- Pre-calibrated device reduces setup time and waste
- Durable IP67 housing extends product life and reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK V3S142-1AABABB NOVA QI sensor is available for immediate purchase, ideal for industrial quality inspection and 3D measurement applications.
