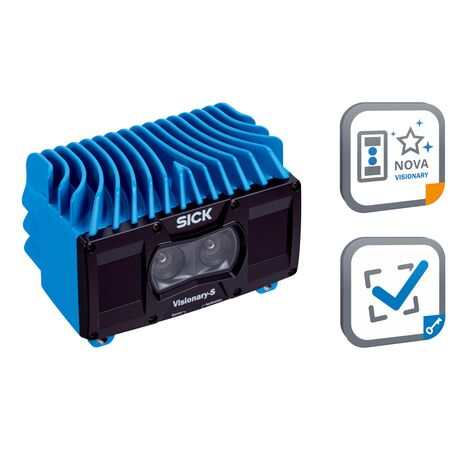

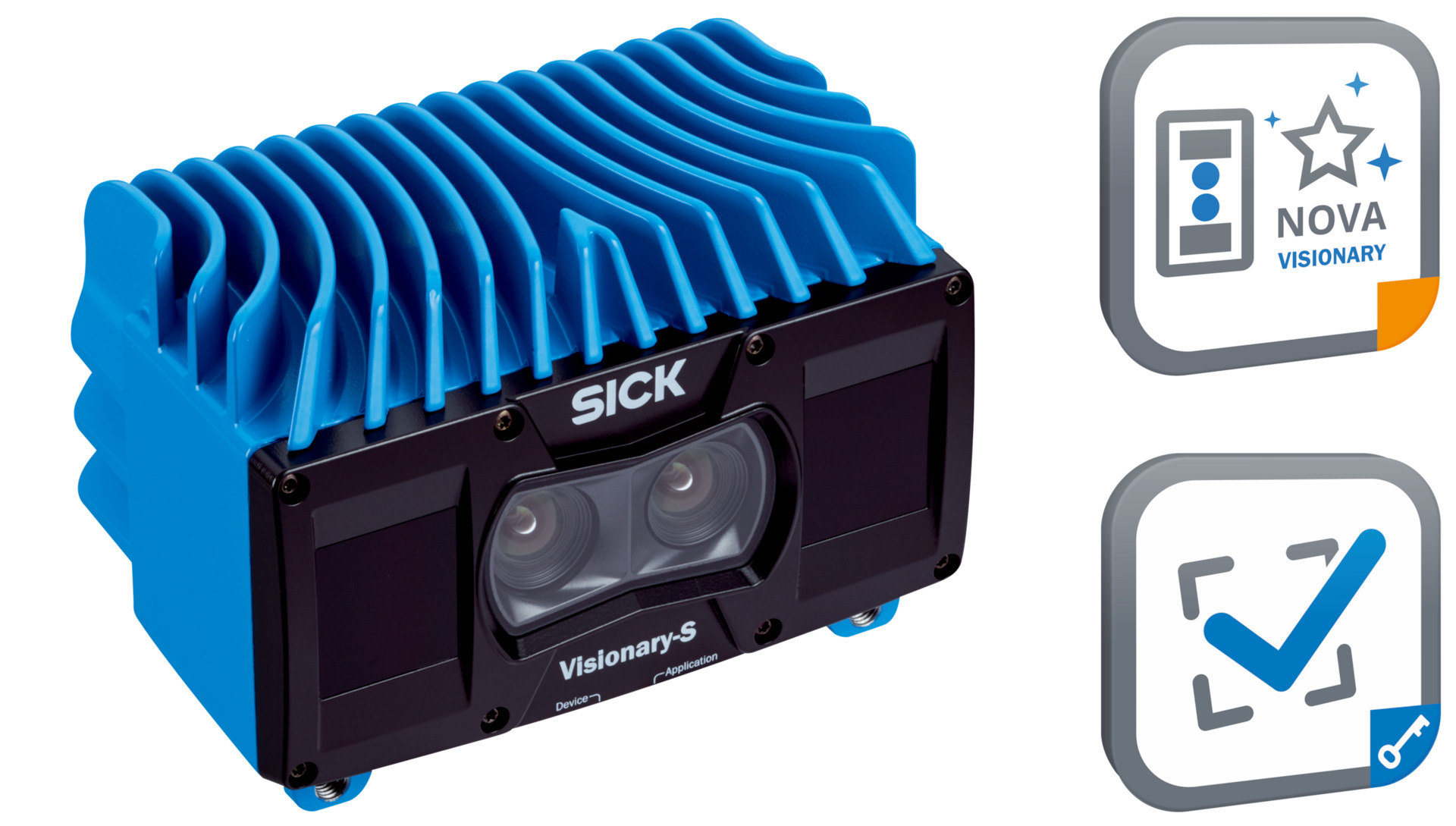

3D Snapshot Sensor SICK NOVA QI | 640 px x 512 px Resolution | IP67 Rated | by SICK
The SICK NOVA QI 3D Snapshot Sensor utilizes advanced 3D snapshot stereoscopy technology, offering a high resolution of 640 px x 512 px and a fast scan rate of 30 fps. Ideal for quality inspection in manufacturing, this sensor operates within a working range of 0.5 m to 65 m and features an IP67 rated enclosure for robust protection against dust and water. With integrated infrared laser illumination, it ensures precise measurements and reliable performance in various industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 3D snapshot stereoscopy
- Sensor resolution: 640 px x 512 px
- Processor: 1.2 GHz, 4× ARM Cortex A72
- Scan/frame rate: 30 fps, up to 9,850,000 3D data points/s
- Repeatability: ≤ 0.25 mm at 0.5 m scanning range
- Working range: 0.5 m to 65 m
- Field of view: 60° x 50°
- Angular resolution: 0.094° x 0.098°
- Illumination: Integrated infrared laser, 808 nm, laser class 1
- Power supply: 24 V DC ± 15%
- Power consumption: 19 W (without digital I/Os)
- Peak current: 3 A
- Enclosure rating: IP67
- Connection types: M12 17-pin power/I/O, M12 8-pin Gigabit Ethernet
- Digital inputs: 2, Digital outputs: 4
- Operating temperature: 0 °C to +50 °C with cooling fins
- Dimensions (H x L x W): 104mm x 162mm x 116mm
- Weight: 2.2 kg
Key Features
- 3D snapshot stereoscopy technology
- Pre-calibrated and programmable
- Integrated infrared laser illumination (808 nm), laser class 1
- High sensor resolution of 640 px x 512 px
- Field of view 60° x 50° with angular resolution 0.094° x 0.098°
- Working range from 0.5 m to 65 m
- Integrated SICK Nova Visionary-S SensorApp with Quality Inspection license
- IP67 rated enclosure for robust protection
- Multiple interfaces including Gigabit Ethernet and digital I/Os
- Fast scan/frame rate of 30 fps with up to 9,850,000 3D data points per second
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Quality inspection in manufacturing
- 3D position determination
- Dimension, contour, and volume measurement
- Level measurement
- Object detection and monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Integrated processing reduces need for external computing hardware, lowering energy consumption.
- Durable IP67 rated housing extends product lifespan, reducing waste.
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK V3S142-1AAAABA NOVA QI sensor is available for immediate purchase, ideal for industrial quality inspection and 3D measurement applications.
