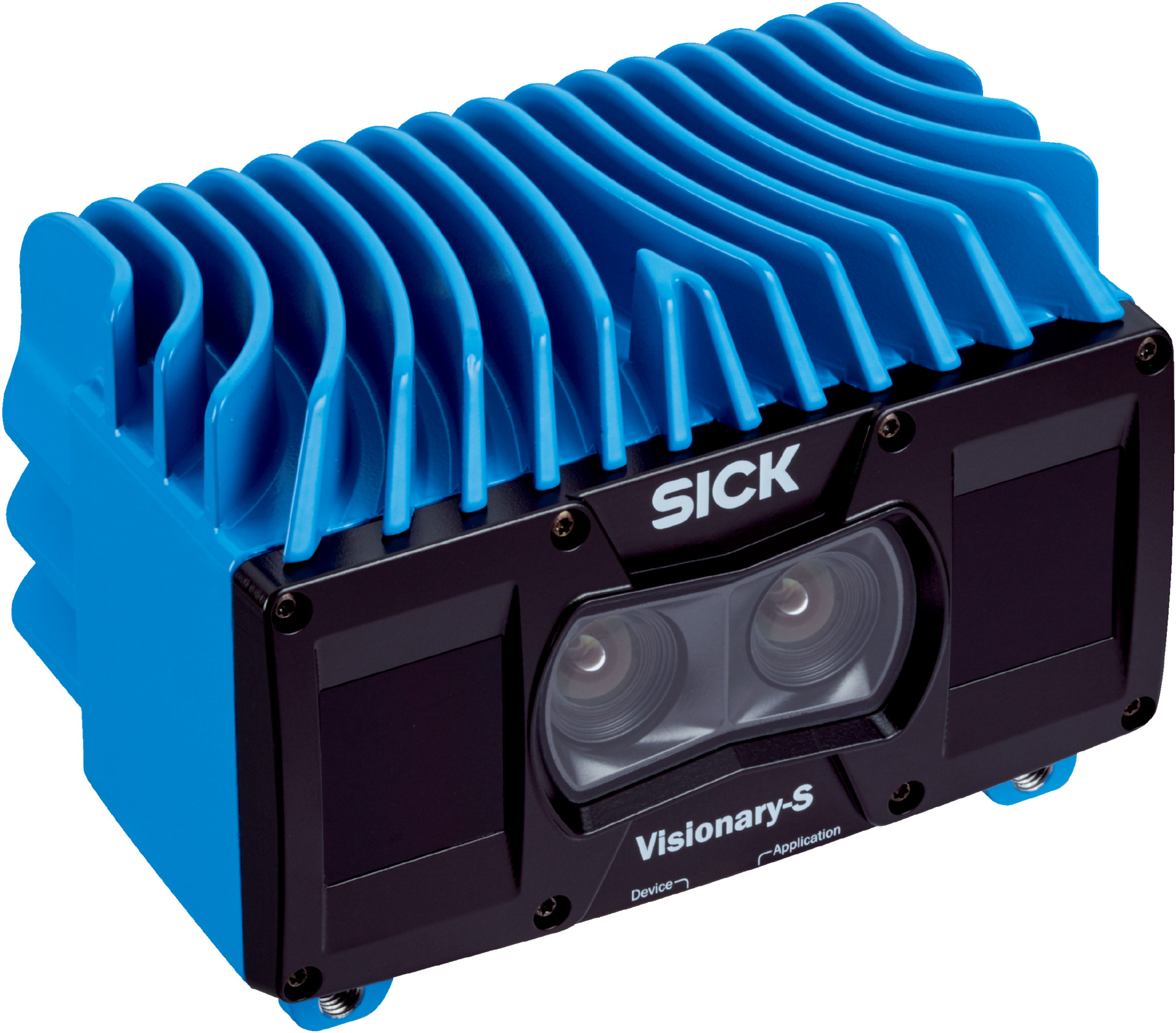

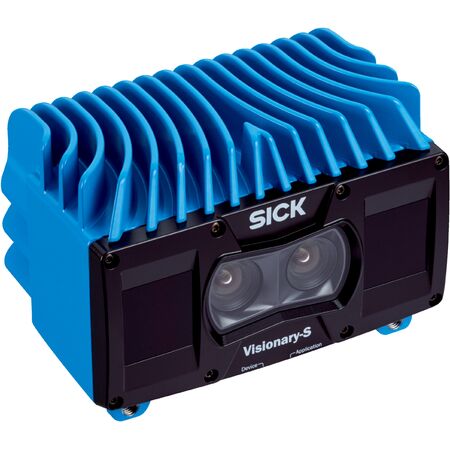

3D Snapshot Sensor V3S142-1AAAAAA | 0.5m to 65m Range | IP67 Rated | by SICK
The 3D Snapshot Sensor V3S142-1AAAAAA utilizes advanced 3D snapshot stereoscopy technology, offering a working range from 0.5 m to 65 m and an impressive field of view of 60° x 50°. Ideal for industrial automation and robotics, this sensor is pre-calibrated for immediate use and features integrated infrared laser illumination for precise measurements. With a robust IP67 enclosure, it ensures reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 3D snapshot stereoscopy
- Working range: 0.5 m to 65 m
- Field of view: 60° x 50°
- Angular resolution: 0.094° x 0.098°
- Illumination: Integrated infrared laser, 808 nm, laser class 1
- Supply voltage: 24 V DC ± 15%
- Power consumption: 19 W without digital I/Os
- Peak current: 3 A
- Enclosure rating: IP67
- Protection class: III
- Housing color: Blue, black
- Window material: PMMA
- Sensor resolution: 640 px x 512 px
- Processor: 1.2 GHz, 4 × ARM Cortex A72
- Scan/frame rate: 30 fps, up to 9,850,000 3D data points/s
- Repeatability: ≤ 0.25 mm at 0.5 m scanning range
- Switch-on delay: < 20 s
- Response time: < 66 ms
- Connection type: Power/I/O M12 17-pin, Gigabit Ethernet M12 8-pin
- Digital inputs: 2
- Digital outputs: 4
- Optical indicators: 2 status LEDs
- Configuration software: SICK AppManager, SICK AppStudio, Web-Interface, Telegram interface
- Operating temperature: 0 °C to +50 °C with cooling fins
- Storage temperature: -20 °C to +70 °C
- EMC: EN 61000-6-2:2005-08 / EN 61000-6-3:2007-01
- Vibration resistance: EN 60068-2-6, EN 60068-2-64
- Shock resistance: EN 60068-2-27
- Dimensions (H x L x W): 104mm x 162mm x 116mm
- Weight: 2.2 kg
Key Features
- 3D snapshot stereoscopy technology
- Programmable and configurable
- Pre-calibrated for immediate use
- Working range from 0.5 m to 65 m
- Field of view 60° x 50°
- Angular resolution of 0.094° x 0.098°
- Integrated infrared laser illumination (808 nm), laser class 1
- IP67 rated enclosure for robust protection
- Data processing capabilities within the device
- High sensor resolution of 640 px x 512 px
- Processor: 1.2 GHz, 4 × ARM Cortex A72
- Scan/frame rate of 30 fps with up to 9,850,000 3D data points per second
- Repeatability ≤ 0.25 mm at 0.5 m scanning range
- Fast response time under 66 ms
- Multiple interfaces including Gigabit Ethernet and digital I/Os
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial sensor systems and electrical safety standards.
Applications
- Detecting standard objects
- Measuring dimension, contour, and volume
- Classifying and identifying objects
- Localizing, navigating, and guiding
- 3D position determination
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Integrated data processing reduces external computing power requirements, lowering energy consumption.
- Durable IP67 housing extends product lifespan, reducing waste.
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The SICK V3S142-1AAAAAA 3D snapshot stereoscopy sensor is available for immediate purchase, ideal for industrial automation, robotics, and quality control applications.
