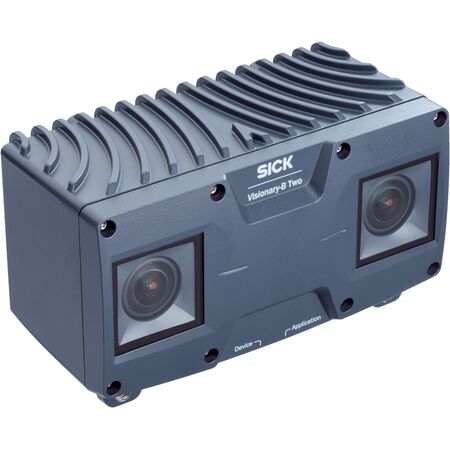

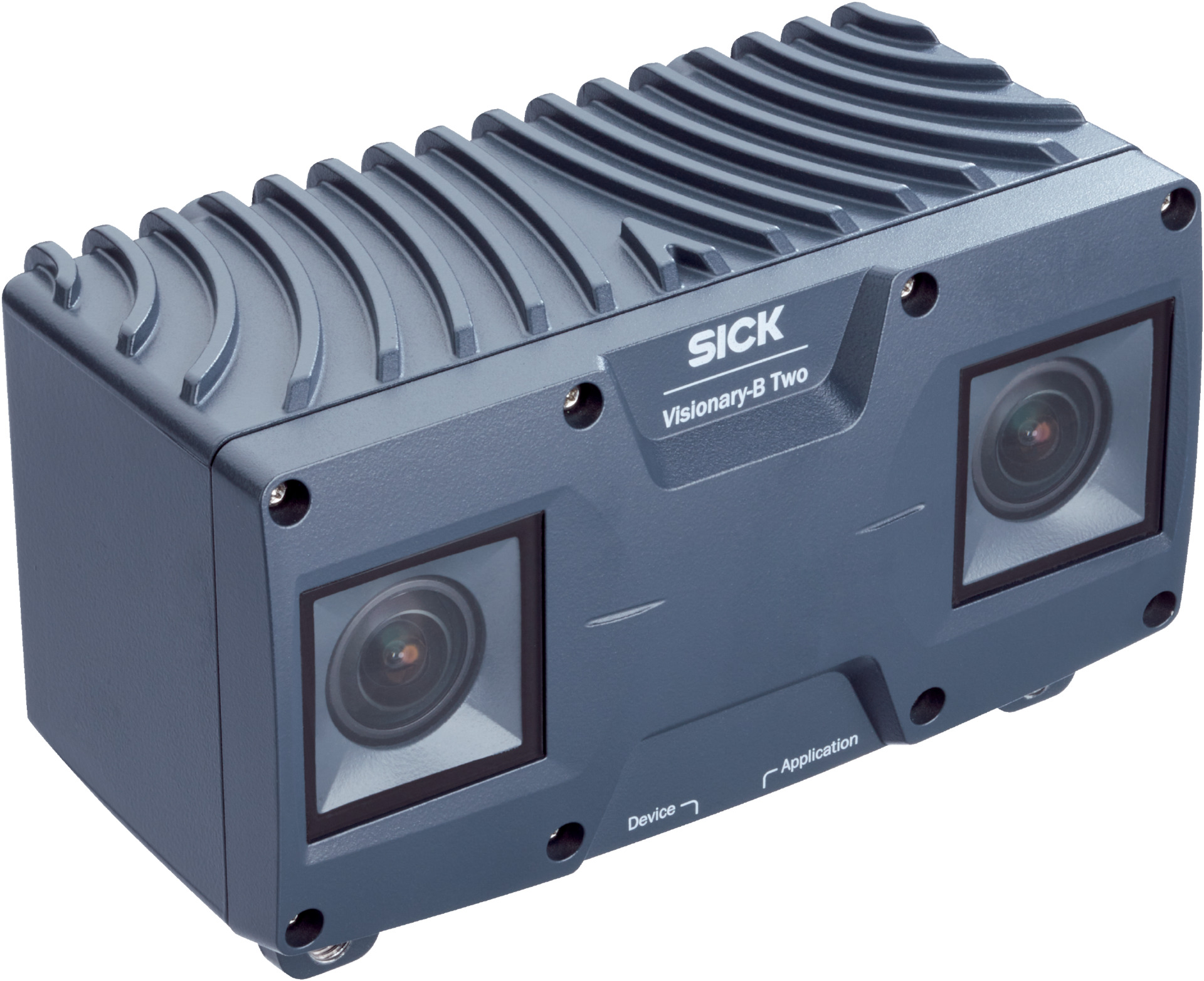

3D Snapshot Sensor V3S146-1ABBAAA | 0.28m to 37m Range | IP67/IP69K Rated | by SICK
The 3D Snapshot Sensor V3S146-1ABBAAA utilizes advanced 3D snapshot stereoscopy technology, offering a working range from 0.28 m to 37 m and a configurable field of view of 130° x 105° or 90° x 60°. Ideal for industrial automation and vehicle protection, this sensor features high resolution and robust IP67/IP69K rated housing, ensuring durability and precision in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 3D snapshot stereoscopy
- Working range: 0.28 m to 16 m (standard), 0.65 m to 37 m (extended)
- Field of view: 130° x 105° or 90° x 60° (configurable)
- Exposure mode: Automatic or manual, single or multiple (HDR)
- Sensor resolution: 1024 px x 576 px
- Processor: 1.2 GHz, 4 × ARM Cortex A72
- AI accelerator: Hailo-8
- Scan/frame rate: up to 30 fps
- Measurement accuracy: approx. 5 mm at 1 m to 2800 mm at 37 m
- Repeatability: approx. 0.5 mm at 1 m to 260 mm at 20 m
- Connection type: Power/I/O M12 17-pin, Gigabit Ethernet M12 8-pin
- Supply voltage: 10 V DC to 57 V DC
- Power consumption: ≤ 17 W
- Enclosure rating: IP67, IP69, IPX9K
- Operating temperature: -40 °C to +60 °C
- Data output: Depth map, 2D image (RGB), IMU, intrinsic camera parameters
- Communication interfaces: Ethernet (GigE Vision), CAN (J1939)
- Dimensions (H x L x W): 79.3mm x 162mm x 96.6mm
- Weight: 1.5 kg
Key Features
- 3D snapshot stereoscopy technology
- Programmable, streaming, and configurable
- Pre-calibrated with global-shutter shutter technology
- Wide working range from 0.28 m to 37 m
- Configurable field of view: 130° x 105° or 90° x 60°
- Automatic or manual exposure mode with HDR support
- High sensor resolution of 1024 px x 576 px
- Integrated AI accelerator (Hailo-8)
- Gigabit Ethernet and CAN communication interfaces
- Robust IP67, IP69, IPX9K rated enclosure
- Wide ambient operating temperature from -40 °C to +60 °C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper configuration, connection, and compliance with safety standards.
Applications
- Detecting standard objects
- Measuring dimension, contour, and volume
- Protecting objects such as vehicles
- Identifying and classifying objects
- Determining 3D position
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP67/IP69 rated housing ensures long product life and reduces waste
- Energy-efficient operation with low power consumption (≤ 17 W)
- Supports precise measurement reducing material waste in industrial applications
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK V3S146-1ABBAAA 3D snapshot stereoscopy sensor is available for immediate purchase. Ideal for industrial automation, vehicle protection, and precise 3D measurement applications.
