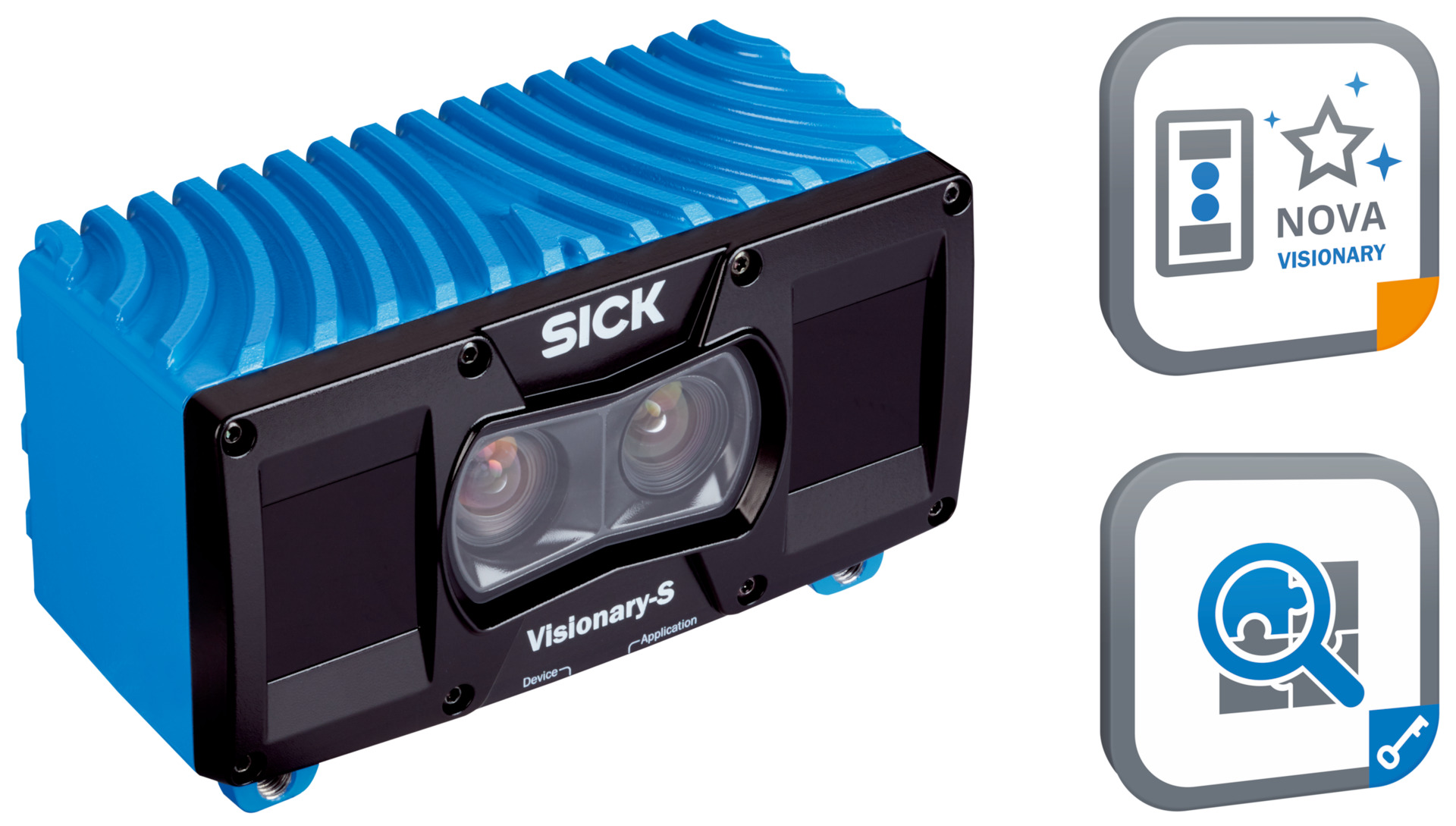

3D Snapshot Stereoscopy Sensor SICK NOVA PI | 640px x 512px Resolution | IP67 Rated | by SICK
The SICK NOVA PI 3D snapshot stereoscopy sensor offers advanced 3D position determination and dimension measurement capabilities, making it ideal for industrial automation and quality inspection. With a working range of 0.5 m to 65 m and integrated infrared laser illumination, this sensor ensures high accuracy and repeatability, perfect for various applications in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 3D snapshot stereoscopy
- Working range: 0.5 m to 65 m
- Field of view: 60° x 50°
- Angular resolution: 0.094° x 0.098°
- Illumination: Integrated infrared laser, 808 nm, laser class 1
- Sensor resolution: 640 px x 512 px
- Processor: 1.2 GHz, 4× ARM Cortex A72
- Scan/frame rate: 30 fps, up to 9,850,000 3D data points/s
- Repeatability: ≤ 0.25 mm at 0.5 m
- Power supply: 24 V DC ± 15%
- Power consumption: 19 W (without digital I/Os)
- Peak current: 3 A
- Enclosure rating: IP67
- Connection types: M12 17-pin power/I/O, M12 8-pin Gigabit Ethernet
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Digital inputs: 2, Digital outputs: 4
- Optical indicators: 2 status LEDs
- Dimensions (H x L x W): 78mm x 162mm x 93mm
- Weight: 1.7 kg
Key Features
- 3D snapshot stereoscopy technology
- Pre-calibrated and programmable
- Integrated infrared laser illumination (808 nm), laser class 1
- Working range from 0.5 m to 65 m
- Field of view 60° x 50° with angular resolution 0.094° x 0.098°
- High sensor resolution of 640 px x 512 px
- Processor: 1.2 GHz, 4× ARM Cortex A72 cores
- Scan/frame rate of 30 fps with up to 9,850,000 3D data points per second
- Repeatability ≤ 0.25 mm at 0.5 m scanning range
- IP67 rated enclosure for robust industrial use
- Multiple interfaces including Gigabit Ethernet and digital I/Os
- Integrated SICK Nova Visionary-S SensorApp with Presence Inspection license
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper configuration and integration with industrial systems.
Applications
- Presence detection and quality inspection in industrial automation
- 3D position determination and dimension measurement
- Level measurement and contour/volume measurement tasks
Standards & Compliance
- Complies with AS/NZS 61000-6-2:2005-08 / AS/NZS 61000-6-3:2007-01 for electromagnetic compatibility
- Complies with AS/NZS 60950 for safety of IT and communication equipment
Environmental Benefits
- Integrated infrared laser reduces energy consumption compared to traditional lighting
- Pre-calibrated device minimizes setup time and resource use
- Robust IP67 housing extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now

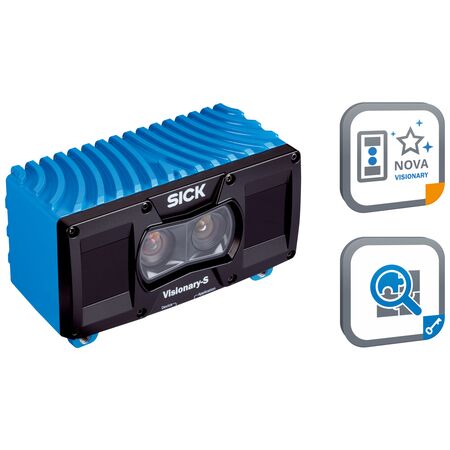

The SICK V3S142-1AABABB NOVA PI 3D snapshot stereoscopy sensor is available for immediate purchase, ideal for industrial automation and quality inspection applications.
