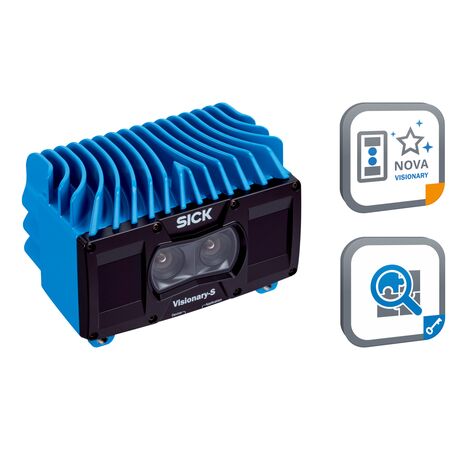

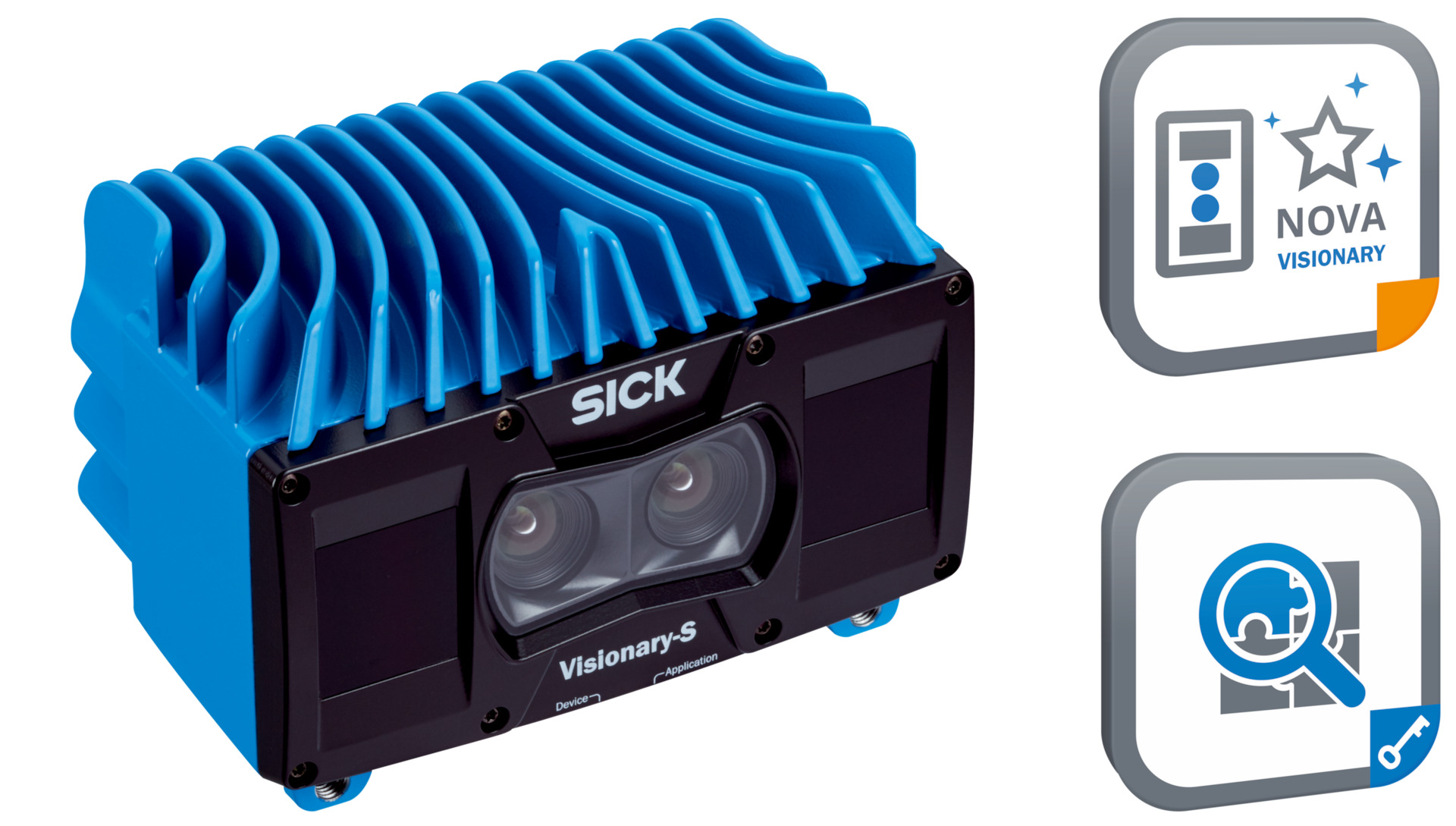

3D Snapshot Stereoscopy Sensor | 640 px x 512 px Resolution | IP67 Rated | by SICK
The 3D snapshot stereoscopy sensor offers high-resolution imaging with 640 px x 512 px and a scan rate of 30 fps, making it ideal for presence detection and quality inspection in industrial automation. With a robust IP67 enclosure and integrated infrared laser illumination, this sensor ensures reliable performance in various applications, including dimension measurement and contour detection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 3D snapshot stereoscopy
- Programmable and configurable with pre-calibrated settings
- Sensor resolution: 640 px x 512 px
- Processor: 1.2 GHz, 4× ARM Cortex A72
- Scan/frame rate: 30 fps, up to 9,850,000 3D data points per second
- Repeatability: ≤ 0.25 mm at 0.5 m scanning range
- Illumination: Integrated infrared laser, 808 nm, laser class 1
- Working range: 0.5 m to 65 m
- Field of view: 60° x 50°
- Connection types: Power/I/O M12 17-pin A-coded, Gigabit Ethernet M12 8-pin X-coded
- Supply voltage: 24 V DC ± 15%
- Power consumption: 19 W without digital I/Os
- Enclosure rating: IP67
- Operating temperature: 0 °C to +50 °C with cooling fins
- Dimensions (H x L x W): 104mm x 162mm x 116mm
- Weight: 2.2 kg
Key Features
- 3D snapshot stereoscopy technology
- Pre-calibrated and programmable with configurable settings
- Integrated infrared laser illumination (808 nm), laser class 1
- Working range from 0.5 m to 65 m with a 60° x 50° field of view
- High sensor resolution of 640 px x 512 px with 30 fps scan rate
- Repeatability of ≤ 0.25 mm at 0.5 m scanning range
- IP67 rated enclosure for robust protection
- Multiple communication interfaces including Gigabit Ethernet and M12 connectors
- Integrated SICK Nova Visionary-S SensorApp with presence inspection and quality inspection licenses
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper configuration and compliance with safety standards.
Applications
- Presence detection and quality inspection in industrial automation
- 3D position determination and dimension measurement
- Level measurement and contour detection
Standards & Compliance
- Complies with AS/NZS 61000 series for Electromagnetic Compatibility (EMC) as per EN 61000-6-2 and EN 61000-6-3
Environmental Benefits
- Integrated infrared laser reduces energy consumption compared to traditional lighting
- Pre-calibrated device minimizes setup time and reduces waste from misconfiguration
- Robust IP67 housing extends product life and reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK V3S142-1AAAABA NOVA PI 3D snapshot stereoscopy sensor is available for immediate purchase, ideal for industrial automation and quality inspection applications.
