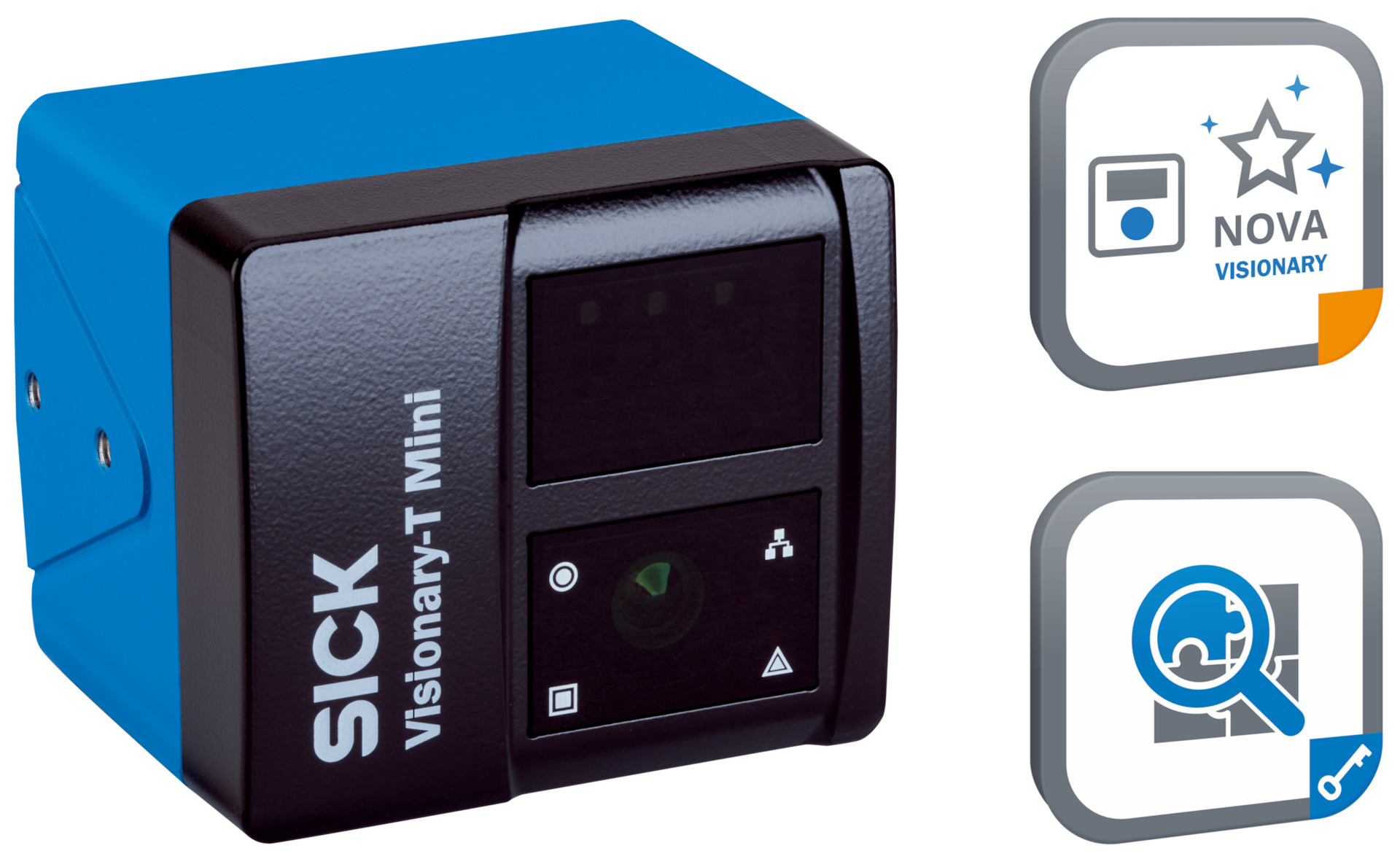

3D Snapshot Time-of-Flight Sensor | Up to 16m Range | IP65/IP67/IP69 Rated | by SICK
The 3D Snapshot Time-of-Flight Sensor is designed for precision presence inspection in industrial automation, offering a working range of up to 16 meters and a field of view of 70° x 60°. With integrated infrared laser illumination and a fast scan rate of up to 30 fps, this sensor is perfect for quality inspection and monitoring applications, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 3D snapshot time-of-flight
- Working range: up to 16 m
- Field of view: 70° x 60°
- Angular resolution: 0.14° x 0.14°
- Illumination: Integrated infrared laser, 855 nm ± 5 nm
- Laser class: Class 1, P0 < 17 mW, t < 25 ns (IEC 60825-1:2014)
- Processor: 1.8 GHz, 4× ARM Cortex
- Scan/frame rate: up to 30 fps
- Exposure time: ≤ 10 ms
- Repeatability: approx. 0.8 mm at 1 m, approx. 5 mm at 7 m
- Switch-on delay: approx. 20 s
- Response time: approx. 50 ms
- Connection type: M12, 8-pin, A-coded plug; Gigabit Ethernet M12, 8-pin, X-coded
- Supply voltage: 24 V DC
- Power consumption: typically 12 W, < 8 W in energy saving mode
- Enclosure rating: IP65, IP67, IP69
- Protection class: III
- Housing color: Blue, black
- Window material: PMMA
- Digital inputs/outputs: 6, max 100 mA per output, short-circuit protected
- Optical indicators: 4 status LEDs
- Ambient operating temperature: -10 °C to +50 °C
- Storage temperature: -20 °C to +80 °C
- Relative humidity: ≤ 95% non-condensing
- Electromagnetic compatibility: IEC 61000-6-4:2018 / IEC 61000-6-2:2016
- Vibration resistance: 5 g, 10 Hz to 500 Hz
- Shock resistance: 30 g, 11 ms
- Dimensions (H x L x W): 77mm x 80mm x 70mm
- Weight: 0.52 kg
Key Features
- 3D snapshot time-of-flight technology
- Pre-calibrated and programmable
- Integrated infrared laser illumination (855 nm)
- Presence Inspection License included with unlimited license period
- Field of view: 70° x 60° with 0.14° angular resolution
- High sensor resolution of 512 px x 424 px
- Fast scan/frame rate up to 30 fps
- Robust IP65, IP67, IP69 rated enclosure
- Multiple digital inputs/outputs with short-circuit protection
- Automatic camera coexistence mode
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial sensor systems and network integration to ensure optimal performance and safety.
Applications
- Presence inspection in industrial automation
- Quality inspection and monitoring
- 3D position determination
- Dimension, contour, and volume measurement
- Level measurement
- Standard object detection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient operation with power saving mode consuming less than 8 W
- Long service life reduces electronic waste
- Robust design minimizes replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now

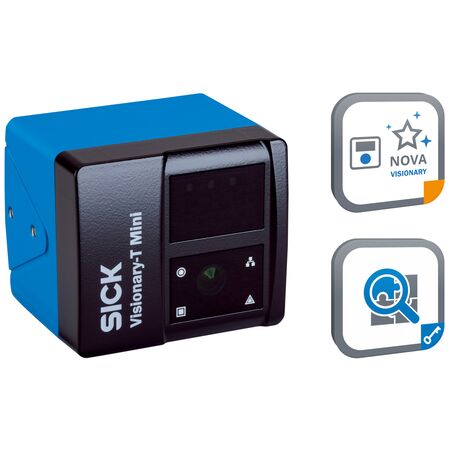

The SICK V3S145-1AAAABA NOVA PI sensor is available for immediate purchase, ideal for industrial automation and quality inspection applications.
