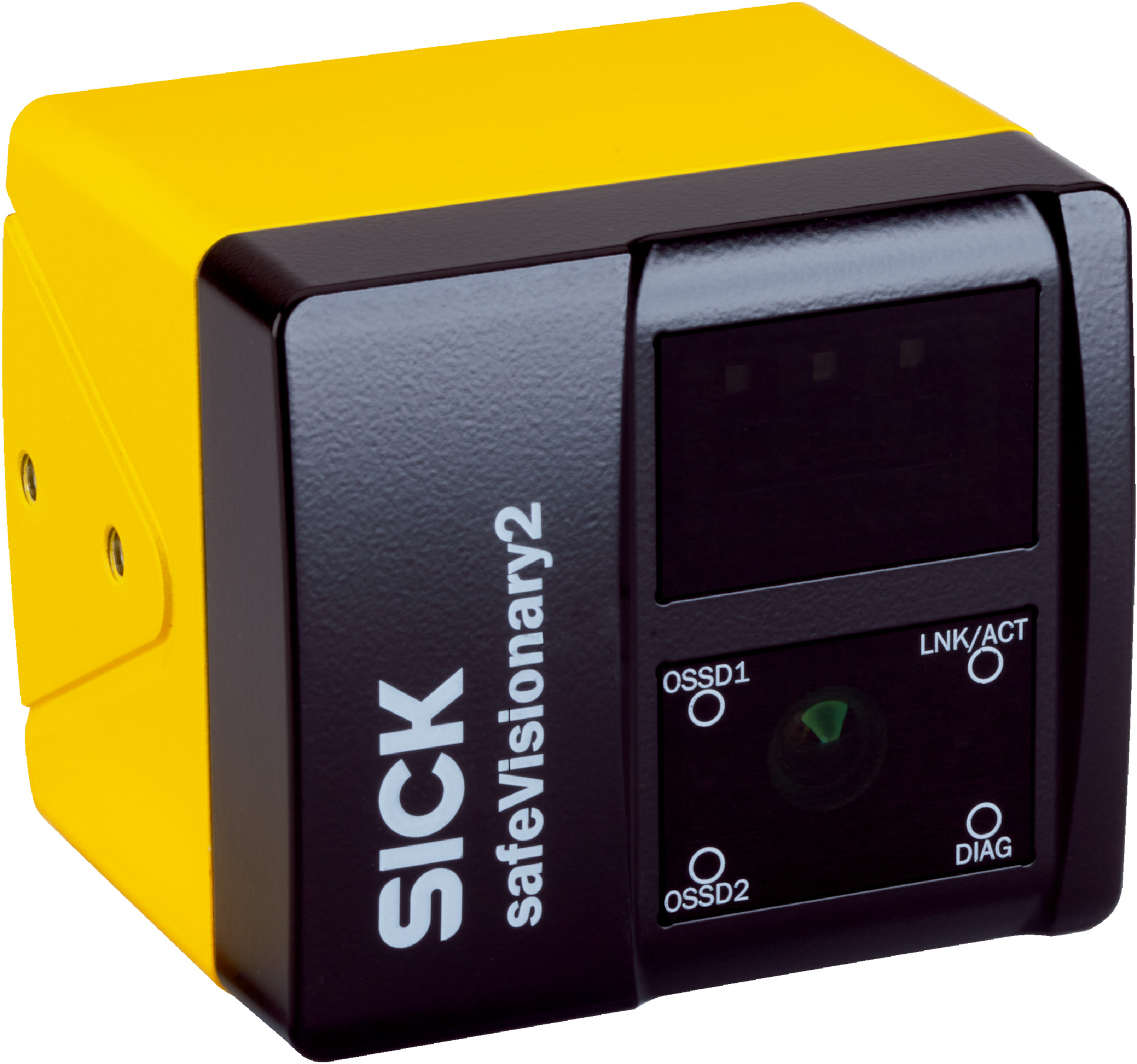

3D Time-of-Flight Safety Camera | 512px x 424px Resolution | IP65/IP67 Rated | by SICK
The 3D Time-of-Flight Safety Camera is designed for precise object detection in industrial settings, featuring a 512px x 424px resolution and a protective field range of up to 2 m, extendable to 4 m. Ideal for indoor safety monitoring and machine safeguarding, this robust camera ensures compliance with safety standards while providing fast response times and multiple monitoring capabilities.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 3D time-of-flight
- Camera resolution: 512 px x 424 px
- Field of view (protective field): 68° x 42°
- Field of view (other fields): 68° x 58°
- Frame rate: 30 Hz
- Object resolution configurable: Hand 20 mm, Arm 40 mm, Leg 50 mm, Body 200 mm
- Protective field range: ≤ 2 m (standard), 4 m (increased scanning range mode)
- Warning field range: 7.3 m
- Number of fields: ≤ 24
- Number of simultaneously monitored protective fields: ≤ 2
- Number of simultaneously monitored fields: ≤ 3
- Number of monitoring cases: ≤ 8
- Number of regions of interest (ROIs): ≤ 40
- Number of simultaneously monitored ROIs: ≤ 5
- Response time: ≥ 55 ms
- Safety type: Type 2 (IEC 61496-3)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (ISO 13849-1)
- Performance level: PL c (ISO 13849-1)
- PFHD: 8 × 10^-7
- Mission time: 20 years
- Supply voltage: 24 V DC (16.8 V ... 30 V)
- Power consumption typical: 13 W
- Output signal switching devices: 2 PNP semiconductors, short-circuit protected
- Connection types: M12 connectors (8-pin, A-coded and X-coded)
- Configuration interface: Ethernet 1000Base-T
- Protection class: III (IEC 61140)
- Enclosure rating: IP65 and IP67
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -25 °C to +70 °C
- Housing material: Aluminum
- Window material: Polycarbonate
- Light source: Pulsed laser, near-infrared (855 nm), laser class 1
- Dimensions (H x L x W): 80mm x 77mm x 70mm
- Weight: 0.52 kg
Key Features
- 3D time-of-flight technology for precise object detection
- Configurable object resolution for hand, arm, leg, and body detection
- Protective field range up to 2 m, extendable to 4 m in increased scanning mode
- Multiple simultaneous monitoring fields and regions of interest
- Fast response time of ≥ 55 ms
- Integrated configuration memory and Ethernet data output
- Robust aluminum housing with polycarbonate window
- High ambient light immunity and IP65/IP67 rated enclosure
- Safety integrity level SIL 1 and Category 2 safety compliance
Professional Installation Requirements
- Professional installation by qualified personnel is required to ensure compliance with safety standards and proper configuration using Safety Designer software.
Applications
- Indoor safety monitoring and protection
- Industrial automation and robotics
- Machine safeguarding and perimeter protection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption (13 W typical)
- Durable design reduces waste and replacement frequency
- Supports safer industrial environments, reducing accident-related environmental impacts
Warranty Information
Warranty details available upon request from manufacturer; typically includes coverage against manufacturing defects.
Available Now

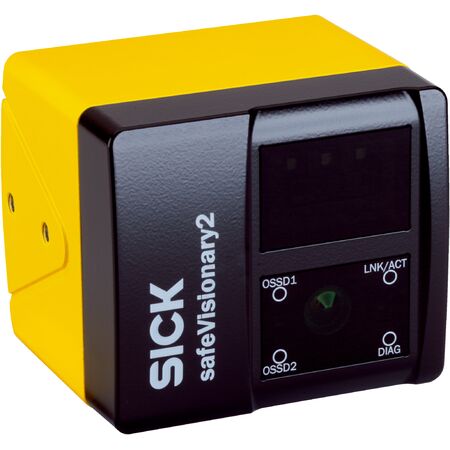

The SICK V3SA2-ABBABBAAN1 safety camera sensor is available for immediate purchase, ideal for indoor industrial safety and automation applications.
