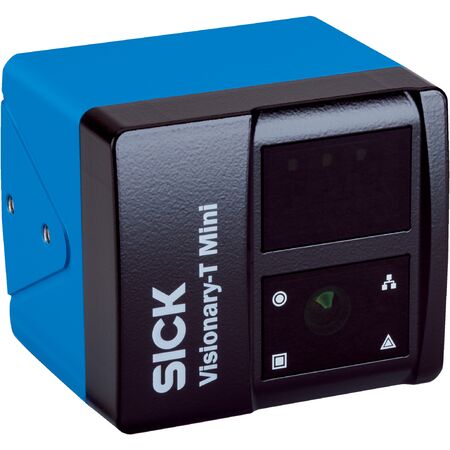

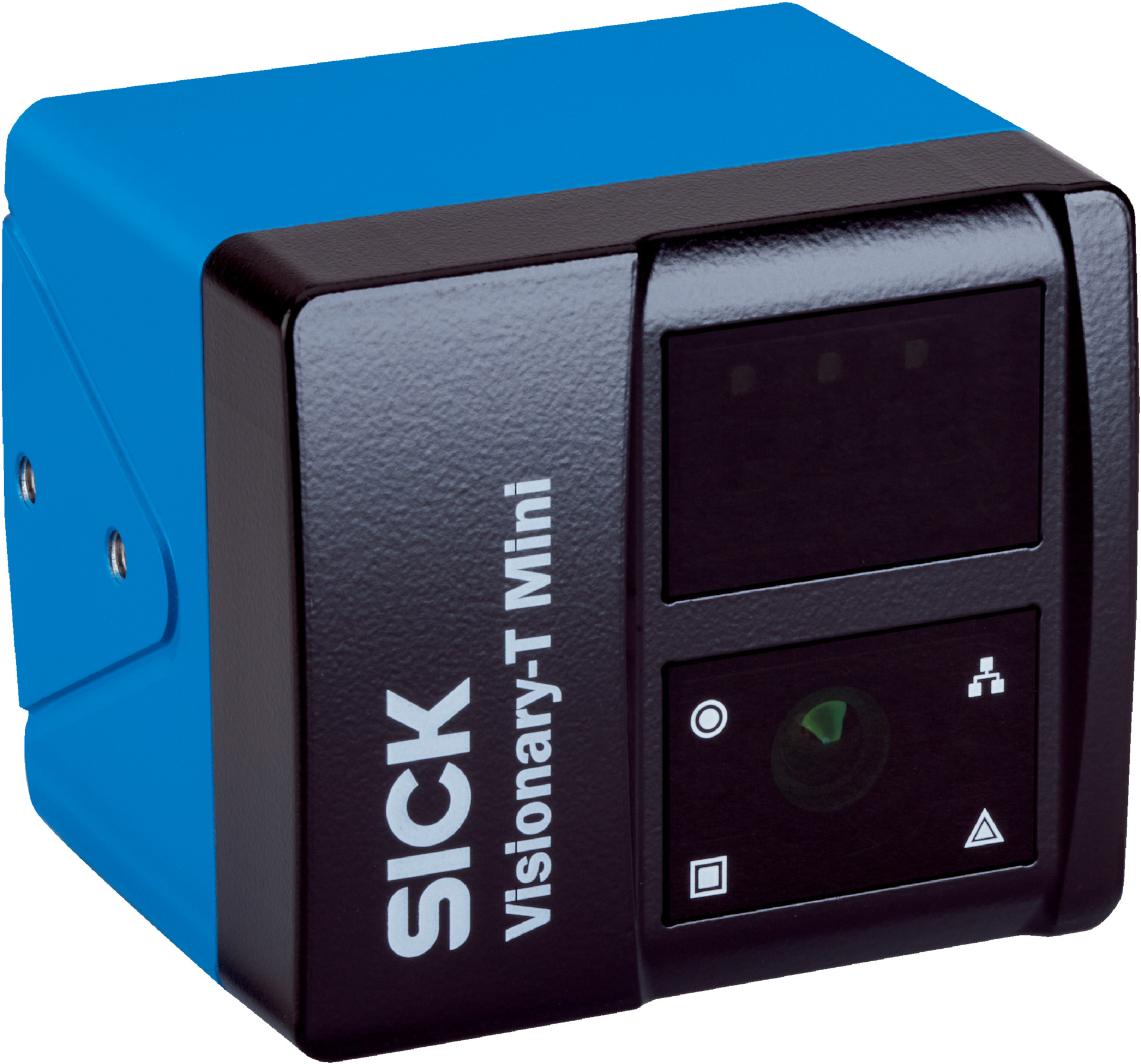

3D Time-of-Flight Sensor | 16m Range | 70° x 60° Field of View | IP65/IP67/IP69 Rated | by SICK
The 3D Time-of-Flight Sensor is designed for precise 3D measurement applications, featuring a working range of up to 16 meters and a 70° x 60° field of view. Ideal for industrial automation and robotics, this sensor offers integrated infrared laser illumination and a high resolution of 512 px x 424 px, ensuring accurate detection and localization of objects in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 3D snapshot time-of-flight
- Working range: ≤ 16 m
- Field of view: 70° x 60°
- Angular resolution: 0.14° x 0.14°
- Illumination: Integrated infrared laser, 855 nm ± 5 nm
- Laser class: 1, P0 < 17 mW, t < 25 ns (IEC 60825-1:2014)
- Connection type: Plug M12 8-pin A-coded, Gigabit Ethernet M12 8-pin X-coded
- Supply voltage: 24 V DC
- Power consumption: Typ. 12 W, < 8 W in energy saving mode
- Peak current: 2 A
- Enclosure rating: IP65, IP67, IP69
- Protection class: III
- Housing color: Blue, black
- Window material: PMMA
- Sensor resolution: 512 px x 424 px
- Scan/frame rate: ≤ 30 fps
- Exposure time: ≤ 10 ms
- Repeatability: Approx. 0.8 mm at 1 m, approx. 5 mm at 7 m
- Switch-on delay: Approx. 20 s
- Response time: Approx. 50 ms
- Ethernet: TCP/IP, UDP/IP, Gigabit Ethernet (100/1000 Mbit/s)
- Data transmission rate: ≤ 310 Mbit/s
- Configuration software: SOPAS Engineering Tool, Telegram interface, API (C++)
- Digital inputs/outputs: 6, max 100 mA per output, short-circuit protected
- Optical indicators: 4 status LEDs
- Operating temperature: –10 °C to +50 °C
- Storage temperature: –20 °C to +80 °C
- Relative humidity: ≤ 95% non-condensing
- Dimensions (H x L x W): 77mm x 80mm x 70mm
- Weight: 0.52 kg
Key Features
- 3D snapshot time-of-flight technology
- Streaming and configurable
- Pre-calibrated for immediate use
- Working range up to 16 meters
- Field of view 70° x 60° with 0.14° angular resolution
- Integrated infrared laser illumination (855 nm)
- Laser class 1 with low power output
- IP65, IP67, and IP69 rated enclosure for robust protection
- High sensor resolution of 512 px x 424 px
- Scan/frame rate up to 30 fps
- Short exposure time ≤ 10 ms
- Repeatability approx. 0.8 mm at 1 m distance
- Gigabit Ethernet connectivity with TCP/IP and UDP/IP support
- Supports SOPAS Engineering Tool and API for configuration
- 6 digital inputs/outputs with short-circuit protection
- 4 status LEDs for optical indication
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor setup and Ethernet network configuration to ensure optimal performance and safety.
Applications
- Detecting standard objects
- Measuring dimension, contour, and volume
- Localizing, navigating, and guiding
- 3D position determination
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient operation with power saving mode consuming less than 8 W
- Pre-calibrated device reduces setup time and waste
- Durable IP65-69 rated housing extends product lifespan reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK V3S105-1AAAAAA 3D snapshot time-of-flight sensor is available for immediate purchase, ideal for industrial automation, robotics, and precise 3D measurement applications.
