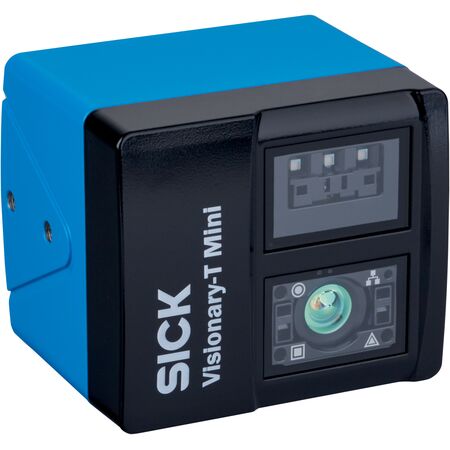

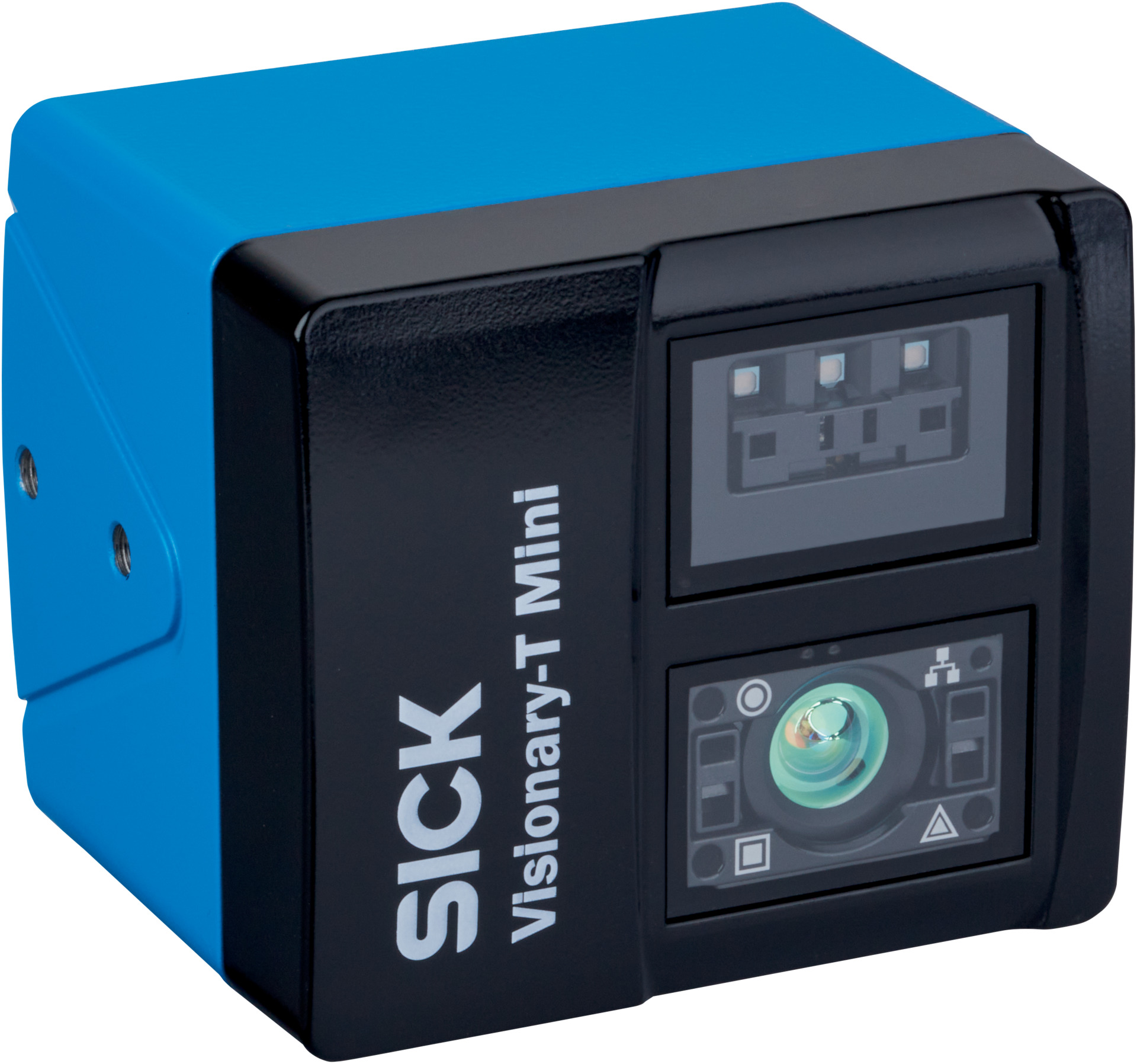

3D Time-of-Flight Sensor | 16m Range | 70° x 60° Field of View | IP65/IP67/IP69 Rated | by SICK
The 3D Time-of-Flight Sensor is designed for precise 3D position determination and object detection, featuring a working range of up to 16 meters and a field of view of 70° x 60°. With integrated infrared laser illumination and a high sensor resolution of 512 px x 424 px, this sensor is perfect for industrial automation and robotics applications, ensuring reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 3D snapshot time-of-flight
- Working range: ≤ 16 m
- Field of view: 70° x 60°
- Angular resolution: 0.14° x 0.14°
- Illumination: Integrated infrared laser, 855 nm, Class 1 laser
- Supply voltage: 24 V DC
- Power consumption: Typical 12 W, < 8 W in energy saving mode
- Peak current: 2 A
- Enclosure rating: IP65, IP67, IP69
- Protection class: III
- Housing color: Blue, black
- Window material: Glass
- Sensor resolution: 512 px x 424 px
- Scan/frame rate: ≤ 30 fps
- Exposure time: ≤ 10 ms
- Repeatability: Approx. 0.8 mm at 1 m, approx. 5 mm at 7 m
- Response time: Approx. 50 ms
- Connection type: M12, 8-pin, A-coded and X-coded Gigabit Ethernet
- Data transmission rate: ≤ 310 Mbit/s
- Configuration software: SOPAS Engineering Tool, Telegram interface, API (C++)
- Digital inputs/outputs: 6, max 100 mA per output, short-circuit protected
- Optical indicators: 4 status LEDs
- Operating temperature: –10 °C to +50 °C
- Storage temperature: –20 °C to +80 °C
- Relative humidity: ≤ 95% RH, non-condensing
- Dimensions (H x L x W): 77mm x 80mm x 70mm
- Weight: 0.52 kg
Key Features
- 3D snapshot time-of-flight technology
- Streaming and configurable
- Pre-calibrated for immediate use
- Working range up to 16 meters
- Field of view 70° x 60° with 0.14° x 0.14° angular resolution
- Integrated infrared laser illumination (855 nm, Class 1 laser)
- IP65, IP67, and IP69 rated enclosure for robust protection
- High sensor resolution of 512 px x 424 px
- Scan/frame rate up to 30 fps
- Automatic camera coexistence mode
- Supports Gigabit Ethernet with TCP/IP and UDP/IP
- Digital inputs/outputs with short-circuit protection
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper setup, calibration, and compliance with electrical standards.
Applications
- 3D position determination
- Detecting standard objects
- Measuring dimension, contour, and volume
- Localizing, navigating, and guiding tasks
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient operation with power consumption as low as 8 W in energy-saving mode
- Pre-calibrated device reduces setup time and resource use
- Robust housing reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V3S105-1AAAAAD 3D snapshot time-of-flight sensor is available for immediate purchase, ideal for industrial automation, robotics, and precise 3D measurement applications.
