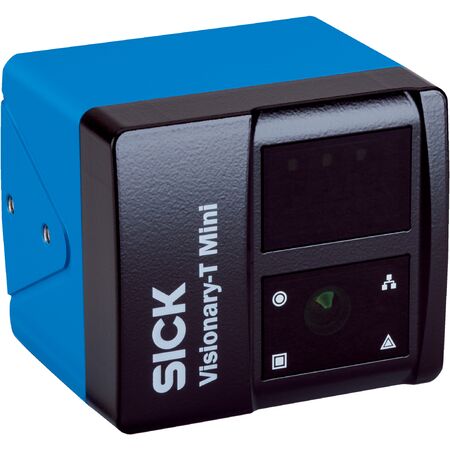

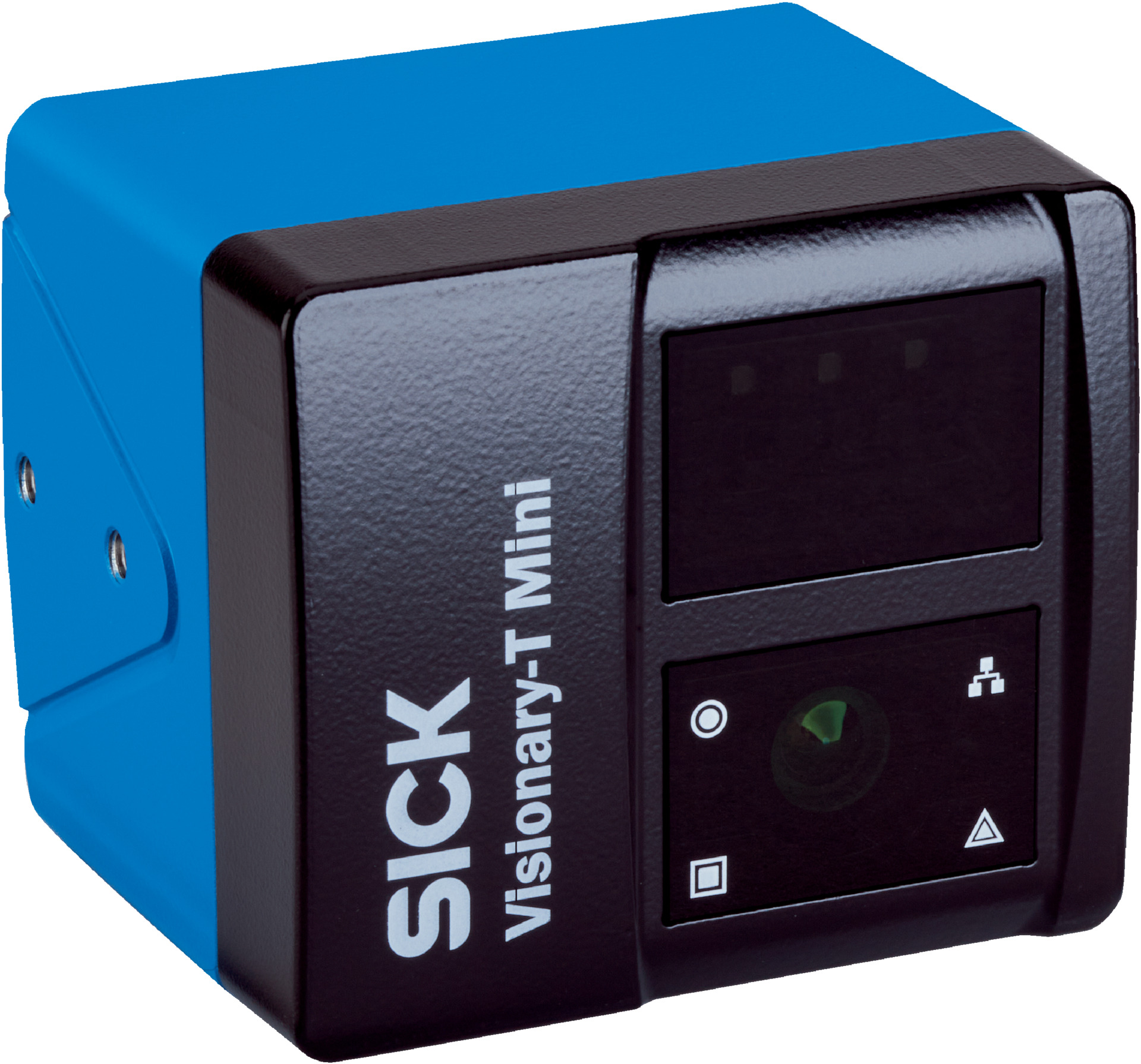

3D Time-of-Flight Sensor | 16m Range | 70° x 60° Field of View | IP65/IP67/IP69 Rated | by SICK
The 3D Time-of-Flight Sensor is designed for precise object detection and dimension measurement, featuring a working range of up to 16 meters and a 70° x 60° field of view. Ideal for industrial automation and robotics, this sensor offers integrated infrared laser illumination and a high resolution of 512 px x 424 px, ensuring reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 3D snapshot time-of-flight
- Working range: up to 16 m
- Field of view: 70° x 60°
- Angular resolution: 0.14° x 0.14°
- Illumination: Integrated infrared laser, 855 nm ± 5 nm
- Laser class: Class 1, P0 < 17 mW, t < 25 ns (IEC 60825-1:2014)
- Connection type: M12, 8-pin, A-coded plug; Gigabit Ethernet M12, 8-pin, X-coded
- Supply voltage: 24 V DC
- Power consumption: Typical 12 W, < 8 W in energy saving mode
- Peak current: 2 A
- Enclosure rating: IP65, IP67, IP69
- Protection class: III
- Housing color: Blue, black
- Window material: PMMA
- Sensor resolution: 512 px x 424 px
- Processor: 1.8 GHz, 4× ARM Cortex
- Scan/frame rate: up to 30 fps
- Exposure time: ≤ 10 ms
- Repeatability: Approx. 0.8 mm at 1 m, approx. 5 mm at 7 m
- Switch-on delay: Approx. 20 s
- Response time: Approx. 50 ms
- Camera coexistence mode: Automatic
- Digital inputs/outputs: 6, max 100 mA per output, short-circuit protected
- Optical indicators: 4 status LEDs
- Configuration software: SICK AppManager, SICK AppStudio, Web-Interface, Telegram interface
- Electromagnetic compatibility: IEC 61000-6-4:2018 / IEC 61000-6-2:2016
- Vibration resistance: 5 g, 10 Hz to 500 Hz
- Shock resistance: 30 g, 11 ms
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -20 °C to +80 °C
- Relative humidity: ≤ 95% non-condensing
- Ambient light immunity: ≤ 50 klx
- Dimensions (H x L x W): 77mm x 80mm x 70mm
- Weight: 0.52 kg
Key Features
- 3D snapshot time-of-flight technology
- Programmable and pre-calibrated
- Integrated infrared laser illumination (855 nm)
- Field of view: 70° x 60° with 0.14° angular resolution
- High sensor resolution of 512 px x 424 px
- Fast scan/frame rate up to 30 fps
- Robust IP65, IP67, IP69 rated enclosure
- Integrated application processing with Key Apps support
- Multiple digital inputs/outputs with short-circuit protection
- Ethernet connectivity with TCP/IP and UDP/IP support
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial sensor integration and electrical wiring standards to ensure safety and optimal performance.
Applications
- 3D object detection and dimension measurement
- Position determination and navigation guidance
- Industrial automation and robotics
- Quality control and inspection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation with power saving mode consuming less than 8 W
- Durable IP65/IP67/IP69 rated housing ensures long product life and reduces waste
- Non-invasive infrared laser illumination for safe and eco-friendly sensing
Warranty Information
Warranty details available upon request from SICK; typically includes standard manufacturer warranty against defects.
Available Now
The SICK V3S145-1AAAAAA 3D snapshot time-of-flight sensor is available for immediate purchase, ideal for industrial automation, robotics, and quality control applications.
