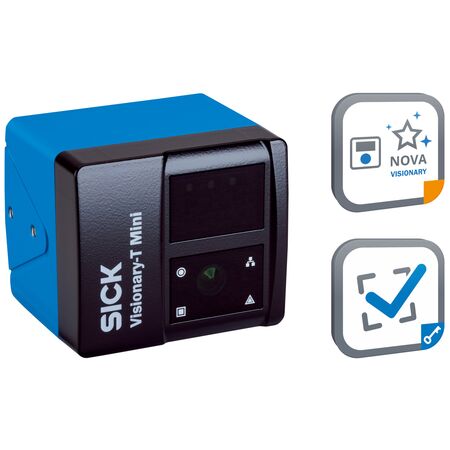

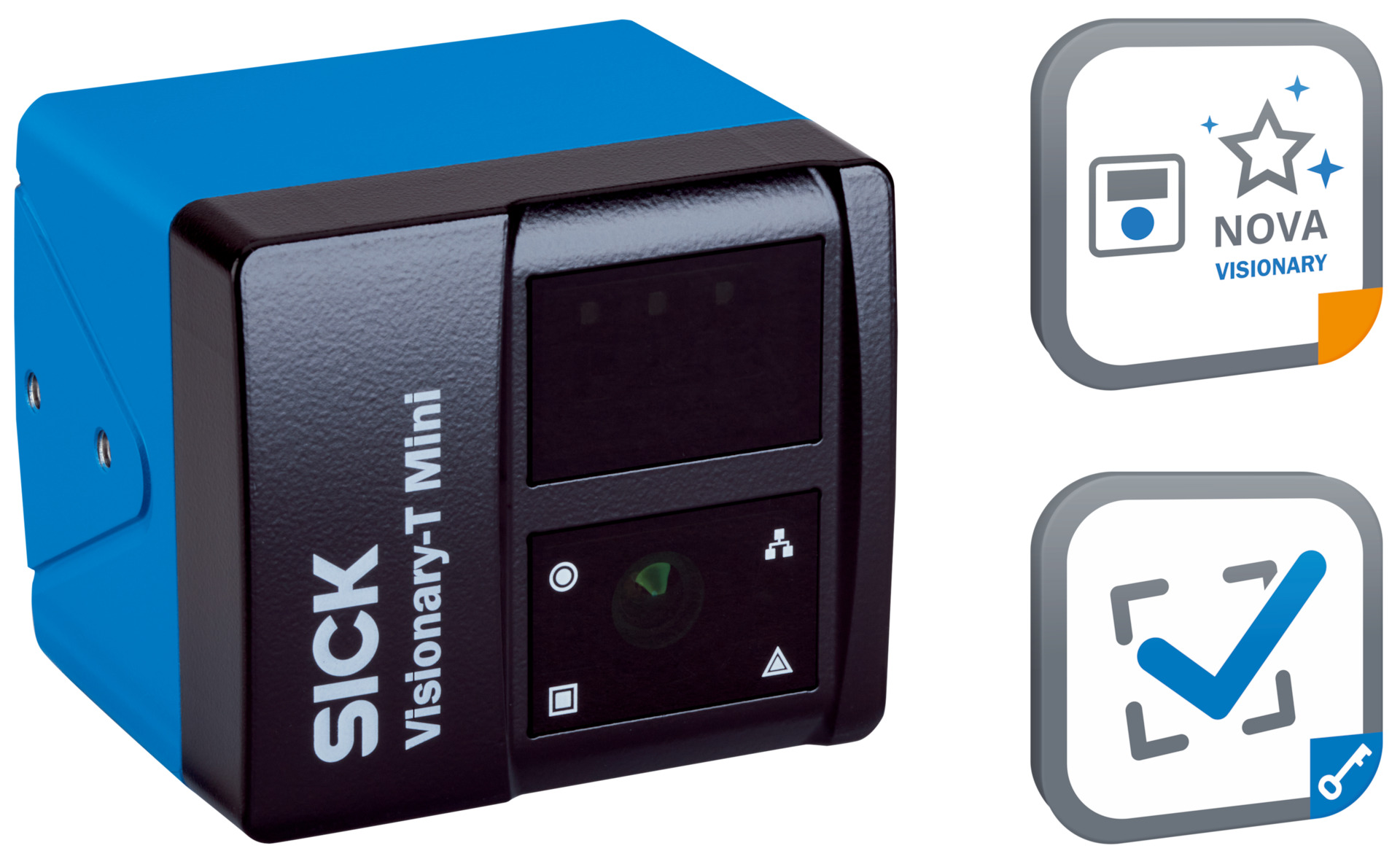

3D Time-of-Flight Sensor SICK NOVA QI | 512px x 424px Resolution | IP65, IP67, IP69 Rated | by SICK
The SICK NOVA QI 3D Time-of-Flight Sensor features advanced 3D snapshot technology with a resolution of 512 px x 424 px, making it ideal for presence and quality inspection in industrial automation. With a robust IP65, IP67, and IP69 rated enclosure, this sensor ensures reliable performance in challenging environments, while its integrated infrared laser illumination enhances measurement accuracy.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 3D snapshot time-of-flight
- Sensor resolution: 512 px x 424 px
- Processor: 1.8 GHz, 4× ARM Cortex
- Working range: up to 16 m
- Field of view: 70° x 60°
- Angular resolution: 0.14° x 0.14°
- Illumination: Integrated infrared laser, 855 nm ± 5 nm
- Laser class: Class 1, P0 < 17 mW, t < 25 ns (IEC 60825-1:2014)
- Supply voltage: 24 V DC
- Power consumption: Typical 12 W, < 8 W in energy saving mode
- Peak current: 2 A
- Enclosure rating: IP65, IP67, IP69
- Protection class: III
- Connection type: M12, 8-pin, A-coded and X-coded Gigabit Ethernet
- Scan/frame rate: up to 30 fps
- Exposure time: ≤ 10 ms
- Repeatability: approx. 0.8 mm at 1 m, approx. 5 mm at 7 m
- Response time: approx. 50 ms
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -20 °C to +80 °C
- Relative humidity: ≤ 95% non-condensing
- Dimensions (H x L x W): 77mm x 80mm x 70mm
- Weight: 0.52 kg
Key Features
- 3D snapshot time-of-flight technology
- Pre-calibrated and programmable sensor
- Integrated infrared laser illumination (855 nm)
- High angular resolution of 0.14° x 0.14°
- Field of view 70° x 60°
- Integrated SICK Nova Visionary-T Mini SensorApp with Quality Inspection license
- IP65, IP67, and IP69 rated enclosure for robust protection
- Gigabit Ethernet connectivity with M12 connectors
- Fast response time approx. 50 ms and scan rate up to 30 fps
- Automatic camera coexistence mode
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards to ensure proper configuration and compliance.
Applications
- Presence and quality inspection in industrial automation
- 3D position determination and dimension measurement
- Level measurement and contour/volume measurement
- Quality monitoring and control in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient operation with power consumption as low as 8 W in energy saving mode
- Durable IP69 rated housing reduces need for frequent replacements
- Supports non-contact measurement reducing material waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK V3S145-1AAAABA NOVA QI sensor is available for immediate purchase, ideal for industrial automation and quality inspection applications.
