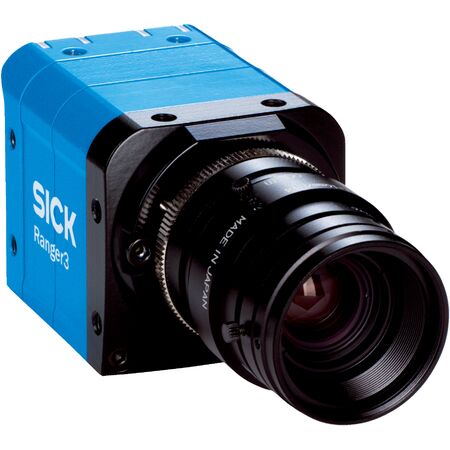

3D Triangulation Sensor | Global-Shutter Technology | 1536 px Resolution | IP65/IP67 Protection | by SICK
The 3D Triangulation Sensor is engineered for precision measurement and quality control in industrial automation. Featuring advanced global-shutter technology and a high resolution of 1536 px x 832 px, it excels in detecting standard objects and measuring dimensions, contours, and volumes. With robust aluminum housing and IP65/IP67 protection options, this sensor is built to withstand demanding environments, making it ideal for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 3D triangulation
- Shutter technology: Global-Shutter
- Exposure mode: Linear HDR
- Spectral range: 400 nm to 950 nm
- Sensor resolution: 1536 px x 832 px
- Pixel size: 6 µm x 6 µm
- Image sensor: CMOS with ROCC technology
- Scan/frame rate: 20,000 3D profiles/s in AOI, 1,500 3D profiles/s full format
- Maximum 3D height resolution: 16 bits, 1/16 subpixel
- Connection type: M12 17-pin male connector for voltage I/O, M12 8-pin socket for Gigabit Ethernet
- Supply voltage: 24 V DC ± 20%
- Power consumption: 12 W
- Current consumption: ≤ 1.5 A
- Enclosure rating: IP20 standard, IP65/IP67 with ProFlex protection hood
- Housing material: Aluminum, blue powder-coated
- Data transmission rate: 1,000 Mbit/s
- Digital inputs: 4 x HIGH = 10 V to 28.8 V
- Digital outputs: 2 x TTL
- Encoder interface: RS-422
- Operating system compatibility: Windows 7, Windows 10
- Configuration software: Ranger3 Studio
- API: GenAPI
- Dimensions (H x L x W): 55mm x 77mm x 55mm
- Weight: 0.33 kg
Key Features
- 3D triangulation technology
- Global-Shutter shutter technology
- Linear HDR exposure mode
- Supports streaming and 3D, scatter, and reflectance measurement
- Spectral range from 400 nm to 950 nm
- Free choice of field of view by lens selection
- Data synchronization options: free running, encoder triggered, external triggering
- High sensor resolution of 1536 px x 832 px with 6 µm pixel size
- Scan/frame rate up to 20,000 3D profiles/s in AOI
- CMOS sensor with ROCC technology
- Ethernet GigE Vision standard with 1,000 Mbit/s data transmission rate
- Robust aluminum housing with IP20 to IP67 protection options
Professional Installation Requirements
- Professional installation by a qualified technician or engineer is recommended to ensure proper setup and integration with existing systems.
Applications
- Detecting standard objects
- Measuring dimension, contour, and volume
- Quality monitoring and controlling
- 3D position determination
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Efficient data processing reduces energy consumption during operation
- Durable aluminum housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK V3DR3-30NE31111 3D Triangulation Sensor is available for immediate purchase, ideal for industrial automation, quality control, and measurement applications.
