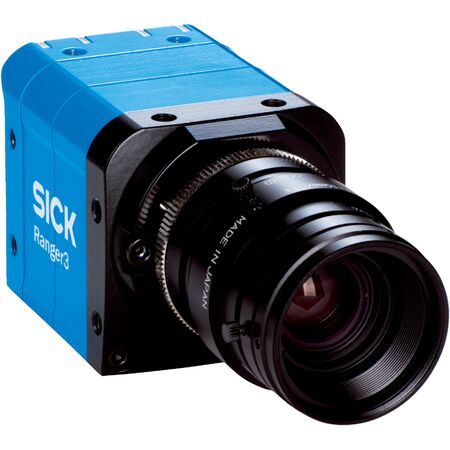

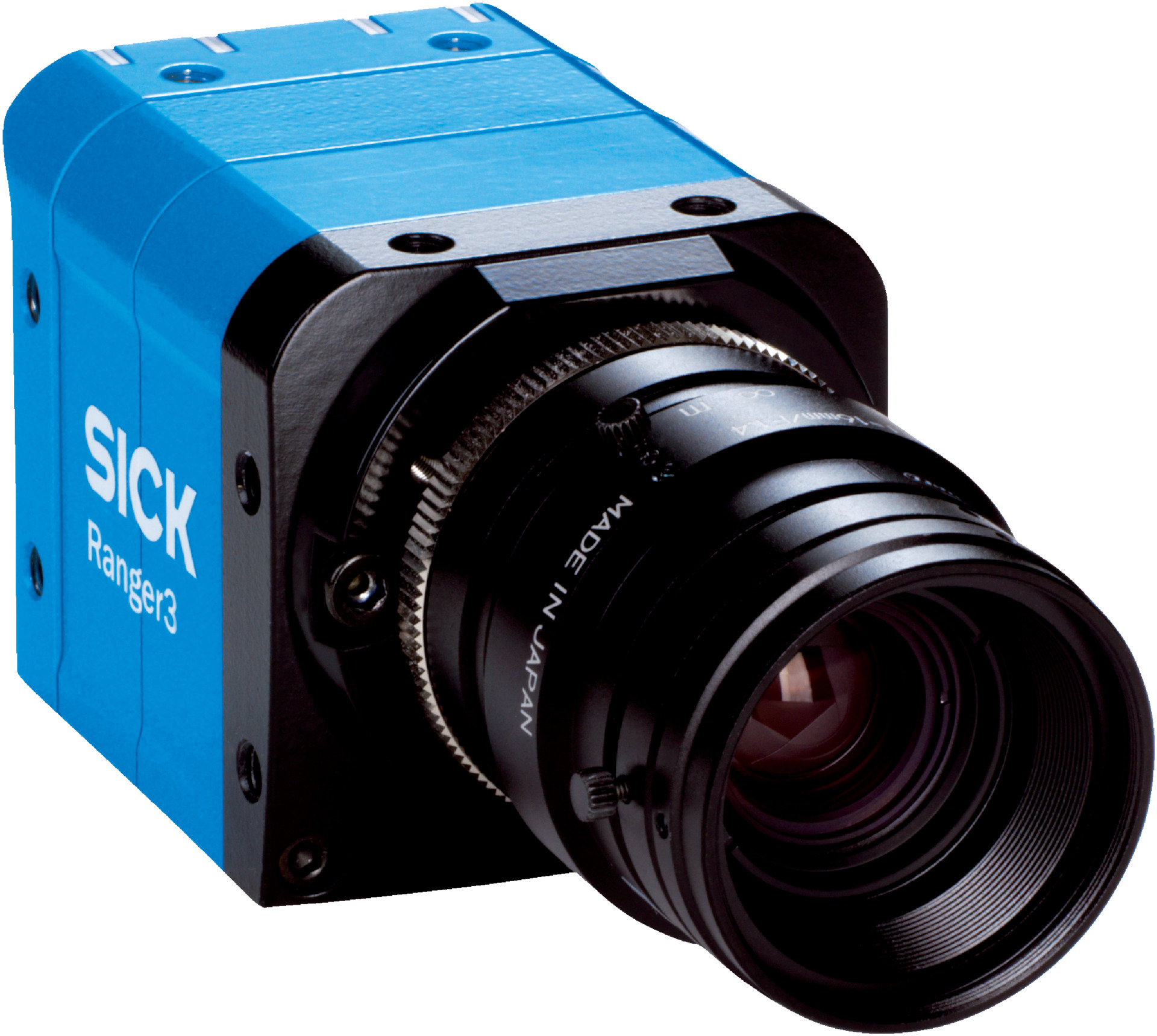

3D Triangulation Sensor | Global-Shutter Technology | 2560 px Resolution | IP65 & IP67 Rated | by SICK
The 3D Triangulation Sensor is designed for precision measurement and quality control in industrial automation. Featuring global-shutter technology and a high resolution of 2560 px x 832 px, it excels in detecting standard objects and measuring dimensions, contours, and volumes. With robust aluminum housing and multiple protection ratings, this sensor ensures durability and reliability in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 3D triangulation, 2D line scanning, color
- Shutter technology: Global-Shutter
- Exposure mode: Linear HDR
- Spectral range: 400 nm to 950 nm
- Lens: C-mount, 1" optical format (ordered separately)
- Connection type: Voltage – I/O: M12, 17-pin male connector; Gigabit Ethernet: M12, 8-pin socket, X-coded
- Supply voltage: 24 V DC, ± 20%
- Power consumption: 12 W
- Current consumption: ≤ 1.5 A
- Enclosure rating: IP20, IP65, IP67 with ProFlex protection hood
- Housing material: Aluminum, blue powder-coated
- Sensor resolution: 2560 px x 832 px
- Pixel size: 6 µm x 6 µm (3D), 3 µm x 6.4 µm (High Resolution)
- Image sensor: CMOS with ROCC technology
- Scan/frame rate: 69,000 3D profiles/s in AOI, 7,000 3D profiles/s full format
- Maximum Hi-Res color rate: 15,000 RGB lines/s
- Maximum hi-res grayscale frequency: ≤ 30,000 Lines/s
- Color resolution: 5120 px
- Gray-scale resolution: 5120 px
- Digital input: 4 x HIGH = 10 V ... 28.8 V
- Digital output: 2 x TTL
- Encoder interface: RS-422
- Data transmission rate: 2.5 Gbit/s
- Configuration software: Stream Setup
- Operating system compatibility: Windows 7, Windows 10
- API: Proprietary SICK GenIStream
- Dimensions (H x L x W): 55mm x 77mm x 55mm
- Weight: 0.33 kg
Key Features
- 3D triangulation, 2D line scanning, and color technology
- Global-Shutter shutter technology
- Linear HDR exposure mode
- Supports streaming and data synchronization (free running, encoder triggered, external triggering)
- 3D, scatter, and reflectance measurement capabilities
- Spectral range from 400 nm to 950 nm
- C-mount lens with 1" optical format (lens ordered separately)
- High sensor resolution of 2560 px x 832 px with 6 µm x 6 µm pixel size for 3D
- CMOS sensor with ROCC technology
- High scan/frame rate up to 69,000 3D profiles/s in AOI
- Ethernet with GigE Vision standard and 2.5 Gbit/s data transmission rate
- Digital inputs and outputs with encoder interface RS-422
- Robust aluminum housing with IP20, IP65, and IP67 protection options
Professional Installation Requirements
- Installation by qualified professionals is recommended to ensure proper setup and compliance with safety standards.
Applications
- Detecting standard objects
- Measuring dimension, contour, and volume
- Quality monitoring and controlling
- 3D position determination
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Efficient data processing reduces energy consumption during operation
- Durable aluminum housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK V3DR3-80CT31111 3D Triangulation and 2D Line Scanning Sensor is available now for immediate purchase. Ideal for industrial automation, quality control, and precise 3D measurement applications.
