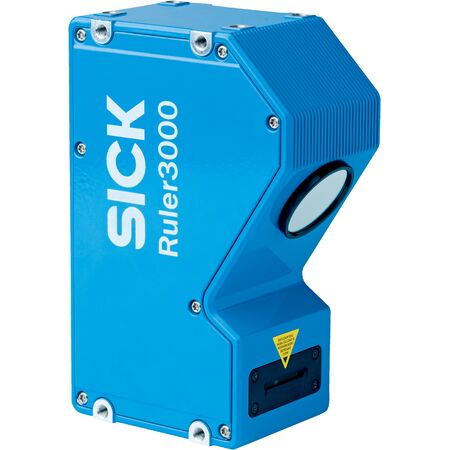

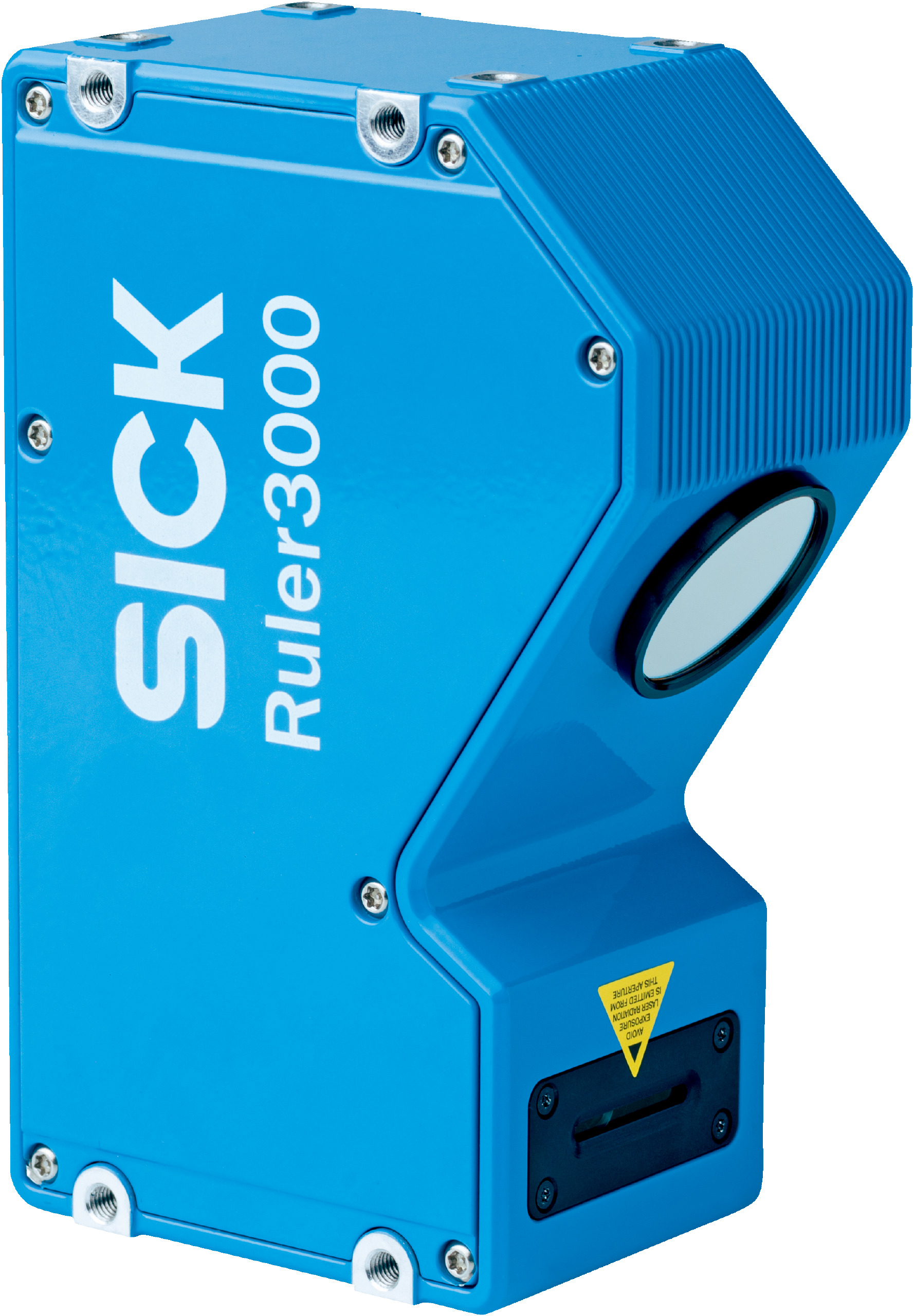

3D Triangulation Sensor | Global Shutter Technology | High Scan Rate | IP65 & IP67 Rated | by SICK
The 3D Triangulation Sensor V3DX3-010BR21A features advanced global shutter technology and a high scan rate of up to 46,000 profiles per second, making it ideal for precision measurement in industrial automation. With an IP65 and IP67 rated enclosure, it ensures robust protection against dust and water, perfect for quality control and monitoring applications in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 3D triangulation with global shutter
- Working range: 99 mm to 149 mm
- Field of view example: 85 mm x 30 mm
- Exposure mode: Linear HDR
- Laser class: 3R (complies with EN 60825-1:2014+A11:2021 and FDA performance requirements)
- Data synchronization: Free running, encoder triggered, external triggering
- 3D measurement, scatter measurement, reflectance measurement supported
- Width at minimum operating distance: 77 mm
- Width at maximum operating distance: 105 mm
- Maximum height range: 50 mm
- Connection type: M12 17-pin male connector for voltage I/O, M12 8-pin socket for Gigabit Ethernet
- Supply voltage: 24 V DC ± 10%
- Power consumption: ≤ 12 W
- Enclosure rating: IP65, IP67
- Housing material: Aluminum with blue color
- Window material: Float glass, anti-reflective coated
- Image sensor: CMOS sensor with ROCC technology, M30
- Scan/frame rate: 46,000 3D profiles/s (reduced ROI), 7,000 3D profiles/s (full format)
- Data points per profile: 3,200
- Repeatability: 0.8 µm
- Typical resolution: Z resolution 3 µm to 6 µm, X resolution 32 µm to 45 µm
- Interfaces: Ethernet with UDP/IP, GigE Vision Standard, data rate ≤ 1 Gbit/s
- Configuration software: Stream Setup
- Operating system: Windows 10
- API: GenAPI, GenTL, SICK GenIStream
- Inputs/outputs: 4 x HIGH = 10 V to 28.8 V, configurable
- Encoder interface: RS-422 5 V, 2 x HTL single-ended
- Shock load: 15 g, 3 cycles per axis
- Vibration load: 5 g, 10 Hz to 150 Hz (EN 60068-2-6)
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -30 °C to +70 °C
- Dimensions (H x L x W): 100mm x 151.5mm x 60.3mm
- Weight: 1.2 kg
Key Features
- 3D triangulation technology with global shutter
- Pre-calibrated for immediate use
- Integrated blue laser illumination (450 nm ± 10 nm)
- High scan/frame rate up to 46,000 3D profiles/s
- Ambient light suppression
- Scheimpflug adapter integrated
- IP65 and IP67 rated enclosure for robust protection
- Data synchronization options: free running, encoder triggered, external triggering
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor setup and electrical safety standards to ensure proper configuration and compliance.
Applications
- Detecting standard objects
- Level measuring
- Dimension, contour and volume measurement
- Quality monitoring and controlling
- 3D position determination
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Integrated illumination reduces the need for external lighting, lowering energy consumption
- High precision reduces waste by improving quality control and reducing defects
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK V3DX3-010BR21A 3D Triangulation Sensor is available for immediate purchase, ideal for industrial automation, quality control, and measurement applications.
