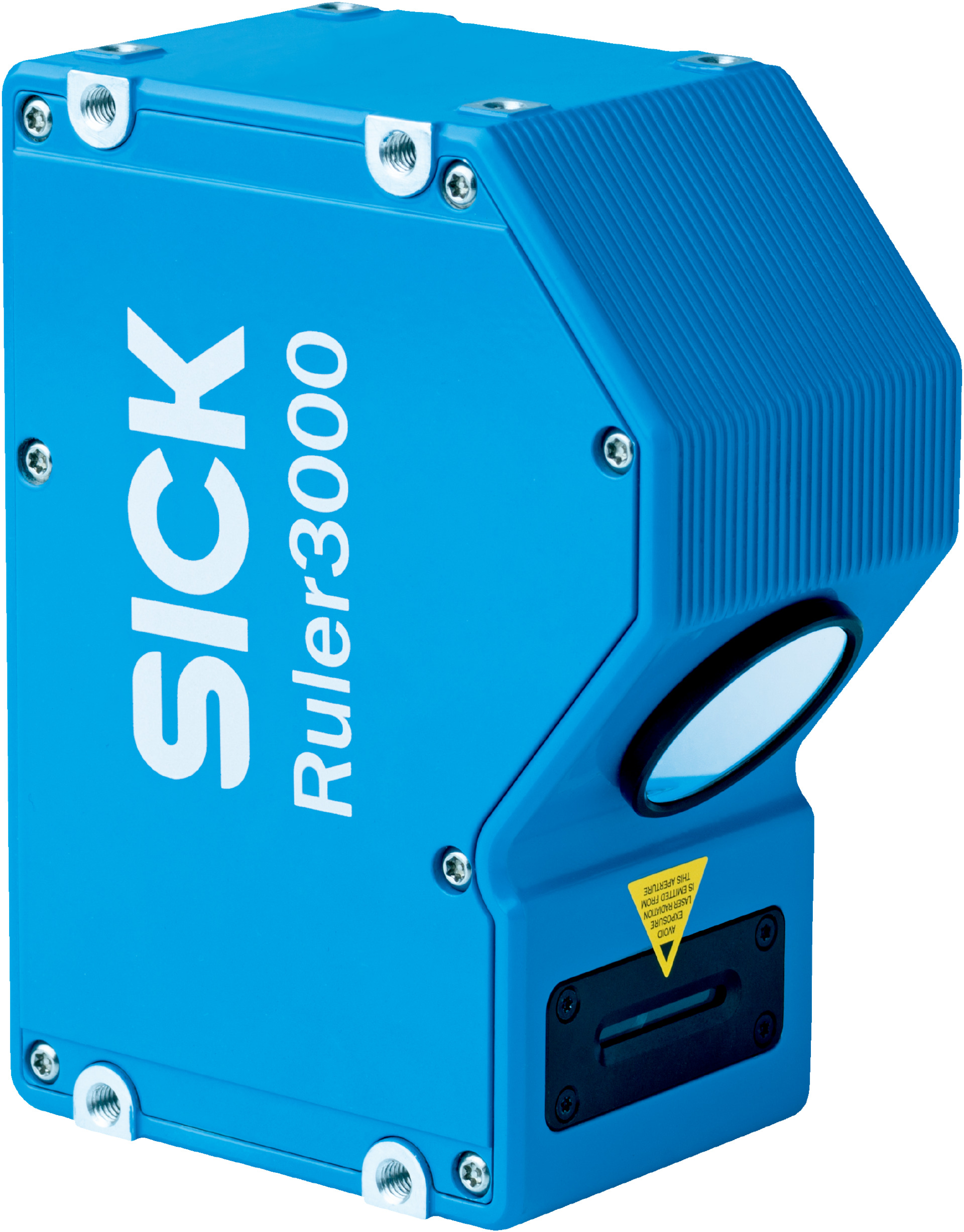

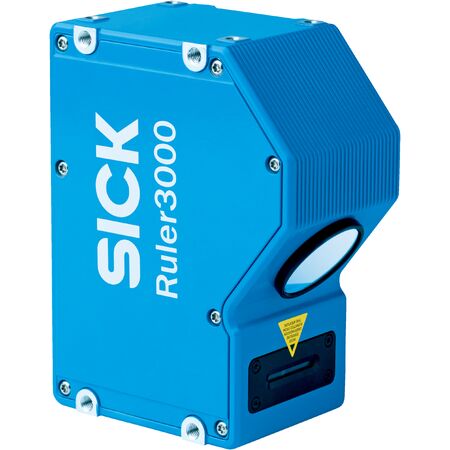

3D Triangulation Sensor | Global Shutter Technology | IP65 & IP67 Rated | High Scan Rate | by SICK
The 3D Triangulation Sensor V3DX3-004BR21A features advanced global shutter technology and high scan rates of up to 46,000 profiles per second, making it ideal for precision measurement in industrial automation. With an IP65/IP67 rated enclosure, it ensures robust protection against dust and water, perfect for quality control and dimension measurement applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 3D triangulation with global shutter
- Working range: 54.2 mm to 71.8 mm
- Field of view example: 40 mm x 12 mm
- Exposure mode: Linear HDR
- Laser class: 3R (EN 60825-1:2014+A11:2021; IEC 60825-1:2014)
- Data synchronization: Free running, encoder triggered, external triggering
- 3D, scatter, and reflectance measurement capabilities
- Width at minimum operating distance: 38 mm
- Width at maximum operating distance: 45 mm
- Maximum height range: 17.6 mm
- Connection types: M12 17-pin male connector for Voltage I/O, M12 8-pin X-coded socket for Gigabit Ethernet
- Supply voltage: 24 V DC ± 10%
- Power consumption: ≤ 12 W
- Current consumption: ≤ 1.5 A
- Enclosure rating: IP65, IP67
- Housing material: Aluminum with blue color
- Window material: Float glass, anti-reflective coated
- Image sensor: CMOS with ROCC technology, M30
- Scan/frame rate: 46,000 3D profiles/s (reduced ROI), 7,000 3D profiles/s (full format)
- Data points per profile: 3,200
- Repeatability: 0.5 µm
- Typical resolution: Z (height) 1.5 µm to 2 µm, X (width) 17 µm to 20 µm
- Interfaces: Ethernet (GigE Vision Standard), UDP/IP, data rate ≤ 1 Gbit/s
- Configuration software: Stream Setup
- Operating system: Windows 10
- API: GenAPI, GenTL, SICK GenIStream
- Inputs/outputs: 4 x HIGH = 10 V to 28.8 V, configurable
- Encoder interface: RS-422 5 V, 2 x HTL single-ended
- Shock load: 15 g, 3 cycles per axis
- Vibration load: 5 g, 10 Hz to 150 Hz (EN 60068-2-6)
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -30 °C to +70 °C
- Dimensions (H x L x W): 100mm x 129.5mm x 60.3mm
- Weight: 0.99 kg
Key Features
- 3D triangulation technology with global shutter
- Pre-calibrated and streaming capable
- Integrated blue laser illumination (450 nm ± 10 nm), Laser class 3R
- Free running, encoder triggered, and external triggering data synchronization
- Ambient light suppression and integrated Scheimpflug adapter
- High scan/frame rate up to 46,000 3D profiles/s
- Repeatability of 0.5 µm and typical Z resolution of 1.5 µm to 2 µm
- IP65 and IP67 rated enclosure for robust protection
- Aluminum housing with anti-reflective coated float glass window
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor setup and electrical safety standards.
Applications
- Detecting standard objects
- Level measuring
- Dimension, contour and volume measurement
- Quality monitoring and controlling
- 3D position determination
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Integrated LED laser illumination reduces energy consumption compared to traditional lighting
- Robust IP65/IP67 housing extends product lifespan, reducing waste
- Pre-calibrated design minimizes setup time and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V3DX3-004BR21A 3D Triangulation Sensor is available for immediate purchase, ideal for industrial automation, quality control, and precision measurement applications.
