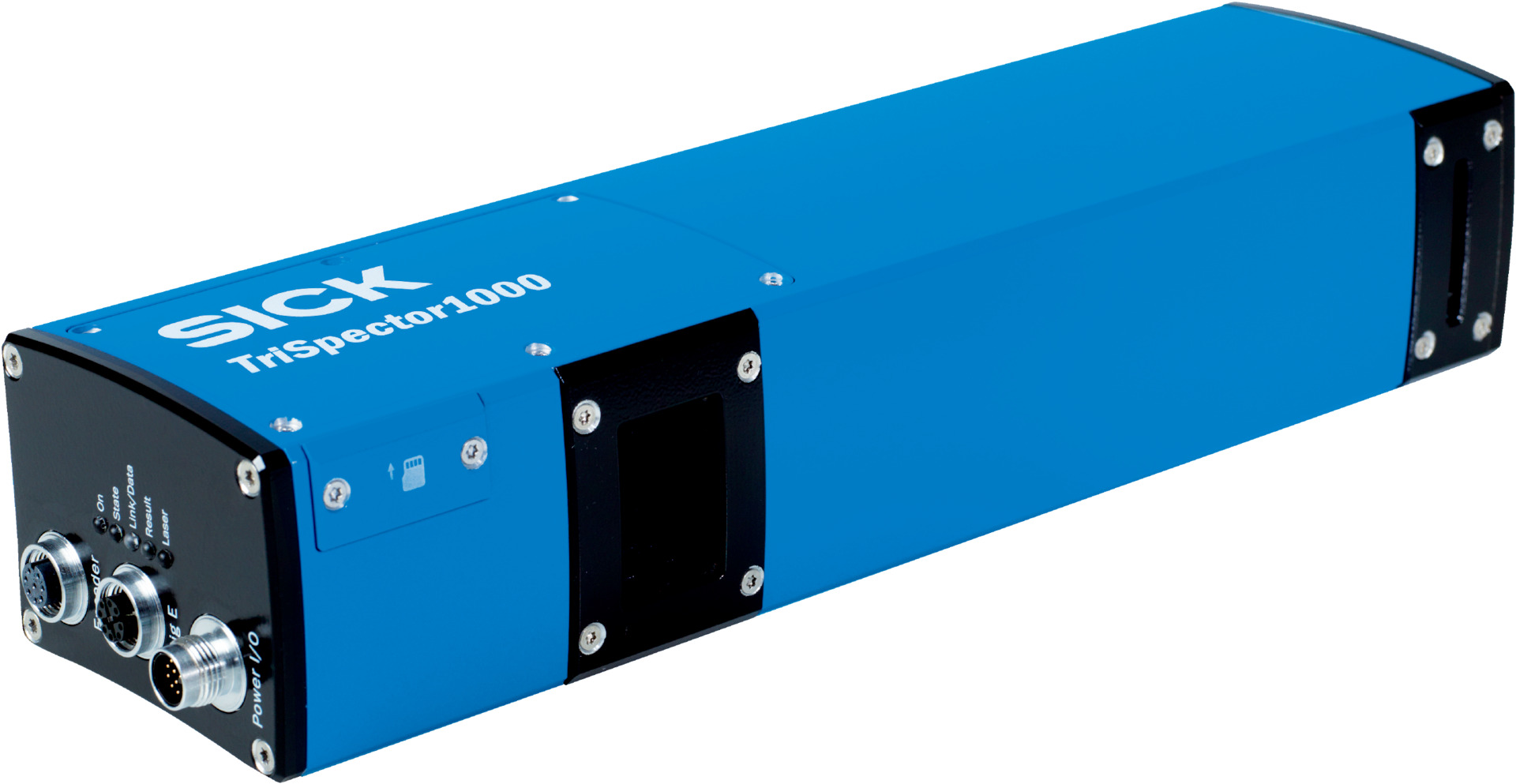

3D Triangulation Sensor | Integrated Red Laser | 5,000 Profiles/Second | IP67 Rated | by SICK
The 3D Triangulation Sensor is designed for precision measurement and quality control in industrial automation. With advanced 3D triangulation technology and an integrated red laser, it captures 5,000 profiles per second, ensuring high accuracy in detecting dimensions and volumes. Ideal for applications like level measuring and quality assurance, this robust sensor features an IP67 rated anodized aluminum housing for durability in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 3D triangulation
- Working range: 291 mm to 1,091 mm
- Field of view: 540 mm x 200 mm
- Illumination: Integrated red laser, 660 nm ± 7 nm
- Laser class: 2 (EN 60825-1:2014+A11:2021; IEC 60825-1:2014)
- Scan/frame rate: 5,000 3D profiles per second
- Data points per profile: 1,536
- Height resolution: 80 µm to 670 µm
- 3D profile resolution: 0.43 mm/px
- Connection types: M12 12-pin male (voltage supply, I/O), M12 8-pin socket (Gigabit Ethernet), M12 8-pin female (encoder)
- Supply voltage: 24 V DC ± 20%
- Power consumption: ≤ 11 W
- Enclosure rating: IP67
- Housing material: Anodized aluminum
- Window material: PMMA
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Dimensions (H x L x W): 84mm x 307mm x 62mm
- Weight: 1.7 kg
Key Features
- 3D triangulation technology with integrated red laser illumination (660 nm)
- Pre-calibrated and configurable with SOPAS ET software
- High scan/frame rate of 5,000 3D profiles per second
- Working range from 291 mm to 1,091 mm with a field of view of 540 mm x 200 mm
- Robust IP67 rated anodized aluminum housing with PMMA window
- Multiple interfaces including Ethernet (TCP/IP), RS-232, RS-422, and TTL encoder interface
- High resolution 3D profile with 1,536 data points per profile and height resolution between 80 µm and 670 µm
- Complies with laser safety class 2 standards and EMC standards EN 61000-6-2:2005 / EN 61000-6-3:2007
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor setup and electrical safety standards to ensure proper configuration and compliance.
Applications
- 3D position determination
- Detecting standard objects
- Level measuring
- Dimension, contour and volume measuring
- Number monitoring and controlling
- Quality control in industrial automation
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Integrated LED laser illumination reduces energy consumption compared to traditional lighting
- Durable IP67 rated housing ensures long product life and reduces waste
- Supports efficient quality control to minimize material waste in manufacturing
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

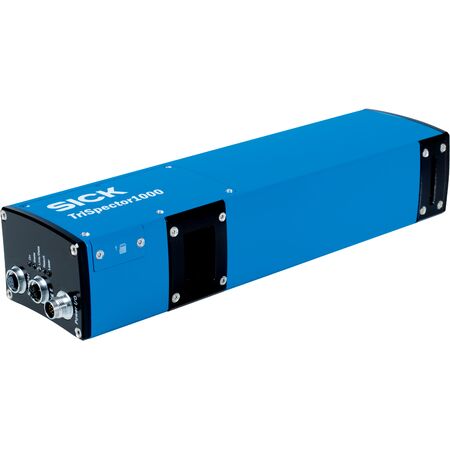

The SICK V3T13S-MR62A8 3D Triangulation Sensor is available for immediate purchase, ideal for industrial automation, quality control, and measurement applications.
