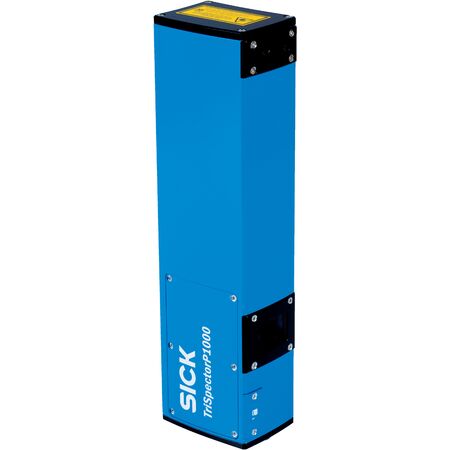

3D Triangulation Sensor | Integrated Red Laser | 5,000 Profiles/Second | IP67 Rated | by SICK
The 3D Triangulation Sensor is designed for precision measurement and quality control in industrial automation. With advanced 3D triangulation technology and an integrated red laser, it operates within a wide range of 291 mm to 1,091 mm, delivering 5,000 profiles per second. Ideal for detecting standard objects and level measuring, this sensor is pre-calibrated for immediate use and features robust IP67 rated anodized aluminum housing for durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 3D triangulation
- Working range: 291 mm to 1,091 mm
- Field of view: 540 mm x 200 mm
- Illumination: Integrated red laser, 660 nm ±7 nm
- Laser class: 2 (EN 60825-1:2014+A11:2021; IEC 60825-1:2014)
- Scan/frame rate: 5,000 3D profiles per second
- Data points per profile: 1,536
- Height resolution: 80 µm to 670 µm
- 3D profile resolution: 0.43 mm/px
- Connection types: M12 connectors (12-pin male, 8-pin socket, 8-pin female)
- Supply voltage: 24 V DC ±20%
- Power consumption: ≤ 11 W
- Enclosure rating: IP67
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Weight: 1.7 kg
- Housing material: Anodized aluminum
- Window material: Glass
- Interfaces: Ethernet (TCP/IP), Serial (RS-232, RS-422), Web server
- Configuration software: SICK AppStudio
- Dimensions (H x L x W): 84mm x 307mm x 62mm
- Weight: 1.7 kg
Key Features
- 3D triangulation technology
- Programmable with SICK algorithm API HALCON
- Pre-calibrated for immediate use
- Integrated red laser illumination (660 nm, ±7 nm)
- Laser class 2 compliant with EN 60825-1 and FDA requirements
- Wide working range from 291 mm to 1,091 mm
- Field of view example: 540 mm x 200 mm
- High scan/frame rate of 5,000 3D profiles per second
- Data transmission via Ethernet (TCP/IP) and Serial (RS-232, RS-422)
- Robust IP67 rated anodized aluminum housing
- Supports web server operator interface and SICK AppStudio configuration software
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial sensor setup and electrical safety standards.
Applications
- Detecting standard objects
- Level measuring
- Dimension, contour and volume measuring
- Number measuring
- Quality monitoring and controlling
- 3D position determination
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption (≤ 11 W)
- Durable anodized aluminum housing extends product lifespan reducing waste
- Complies with China-RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V3T13P-MR62A7 3D Triangulation Sensor is available for immediate purchase, ideal for industrial automation, quality control, and precise measurement applications.
