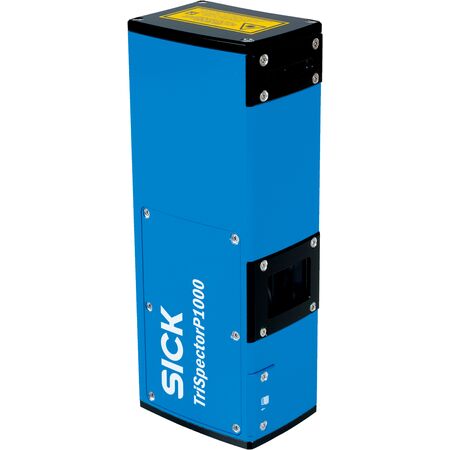

3D Triangulation Sensor | Programmable with SICK API | Integrated Red Laser | IP67 Rated | by SICK
The 3D Triangulation Sensor V3T12P-MR32A8 is designed for precision measurement and quality control in industrial applications. With programmable capabilities using the SICK algorithm API HALCON and an integrated red laser for illumination, it operates within a working range of 141 mm to 541 mm. Ideal for detecting standard objects and monitoring quality, this sensor ensures high performance with a scan rate of 5,000 profiles per second and robust IP67 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 3D triangulation
- Programmable: Yes
- Toolkit: SICK algorithm API HALCON
- Working range: 141 mm to 541 mm
- Field of view: 270 mm x 100 mm
- Illumination: Integrated red laser, 660 nm ± 7 nm
- Laser class: 2 (EN 60825-1:2014+A11:2021; IEC 60825-1:2014)
- Width at minimum operating distance: 90 mm
- Width at maximum operating distance: 330 mm
- Maximum height range: 400 mm
- Imaging angle: 65°
- Offline support: Emulator
- Scan/frame rate: 5,000 3D profiles/s
- Maximum number of profiles: 2,500 per image
- Data points per profile: 1,536
- Height resolution: 40 µm to 280 µm
- 3D profile resolution: 0.215 mm/px
- Connection types: M12 12-pin male (voltage supply, I/O), M12 8-pin socket (Gigabit Ethernet), M12 8-pin female (encoder)
- Connector material: Nickel plated brass
- Supply voltage: 24 V DC ± 20%
- Ripple: < 5 V pp
- Power consumption: ≤ 11 W
- Current consumption: < 400 mA without output load
- Enclosure rating: IP67
- Protection class: III
- Housing material: Anodized aluminum
- Window material: PMMA
- Ethernet: TCP/IP, FTP, HTTP, data rate ≤ 1,000 Mbit/s
- Serial: RS-232, RS-422
- Operator interfaces: Web server
- Configuration software: SICK AppStudio
- Digital inputs: 3
- Configurable outputs: 4
- Encoder interface: RS-422 / TTL
- Maximum encoder frequency: 300 kHz
- EMC: EN 61000-6-2:2005 / EN 61000-6-3:2007
- Shock load: 15 g / 6 ms
- Vibration load: 5 g, 10 Hz to 150 Hz
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Dimensions (H x L x W): 84mm x 217mm x 62mm
- Weight: 1.3 kg
Key Features
- 3D triangulation technology
- Programmable with SICK algorithm API HALCON
- Pre-calibrated for immediate use
- Integrated red laser illumination (660 nm ± 7 nm)
- Laser class 2 compliant with EN 60825-1 and FDA requirements
- Working range from 141 mm to 541 mm
- Example field of view 270 mm x 100 mm
- High scan/frame rate of 5,000 3D profiles per second
- Data points per profile: 1,536
- Height resolution between 40 µm and 280 µm
- 3D profile resolution of 0.215 mm per pixel
- Ethernet and serial communication interfaces
- IP67 rated enclosure for robust protection
- Anodized aluminum housing with PMMA window
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor setup and electrical safety standards.
Applications
- Detecting standard objects
- Level measuring
- Dimension, contour and volume measuring
- Number measuring
- Monitoring and controlling quality
- 3D position determination
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation with power consumption ≤ 11 W
- Durable IP67 rated housing reduces need for frequent replacements
- Pre-calibrated design minimizes setup time and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms and duration.
Available Now
The SICK V3T12P-MR32A8 3D Triangulation Sensor is available for immediate purchase, ideal for industrial automation, quality control, and measurement applications.
