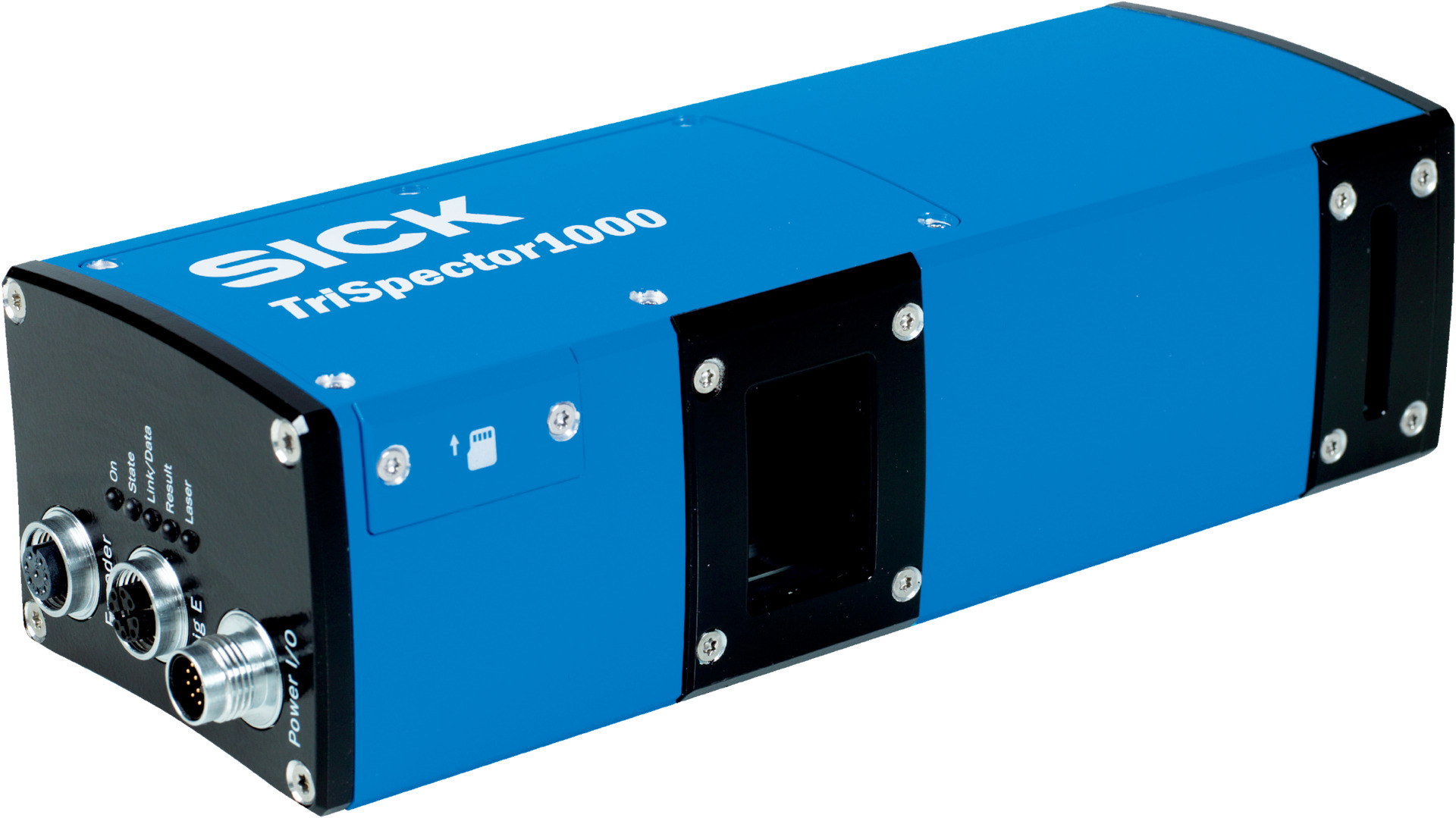

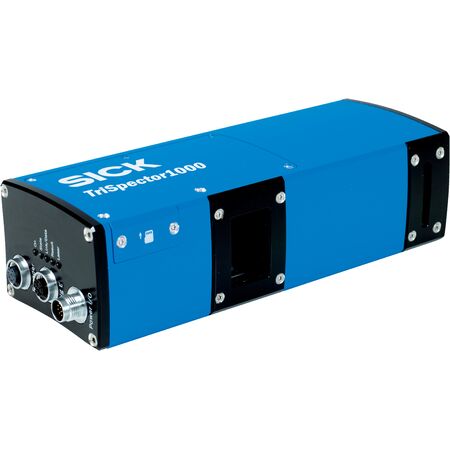

3D Triangulation Sensor | Integrated Red Laser | 5,000 Profiles/s | IP67 Rated | by SICK
The 3D Triangulation Sensor is designed for precise 3D position determination and volume measurement, featuring advanced 3D triangulation technology and an integrated red laser for accurate readings. With a high scan rate of 5,000 profiles per second and an IP67 rated enclosure, this sensor is perfect for industrial automation and quality control applications, ensuring durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 3D triangulation
- Working range: 141 mm to 541 mm
- Field of view: 270 mm x 100 mm
- Illumination: Integrated red laser, 660 nm ± 7 nm
- Laser class: 2 (EN 60825-1:2014+A11:2021; IEC 60825-1:2014)
- Width at minimum operating distance: 90 mm
- Width at maximum operating distance: 330 mm
- Maximum height range: 400 mm
- Imaging angle: 65°
- Scan/frame rate: 5,000 3D profiles/s
- Maximum number of profiles: 2,500 per image
- Data points per profile: 1,536
- Height resolution: 40 µm to 280 µm
- 3D profile resolution: 0.215 mm/px
- Connection types: M12 connectors (12-pin male, 8-pin socket, 8-pin female)
- Supply voltage: 24 V DC ± 20%
- Power consumption: ≤ 11 W
- Current consumption: < 400 mA without output load
- Enclosure rating: IP67
- Protection class: III
- Housing material: Anodized aluminum
- Window material: Glass
- Digital inputs: 3 non-isolated
- Digital outputs: 4 non-isolated
- Encoder interface: RS-422 / TTL
- Maximum encoder frequency: 300 kHz
- Electromagnetic compatibility: EN 61000-6-2:2005 / EN 61000-6-3:2007
- Shock load: 15 g / 6 ms
- Vibration load: 5 g, 10 Hz to 150 Hz
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Dimensions (H x L x W): 84mm x 217mm x 62mm
- Weight: 1.3 kg
Key Features
- 3D triangulation technology
- Configurable and pre-calibrated
- Integrated red laser illumination (660 nm)
- Working range from 141 mm to 541 mm
- High scan/frame rate of 5,000 3D profiles per second
- IP67 rated enclosure for robust protection
- Multiple interfaces including Ethernet, RS-232, RS-422, and TTL
- Housing made of anodized aluminum with glass window
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper configuration and compliance with safety standards.
Applications
- 3D position determination
- Detecting standard objects and levels
- Measuring dimension, contour, and volume
- Quality monitoring and controlling
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation with low power consumption (≤ 11 W)
- Durable IP67 rated housing reduces need for frequent replacements
- Pre-calibrated design minimizes setup time and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK V3T12S-MR32A7 3D Triangulation Sensor is available for immediate purchase, ideal for industrial automation and quality control applications.
