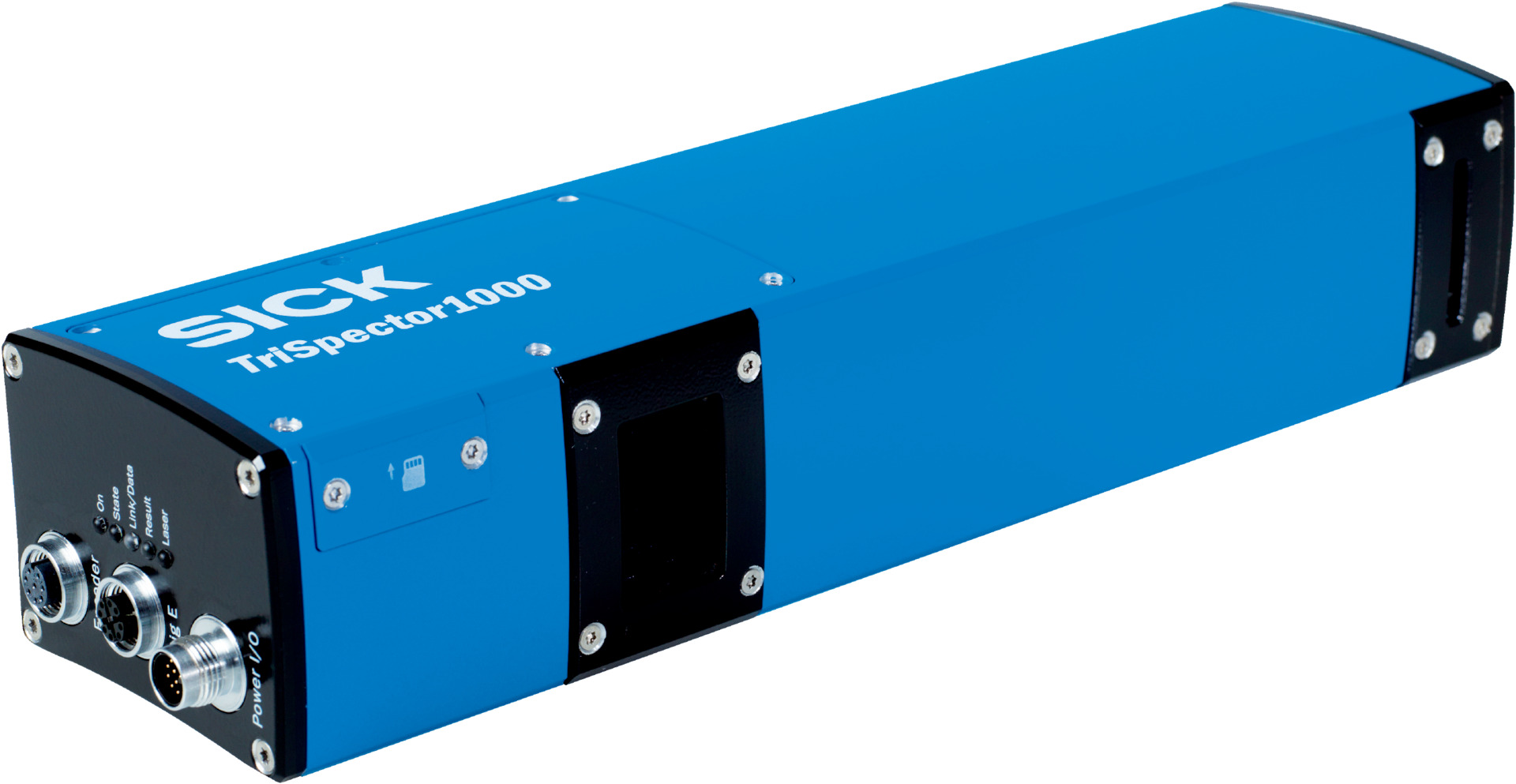

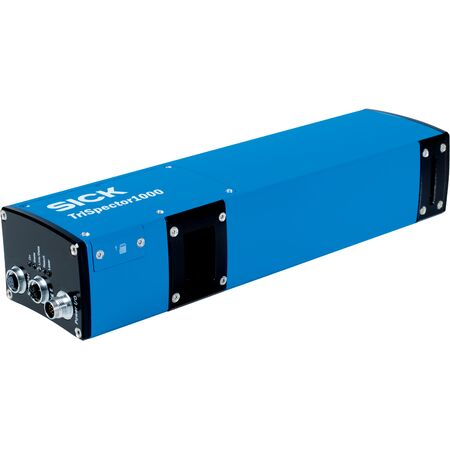

3D Triangulation Sensor | Integrated Red Laser | 5,000 Profiles/Second | IP67 Rated | by SICK
The 3D Triangulation Sensor V3T13S-MR62A7 features advanced 3D triangulation technology with an integrated red laser for precise measurements. With a working range of 291 mm to 1,091 mm and a high scan rate of 5,000 profiles per second, it's perfect for applications in industrial automation and quality control. Built for durability with an IP67 rating, this sensor ensures reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 3D triangulation
- Working range: 291 mm to 1,091 mm
- Field of view: 540 mm x 200 mm
- Illumination: Integrated red laser, 660 nm ±7 nm
- Laser class: 2 (complies with EN 60825-1:2014+A11:2021 and FDA requirements)
- Scan/frame rate: 5,000 3D profiles per second
- Maximum profiles per image: 2,500
- Data points per profile: 1,536
- Height resolution: 80 µm to 670 µm
- 3D profile resolution: 0.43 mm/px
- Connection types: M12 12-pin male (voltage supply, I/O), M12 8-pin socket (Gigabit Ethernet), M12 8-pin female (encoder)
- Supply voltage: 24 V DC ±20%
- Power consumption: ≤ 11 W
- Current consumption: < 400 mA without output load
- Enclosure rating: IP67
- Protection class: III
- Housing material: Anodized aluminum
- Window material: Glass
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Electromagnetic compatibility: EN 61000-6-2:2005 / EN 61000-6-3:2007
- Shock load: 15 g / 6 ms
- Vibration load: 5 g, 10 Hz to 150 Hz
- Dimensions (H x L x W): 84mm x 307mm x 62mm
- Weight: 1.7 kg
Key Features
- 3D triangulation technology
- Configurable and pre-calibrated
- Integrated red laser illumination (660 nm, ±7 nm)
- Working range from 291 mm to 1,091 mm
- Example field of view: 540 mm x 200 mm
- High scan/frame rate of 5,000 3D profiles per second
- Maximum 2,500 profiles per image
- Height resolution between 80 µm and 670 µm
- IP67 rated enclosure for robust protection
- Multiple connection types including M12 connectors and Gigabit Ethernet
- Supports Ethernet TCP/IP and serial RS-232/RS-422 interfaces
- Operating temperature range 0 °C to +50 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician familiar with 3D sensor systems and electrical safety standards to ensure proper configuration and compliance with IP67 protection.
Applications
- Detecting standard objects
- Level measuring
- Dimension, contour and volume measuring
- Number monitoring and controlling
- Quality monitoring
- 3D position determination
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Integrated laser illumination reduces energy consumption compared to traditional lighting.
- Durable anodized aluminum housing extends product lifespan, reducing waste.
Warranty Information
Warranty details available upon request from SICK; typically includes coverage against manufacturing defects.
Available Now
The SICK V3T13S-MR62A7 3D Triangulation Sensor is available for immediate purchase, ideal for industrial automation, quality control, and precise measurement applications.
