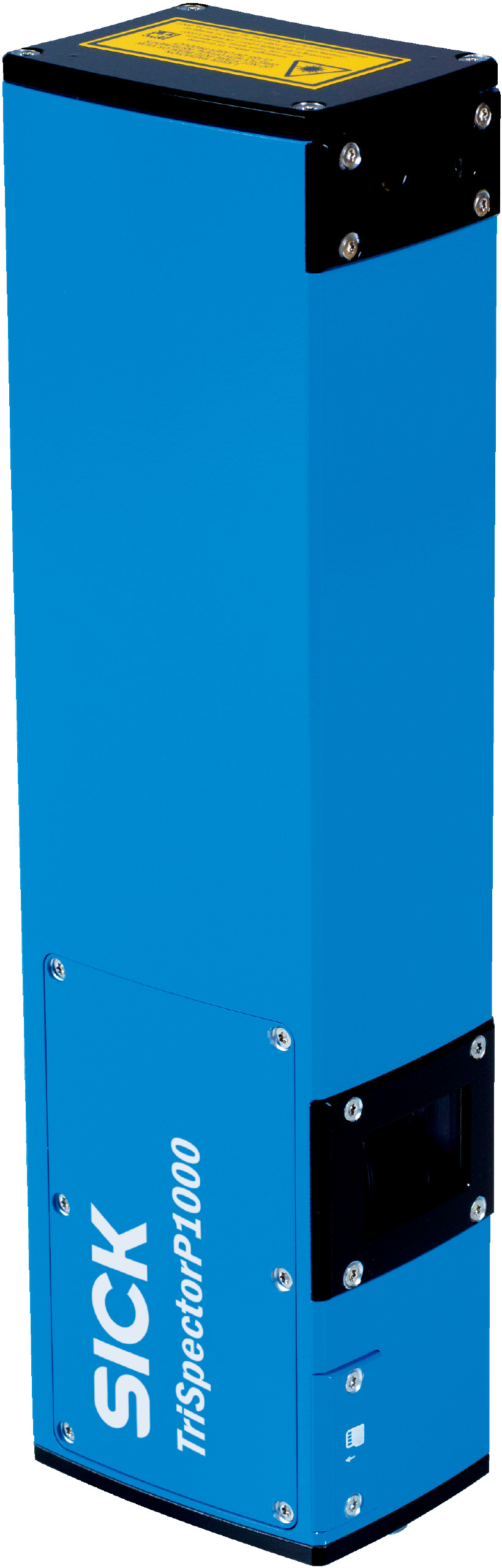

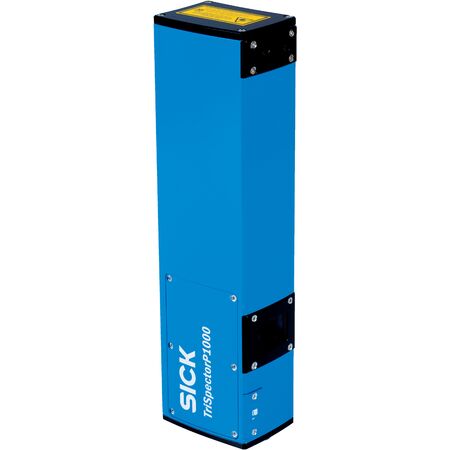

3D Triangulation Sensor | Integrated Red Laser | High Scan Rate | IP67 Rated | by SICK
The 3D Triangulation Sensor is designed for precision measurement and quality control in industrial applications. With integrated red laser illumination and a wide working range of 291 mm to 1,091 mm, it delivers high scan rates of 5,000 profiles per second. Built for durability with an IP67 rated anodized aluminum housing, this sensor is perfect for detecting standard objects, level measuring, and 3D position determination.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 3D triangulation
- Working range: 291 mm to 1,091 mm
- Field of view example: 540 mm x 200 mm
- Illumination: Integrated red laser, 660 nm ±7 nm
- Laser class: 2 (EN 60825-1:2014+A11:2021; IEC 60825-1:2014)
- Width at minimum operating distance: 180 mm
- Width at maximum operating distance: 660 mm
- Maximum height range: 800 mm
- Imaging angle: 67°
- Scan/frame rate: 5,000 3D profiles/s
- Maximum number of profiles per image: 2,500
- Data points per profile: 1,536
- Height resolution: 80 µm to 670 µm
- 3D profile resolution: 0.43 mm/px
- Connection types: M12 connectors (12-pin male, 8-pin socket, 8-pin female)
- Supply voltage: 24 V DC ±20%
- Power consumption: ≤ 11 W
- Current consumption: < 400 mA without output load
- Enclosure rating: IP67
- Protection class: III
- Housing material: Anodized aluminum
- Window material: PMMA
- Data transmission rate: ≤ 1,000 Mbit/s
- Digital inputs: 3
- Configurable outputs: 4
- Encoder interface: RS-422 / TTL
- Maximum encoder frequency: 300 kHz
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- EMC: EN 61000-6-2:2005 / EN 61000-6-3:2007
- Shock load: 15 g / 6 ms
- Vibration load: 5 g, 10 Hz to 150 Hz
- Dimensions (H x L x W): 84mm x 307mm x 62mm
- Weight: 1.7 kg
Key Features
- 3D triangulation technology
- Programmable with SICK algorithm API HALCON
- Pre-calibrated for immediate use
- Integrated red laser illumination (660 nm, ±7 nm)
- Laser class 2 compliant with EN and IEC standards
- Wide working range from 291 mm to 1,091 mm
- High scan/frame rate of 5,000 3D profiles per second
- Data transmission via Ethernet and Serial interfaces
- Robust IP67 rated anodized aluminum housing
- Supports Ethernet TCP/IP, FTP, HTTP protocols
- Configurable digital inputs and outputs
- Web server operator interface and SICK AppStudio configuration software
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial sensor setup and electrical safety standards to ensure optimal performance and compliance.
Applications
- Detecting standard objects
- Level measuring
- Dimension, contour and volume measuring
- Number measuring
- Quality monitoring and controlling
- 3D position determination
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption (≤ 11 W)
- Durable anodized aluminum housing extends product lifespan reducing waste
- Complies with China-RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK V3T13P-MR62A8 3D Triangulation Sensor is available for immediate purchase, ideal for industrial automation, quality control, and precise measurement applications.
