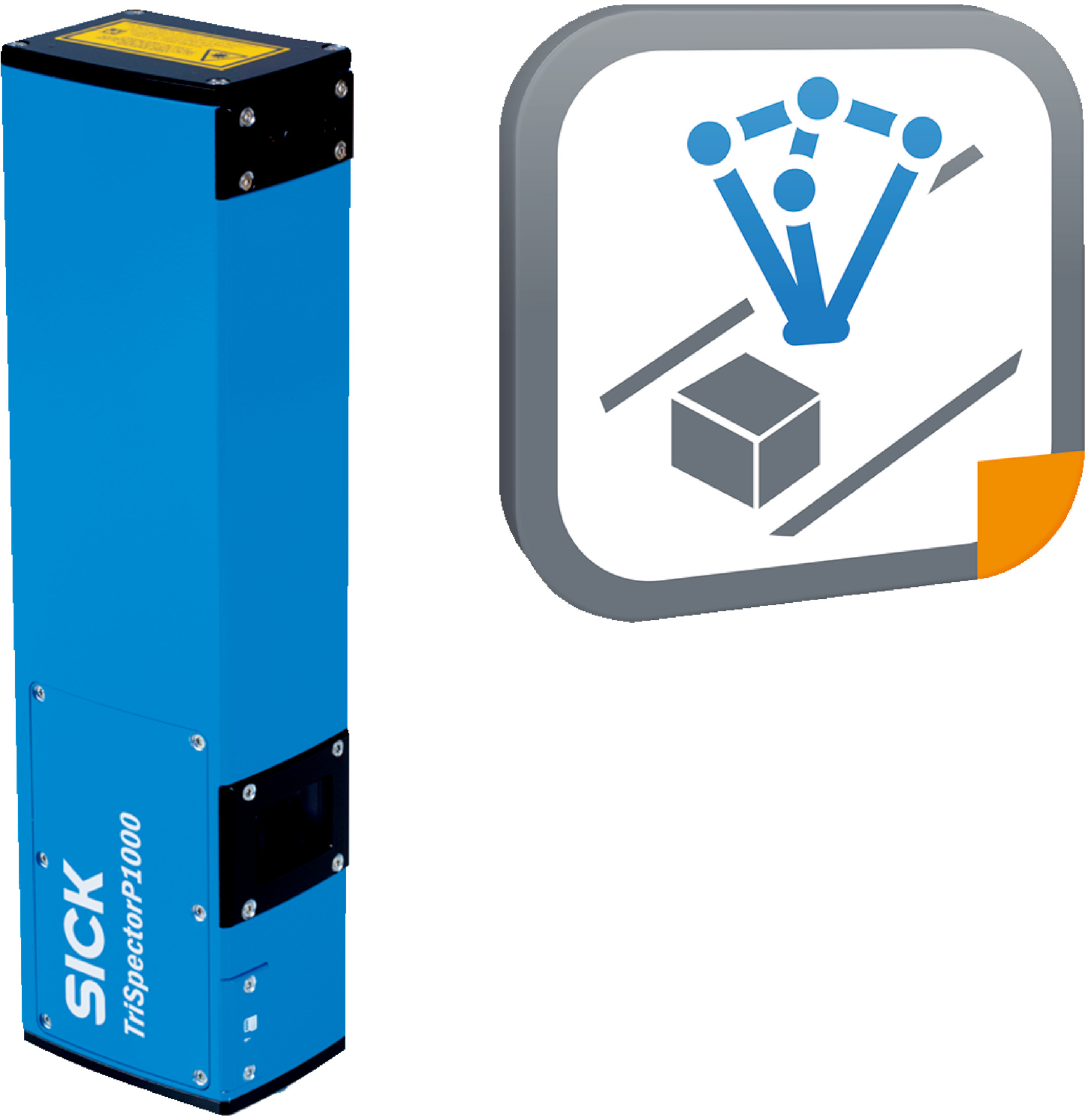

3D Triangulation Sensor | Integrated Red Laser | IP67 Rated | by SICK
The 3D Triangulation Sensor is designed for precise measurement in industrial automation and robotics, featuring advanced 3D triangulation technology and an integrated red laser for accurate data capture. With a wide working range from 291 mm to 1,091 mm and a high scan rate of 5,000 profiles per second, this sensor is perfect for quality control and inspection applications, ensuring efficiency and reliability in your operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 3D triangulation
- Working range: 291 mm to 1,091 mm
- Field of view: 540 mm x 200 mm
- Illumination: Integrated red laser, 660 nm ± 7 nm
- Laser class: 2 (EN 60825-1:2014+A11:2021; IEC 60825-1:2014)
- Width at minimum operating distance: 180 mm
- Width at maximum operating distance: 660 mm
- Maximum height range: 800 mm
- Imaging angle: 67°
- Scan/frame rate: 5,000 3D profiles/s
- Maximum number of profiles: 2,500 per image
- Data points per profile: 1,536
- Height resolution: 80 µm to 670 µm
- 3D profile resolution: 0.43 mm/px
- Connection types: M12 12-pin male (voltage supply, I/O), M12 8-pin socket (Gigabit Ethernet), M12 8-pin female (encoder)
- Supply voltage: 24 V DC ± 20%
- Power consumption: ≤ 11 W
- Current consumption: < 400 mA without output load
- Enclosure rating: IP67
- Protection class: III
- Housing material: Anodized aluminum
- Window material: PMMA
- Data transmission rate: ≤ 1,000 Mbit/s
- Digital inputs: 3
- Configurable outputs: 4
- Encoder interface: RS-422 / TTL
- Maximum encoder frequency: 300 kHz
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- EMC: EN 61000-6-2:2005 / EN 61000-6-3:2007
- Shock load: 15 g / 6 ms
- Vibration load: 5 g, 10 Hz to 150 Hz
- Dimensions (H x L x W): 84mm x 307mm x 62mm
- Weight: 1.7 kg
Key Features
- 3D triangulation technology for precise measurement
- Programmable with SICK algorithm API and HALCON 3D Belt Pick SensorApp
- Pre-calibrated for immediate use
- Integrated red laser illumination (660 nm) with laser class 2
- Wide working range from 291 mm to 1,091 mm
- High scan/frame rate of 5,000 3D profiles per second
- IP67 rated anodized aluminum housing for robust industrial use
- Multiple interfaces including Ethernet (TCP/IP), Serial (RS-232, RS-422), and encoder interface
- Configurable digital inputs and outputs
- Supports web server operator interface and SICK AppStudio configuration software
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards to ensure proper setup and compliance.
Applications
- Industrial automation and robotics
- 3D object detection and measurement
- Quality control and inspection
- Material handling and logistics
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient operation with power consumption ≤ 11 W
- Durable IP67 rated housing reduces need for frequent replacements
- Supports precise measurement reducing material waste in manufacturing
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

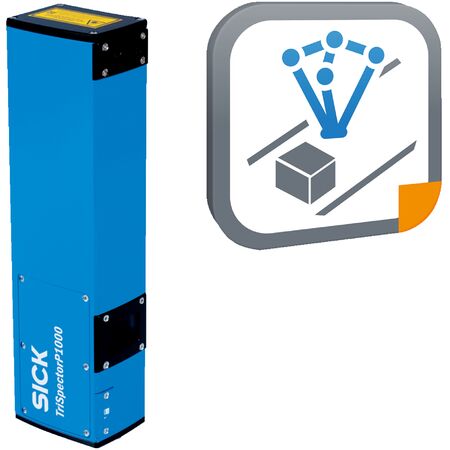

The SICK V3T13P-MR62A8S50 3D Triangulation Sensor is available for immediate purchase, ideal for industrial automation, robotics, and precise 3D measurement applications.
