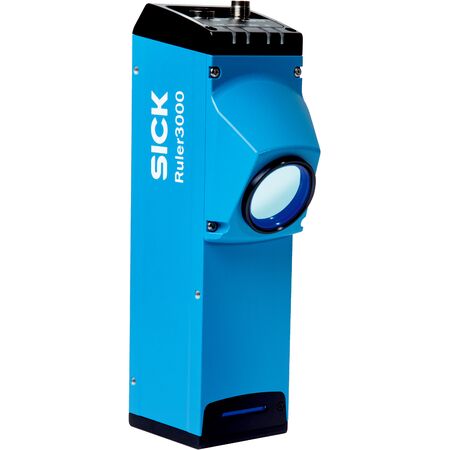

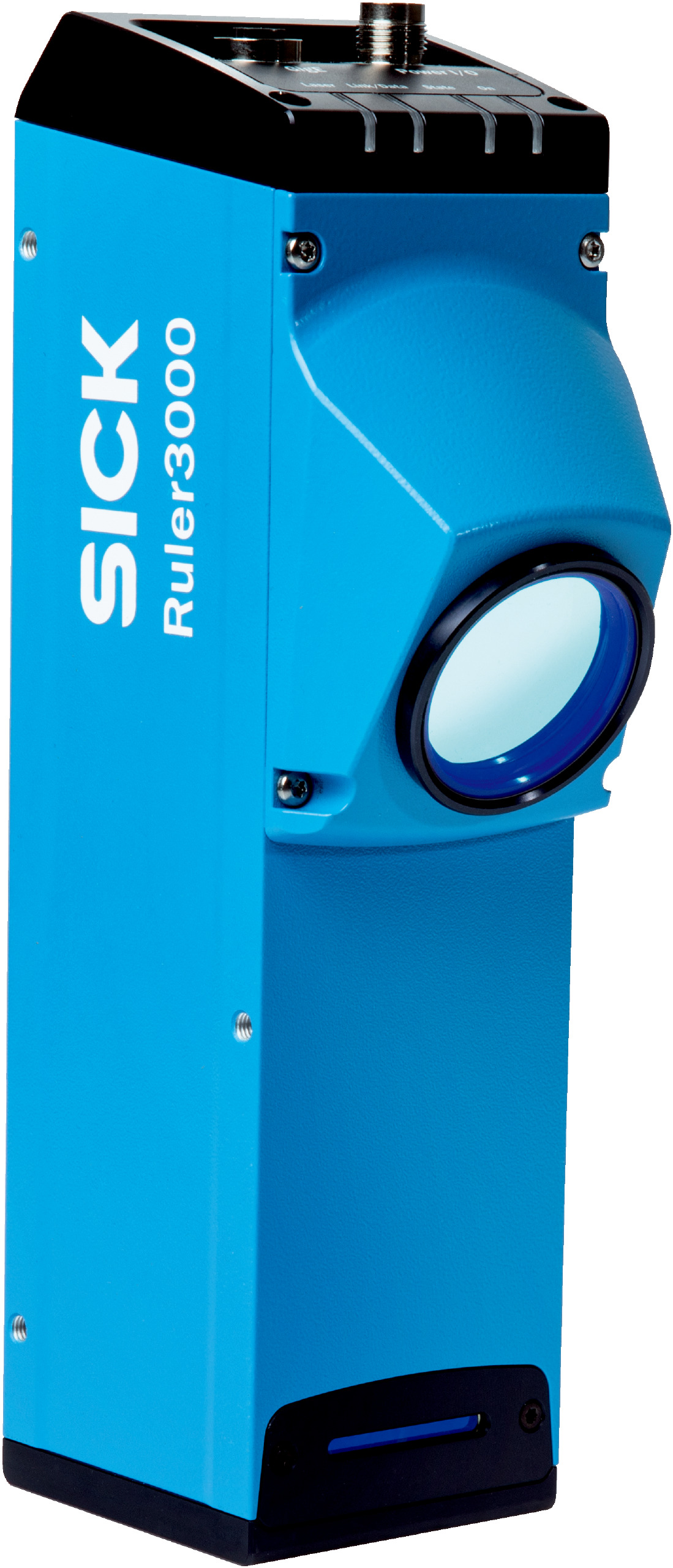

3D Triangulation Sensor V3DU3-020RM21A | Global Shutter Technology | Integrated Red Laser | High-Speed Scanning | by SICK
The 3D Triangulation Sensor V3DU3-020RM21A utilizes advanced 3D triangulation technology with a global shutter for precise measurements. Ideal for industrial automation and quality control, it features integrated red laser illumination and high-speed scanning of up to 46,000 profiles per second. With an IP65 and IP67 rated enclosure, this sensor is built for robust performance in various applications, ensuring accuracy and reliability in detecting standard objects and measuring dimensions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 3D triangulation with global shutter
- Working range: 245.5 mm to 370.5 mm
- Field of view example: 190 mm x 50 mm
- Exposure mode: Linear HDR
- Illumination: Integrated red laser, 660 nm ± 15 nm, Laser class 2
- Data synchronization: Free running, encoder triggered, external triggering
- 3D measurement, scatter measurement, reflectance measurement supported
- Width at minimum operating distance: 155 mm
- Width at maximum operating distance: 220 mm
- Maximum height range: 125 mm
- Connection type: M12 connectors for voltage I/O and Gigabit Ethernet
- Supply voltage: 24 V DC ± 10%
- Power consumption: ≤ 12 W
- Enclosure rating: IP65, IP67
- Housing material: Aluminum with blue color
- Window material: Float glass, anti-reflective coated
- Image sensor: CMOS with ROCC technology, M30
- Scan/frame rate: 46,000 3D profiles/s (reduced ROI: 7,000 3D profiles/s full format)
- Data points per profile: 3,200
- Repeatability: 3.9 µm
- Typical resolution: Z resolution 8 µm to 16 µm, X resolution 65 µm to 92 µm
- Interfaces: Ethernet (GigE Vision standard), UDP/IP, configurable inputs/outputs
- Operating system compatibility: Windows 10
- API: GenAPI, GenTL, SICK GenIStream
- Shock load: 15 g, 3 cycles per axis
- Vibration load: 5 g, 10 Hz to 150 Hz
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -30 °C to +70 °C
- Dimensions (H x L x W): 108mm x 245mm x 65mm
- Weight: 1.8 kg
Key Features
- 3D triangulation technology with global shutter
- Pre-calibrated for immediate use
- Integrated red laser illumination (660 nm)
- High-speed scanning with up to 46,000 3D profiles per second
- Ambient light suppression
- Scheimpflug adapter integrated
- IP65 and IP67 rated enclosure for robust protection
- Multiple data synchronization modes including free running and external triggering
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper setup, calibration, and compliance with electrical standards.
Applications
- Detecting standard objects
- Level measuring
- Dimension, contour and volume measurement
- Quality monitoring and controlling
- 3D position determination
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Integrated illumination reduces the need for external lighting, lowering energy consumption
- High precision reduces waste by improving quality control accuracy
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK V3DU3-020RM21A 3D Triangulation Sensor is available for immediate purchase, ideal for industrial automation, quality control, and precise measurement applications.
