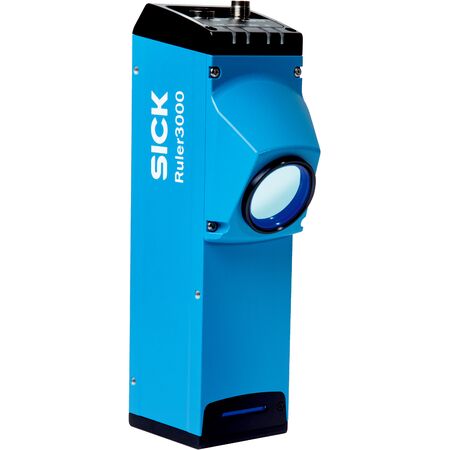

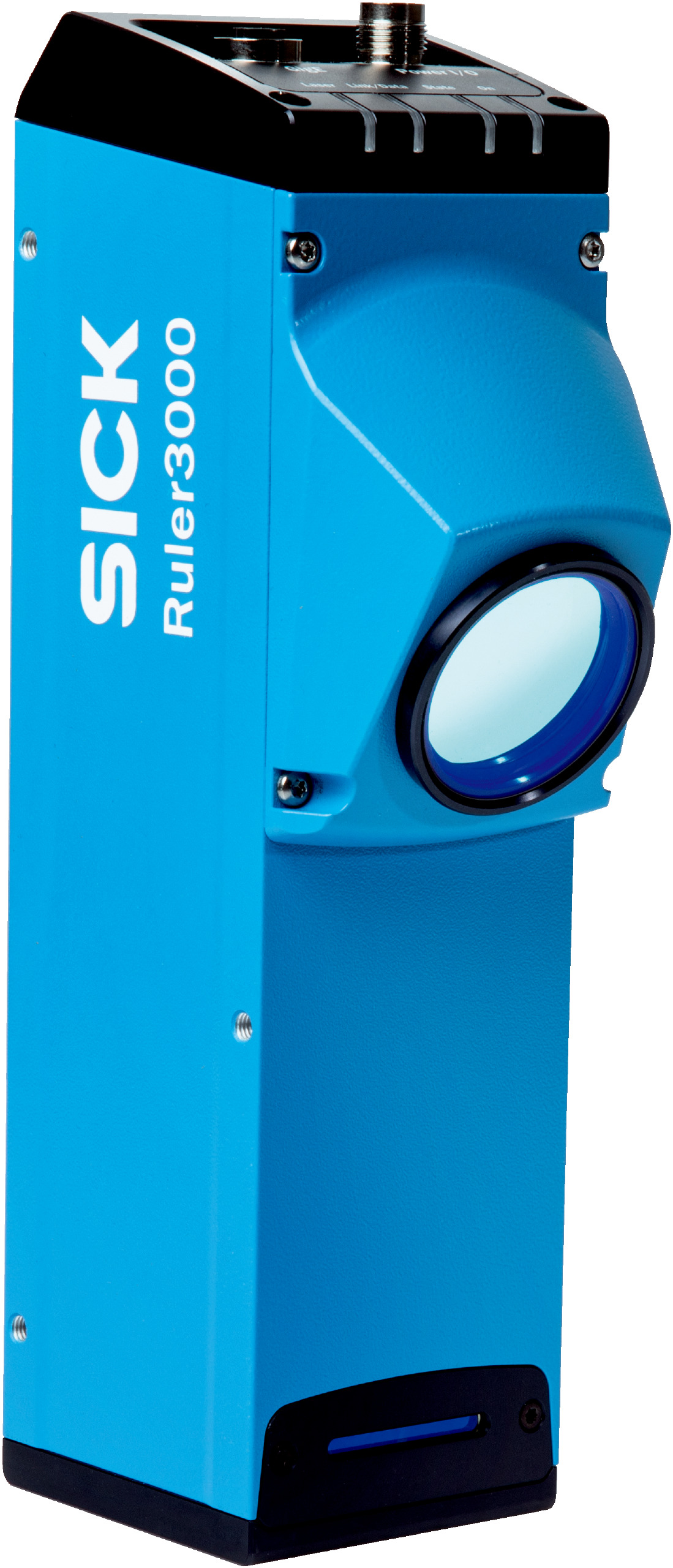

3D Triangulation Sensor V3DU3-020RM25A | Global Shutter Technology | Integrated Red Laser | High Scan Rate | by SICK
The 3D Triangulation Sensor V3DU3-020RM25A utilizes advanced 3D triangulation technology with a global shutter for precise measurements. Ideal for industrial automation and quality control, it features integrated red laser illumination and a high scan rate of up to 46,000 profiles per second. With robust IP65 and IP67 ratings, this sensor is built for durability and reliability in various applications, including dimension and contour measurement.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 3D triangulation with global shutter
- Working range: 245.5 mm to 370.5 mm
- Field of view example: 190 mm x 50 mm
- Exposure mode: Linear HDR
- Illumination: Integrated red laser, 660 nm ± 15 nm
- Laser class: Class 2 (EN 60825-1:2014+A11:2021; IEC 60825-1:2014)
- Data synchronization: Free running, encoder triggered, external triggering
- 3D measurement, scatter measurement, reflectance measurement supported
- Width at minimum operating distance: 155 mm
- Width at maximum operating distance: 220 mm
- Maximum height range: 125 mm
- Connection type: M12 17-pin male connector for voltage I/O, M12 8-pin X-coded socket for Gigabit Ethernet
- Supply voltage: 24 V DC ± 10%
- Power consumption: ≤ 12 W
- Current consumption: ≤ 1.5 A
- Enclosure rating: IP65, IP67
- Housing material: Aluminum, color blue
- Window material: PMMA
- Image sensor: CMOS with ROCC technology, M30
- Scan/frame rate: 46,000 3D profiles/s (reduced ROI: 7,000 3D profiles/s full format)
- Data points per profile: 3,200
- Repeatability: 3.9 µm
- Typical resolution: Z resolution 8 µm to 16 µm, X resolution 65 µm to 92 µm
- Interfaces: Ethernet (GigE Vision standard), UDP/IP, data rate ≤ 1 Gbit/s
- Configuration software: Stream Setup
- Operating system: Windows 10
- API: GenAPI, GenTL, SICK GenIStream
- Inputs/outputs: 4 x HIGH = 10 V to 28.8 V, configurable
- Encoder interface: RS-422 5 V, 2 x HTL single-ended
- Shock load: 15 g, 3 cycles per axis
- Vibration load: 5 g, 10 Hz to 150 Hz (EN 60068-2-6)
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -30 °C to +70 °C
- Dimensions (H x L x W): 108mm x 245mm x 65mm
- Weight: 1.8 kg
Key Features
- 3D triangulation technology with global shutter
- Pre-calibrated for immediate use
- Integrated red laser illumination (660 nm)
- High scan/frame rate up to 46,000 3D profiles/s
- Ambient light suppression
- Scheimpflug adapter integrated
- IP65 and IP67 rated enclosure for robust protection
- Multiple data synchronization modes including free running and external triggering
Professional Installation Requirements
- Professional installation by a qualified technician or engineer is recommended to ensure proper setup, calibration, and compliance with electrical standards.
Applications
- Detecting standard objects
- Level measuring
- Dimension, contour and volume measurement
- Quality monitoring and controlling
- 3D position determination
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Integrated LED laser illumination reduces energy consumption compared to traditional lighting
- Robust IP65/IP67 housing extends product lifespan reducing waste
- Pre-calibrated design minimizes setup time and resource use
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
