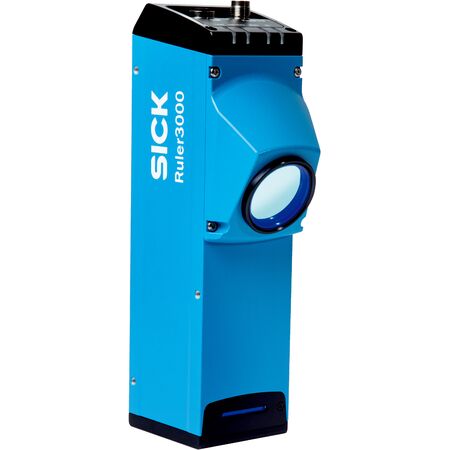

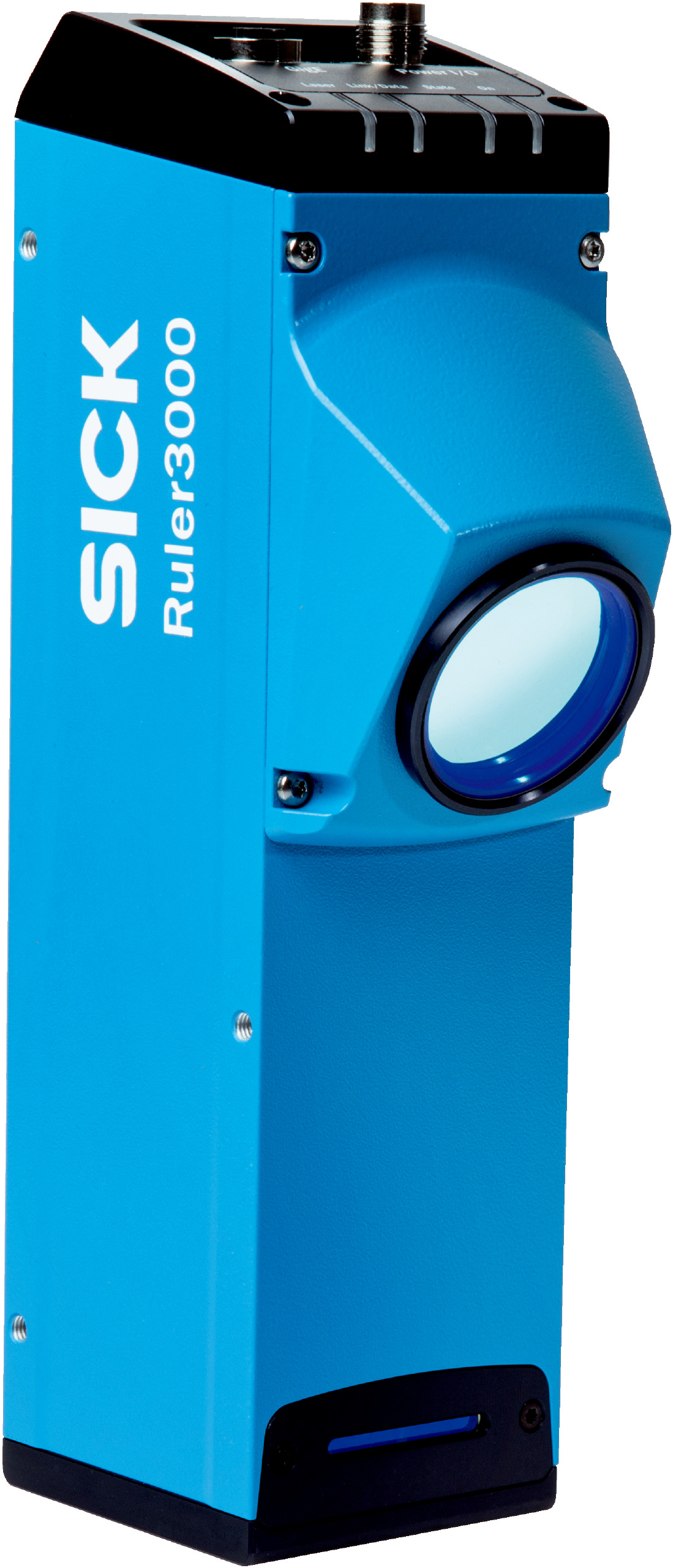

3D Triangulation Sensor V3DU3-020RR21A | Global-Shutter Technology | Integrated Red Laser | High Scan Rate | by SICK
The 3D Triangulation Sensor V3DU3-020RR21A utilizes advanced 3D triangulation technology and global-shutter capabilities for precise measurements. With a working range of 245.5 mm to 370.5 mm and integrated red laser illumination, it's perfect for applications in industrial automation, quality control, and dimension measurement. Designed for easy setup and immediate use, this sensor ensures high accuracy and repeatability, making it an essential tool for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 3D triangulation
- Shutter technology: Global-Shutter
- Working range: 245.5 mm to 370.5 mm
- Field of view example: 190 mm x 50 mm
- Exposure mode: Linear HDR
- Illumination: Integrated red laser, 660 nm ± 15 nm
- Laser class: 3R (EN 60825-1:2014+A11:2021; IEC 60825-1:2014)
- Data synchronization: Free running, encoder triggered, external triggering
- 3D, scatter, and reflectance measurement capabilities
- Ambient light suppression enabled
- Scheimpflug adapter integrated
- Connection types: M12 17-pin male connector for Voltage – I/O, M12 8-pin socket X-coded for Gigabit Ethernet
- Supply voltage: 24 V DC ± 10%
- Power consumption: ≤ 12 W
- Enclosure rating: IP65 and IP67
- Housing material: Aluminum, color blue
- Window material: Float glass, anti-reflective coated
- Image sensor: CMOS with ROCC technology, M30
- Scan/frame rate: 46,000 3D profiles/s (reduced ROI), 7,000 3D profiles/s (full format)
- Data points per profile: 3,200
- Repeatability: 3.9 µm
- Typical resolution: Z 8 µm to 16 µm, X 65 µm to 92 µm
- Interfaces: Ethernet (GigE Vision Standard), UDP/IP, data rate ≤ 1 Gbit/s
- Configuration software: Stream Setup
- Operating system: Windows 10
- API: GenAPI, GenTL, SICK GenIStream
- Inputs/outputs: 4 x HIGH = 10 V to 28.8 V, configurable
- Encoder interface: RS-422 5 V, 2 x HTL single-ended
- Shock load: 15 g, 3 cycles per axis
- Vibration load: 5 g, 10 Hz to 150 Hz (EN 60068-2-6)
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -30 °C to +70 °C
- Dimensions (H x L x W): 108mm x 245mm x 65mm
- Weight: 1.8 kg
Key Features
- 3D triangulation technology
- Streaming capability
- Pre-calibrated for immediate use
- Global-Shutter shutter technology
- Working range from 245.5 mm to 370.5 mm
- Integrated red laser illumination (660 nm ± 15 nm)
- Laser class 3R compliant with EN 60825-1 and FDA requirements
- Free running, encoder triggered, and external triggering data synchronization
- 3D, scatter, and reflectance measurement
- Ambient light suppression
- Integrated Scheimpflug adapter
- High scan/frame rate up to 46,000 3D profiles per second
- Repeatability of 3.9 µm
- Typical Z resolution 8 µm to 16 µm, X resolution 65 µm to 92 µm
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper setup, calibration, and compliance with safety standards.
Applications
- Detecting standard objects
- Level measuring
- Dimension, contour and volume measurement
- Quality monitoring and controlling
- 3D position determination
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Integrated illumination reduces the need for external lighting, lowering energy consumption.
- High precision reduces waste by improving quality control and reducing defects.
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK V3DU3-020RR21A 3D Triangulation Sensor is available for immediate purchase, ideal for industrial automation, quality control, and measurement applications.
